Mercury 200 EFI

OIL INJECTION
90-883728 JULY 2001 Page 3C-11

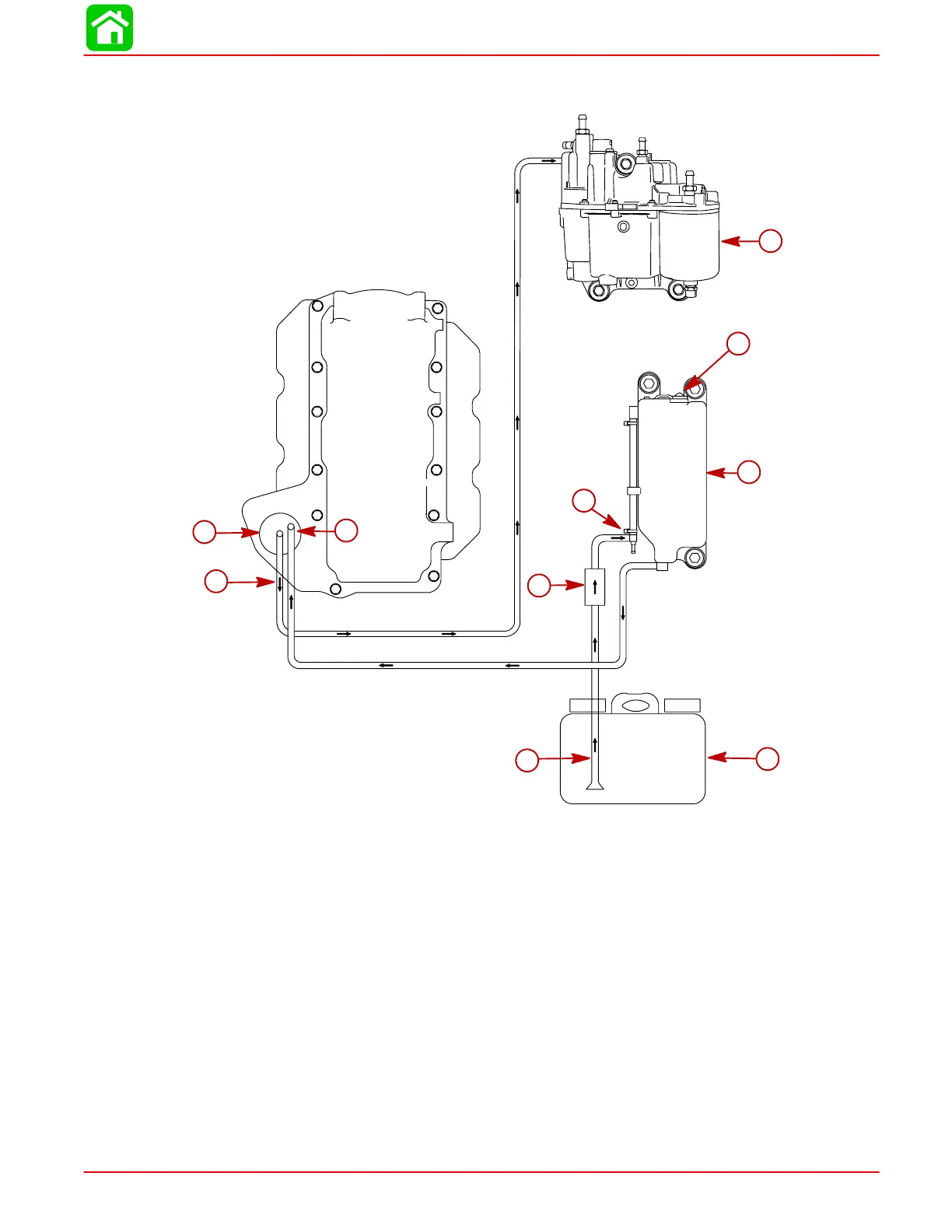

Oil Injection Flow System
e
58888
c
d
f
b
a
g
h
i
j
a-Remote Oil Tank
b-Oil Pick-up Tube
c-Filter
d-4 PSI Check Valve
e-Oil Reservoir
f-Low Oil (Float) Sensor (Inside Reser-
voir)
g-Vapor Separator Tank
h-Oil Inlet to Oil Pump
i-Oil Injection Pump
j-Oil Outlet Hose to Vapor Separator
Tank
