POWER TRIM
90-883728 JULY 2001 Page 5B-43
END CAP INSPECTION
1. Inspect seal and O-ring for cuts and abraisions. If replacement is required, install
BRUSH and SEAL KIT 828714A1.
2. Inspect bushing for wear. If bushing appears to be excessively worn – grooves,
scratches, etc. – install END FRAME ASSEMBLY (COMPLETE) 828715A1.

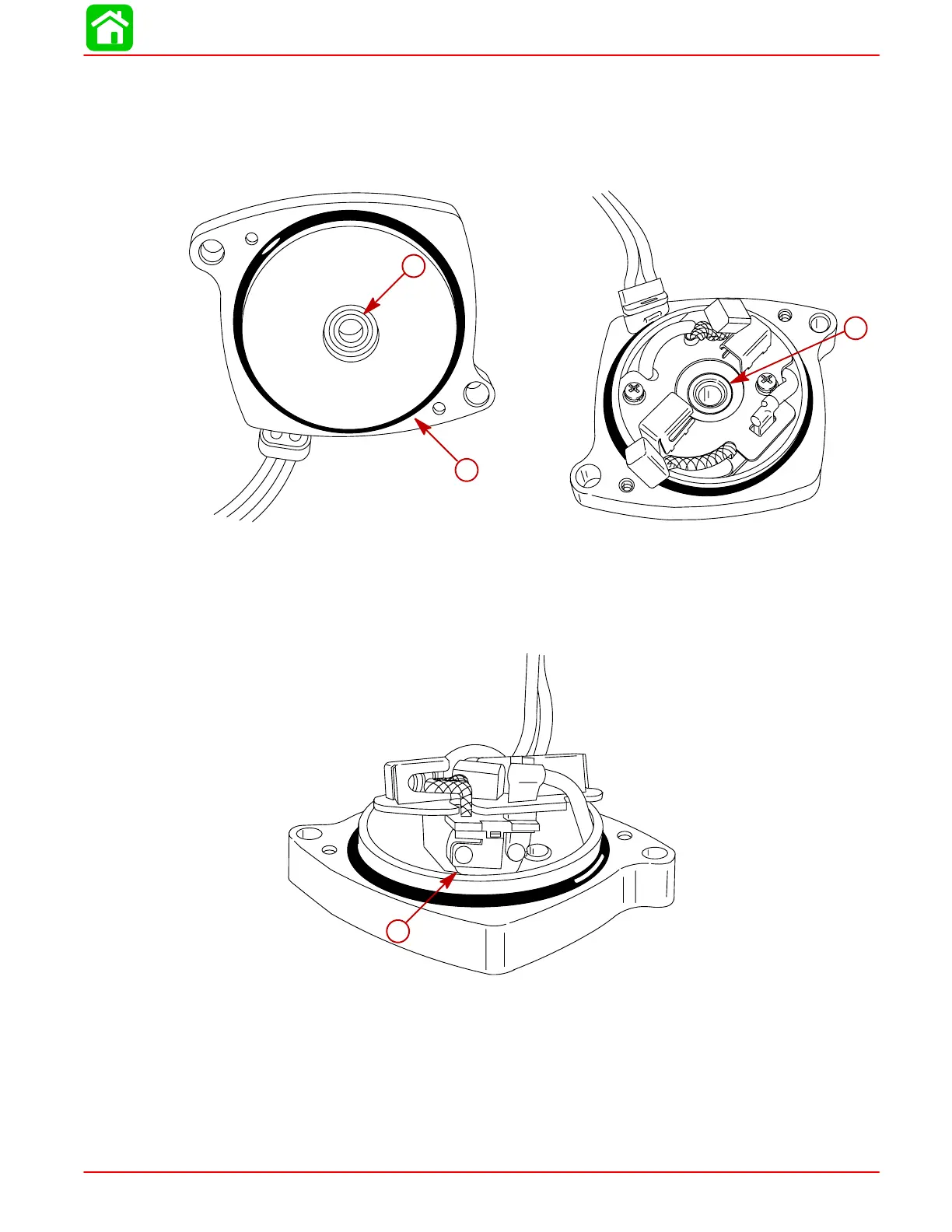

53785
c
53783
a
b
a
b
a-Seal (Apply 2-4-C with Teflon to seal lips)
b-O-ring
c-Bushing
3. If trim motor is overheated, a thermoswitch located under brush card will open. Nor-
mally, this switch will reset itself within 1 minute.
53781
a
a
a-Thermoswitch
