Mercury 200 EFI

CHARGING & STARTING SYSTEM
Page 2B-46 90-883728 JULY 2001

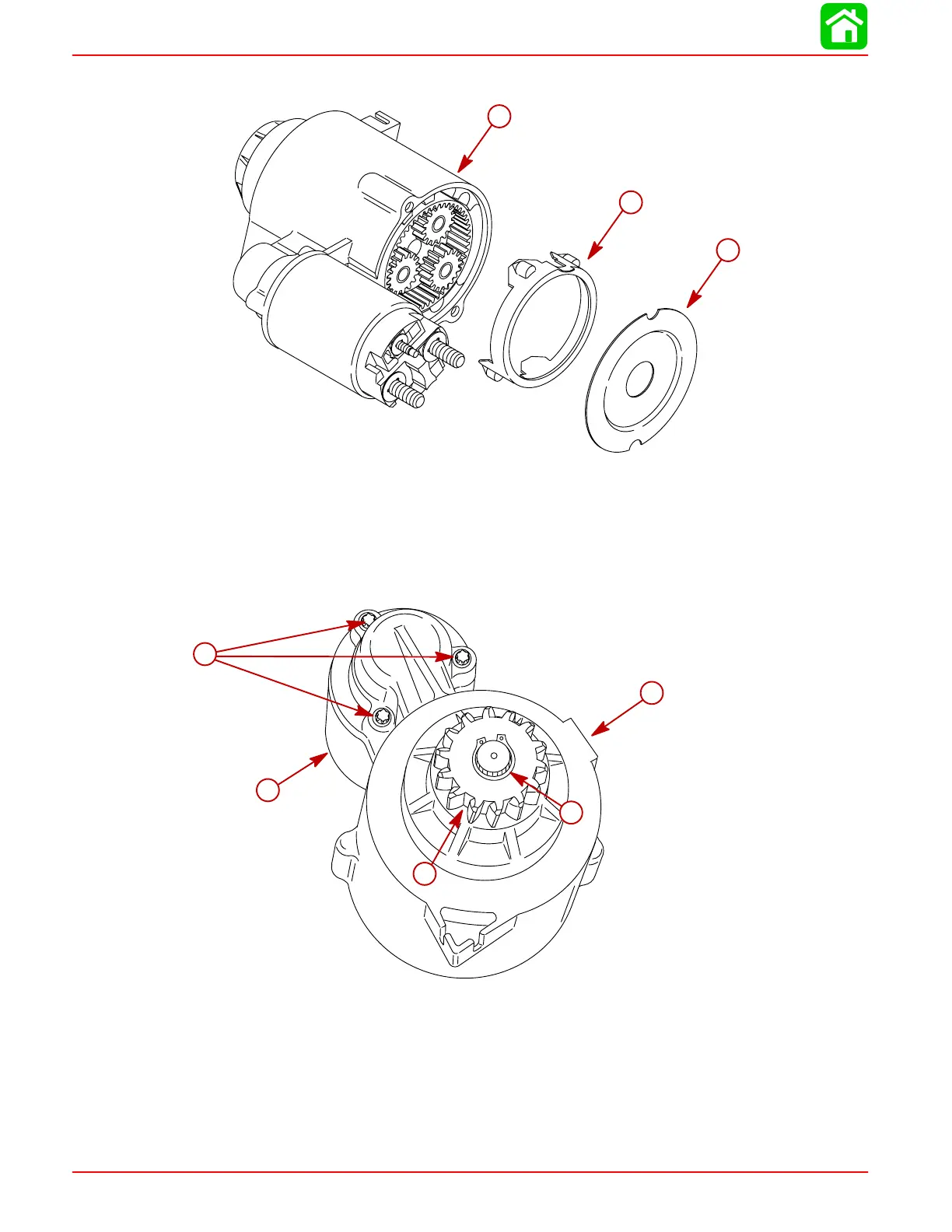

3. Remove shield and cushion from drive housing.
58432
a
b
c
a-Shield
b-Cushion
c-Drive Housing
4. Remove 3 screws retaining starter solenoid. Remove solenoid from drive housing.
5. Remove snap ring and gear from starter shaft.
58436
c
a
b
d
e
a-Drive Housing
b-Starter Solenoid
c-Screws (3) [ Internal
Torx– Snap On E6
Socket]
d-Snap Ring
e-Pinion Gear
