FUEL PUMP
Page 3A-12 90-883728 JULY 2001

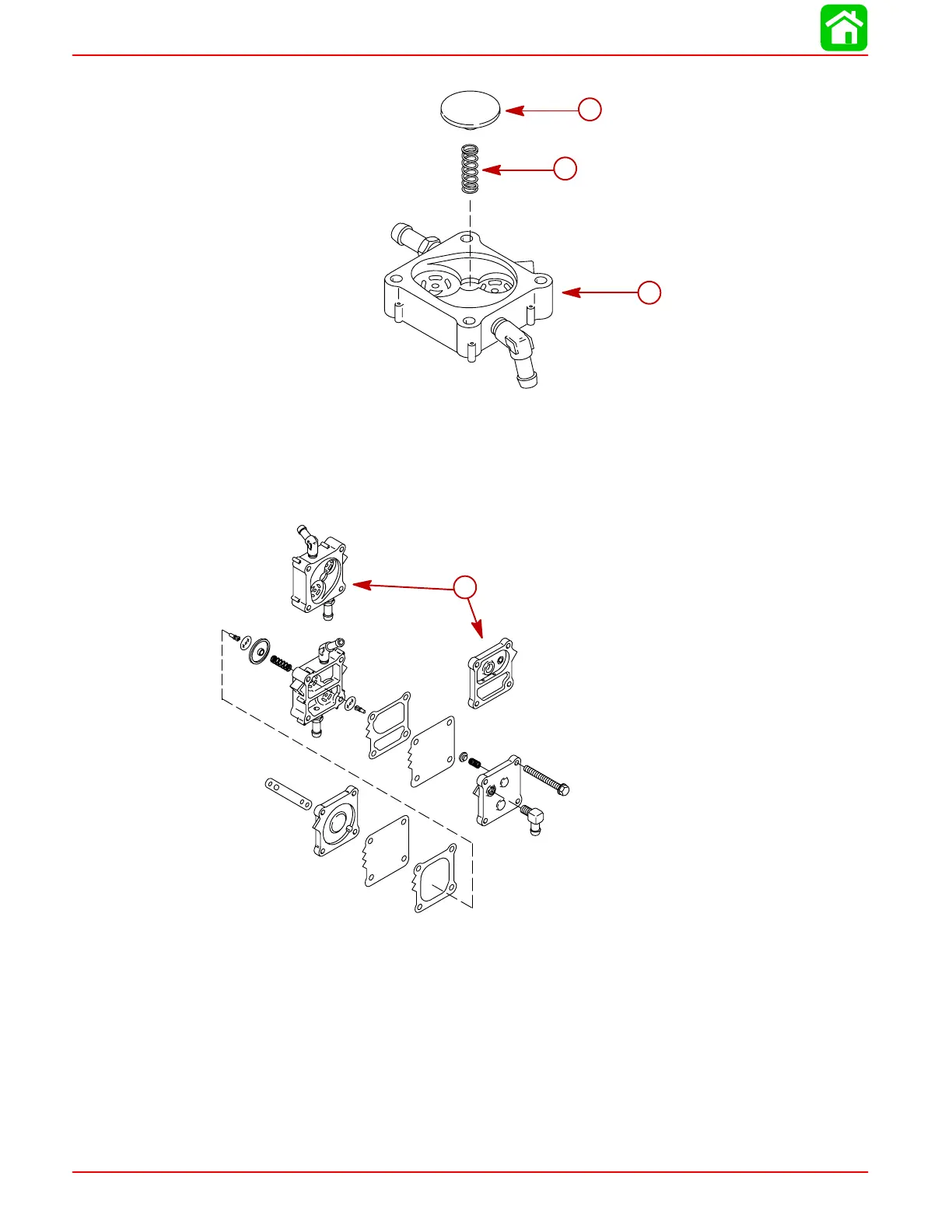

5. Place boost spring into pump body and place cap onto boost spring.
50161
b
a
c
a-Boost Spring
b-Pump Body
c-Cap
6. Assemble remainder of components as shown and install retaining screws thru to
align.
58876
a
a-Reverse View of Pump Body
INSTALLATION
1. Install pump onto engine. Torque to 55 Ib. in. (6 N·m).
2. Install hoses onto proper fittings and secure with sta-straps.
3. Run engine and check for leaks.
