FUEL INJECTION
Page 3B-40
90-883728 JUL
Y 2001
3.

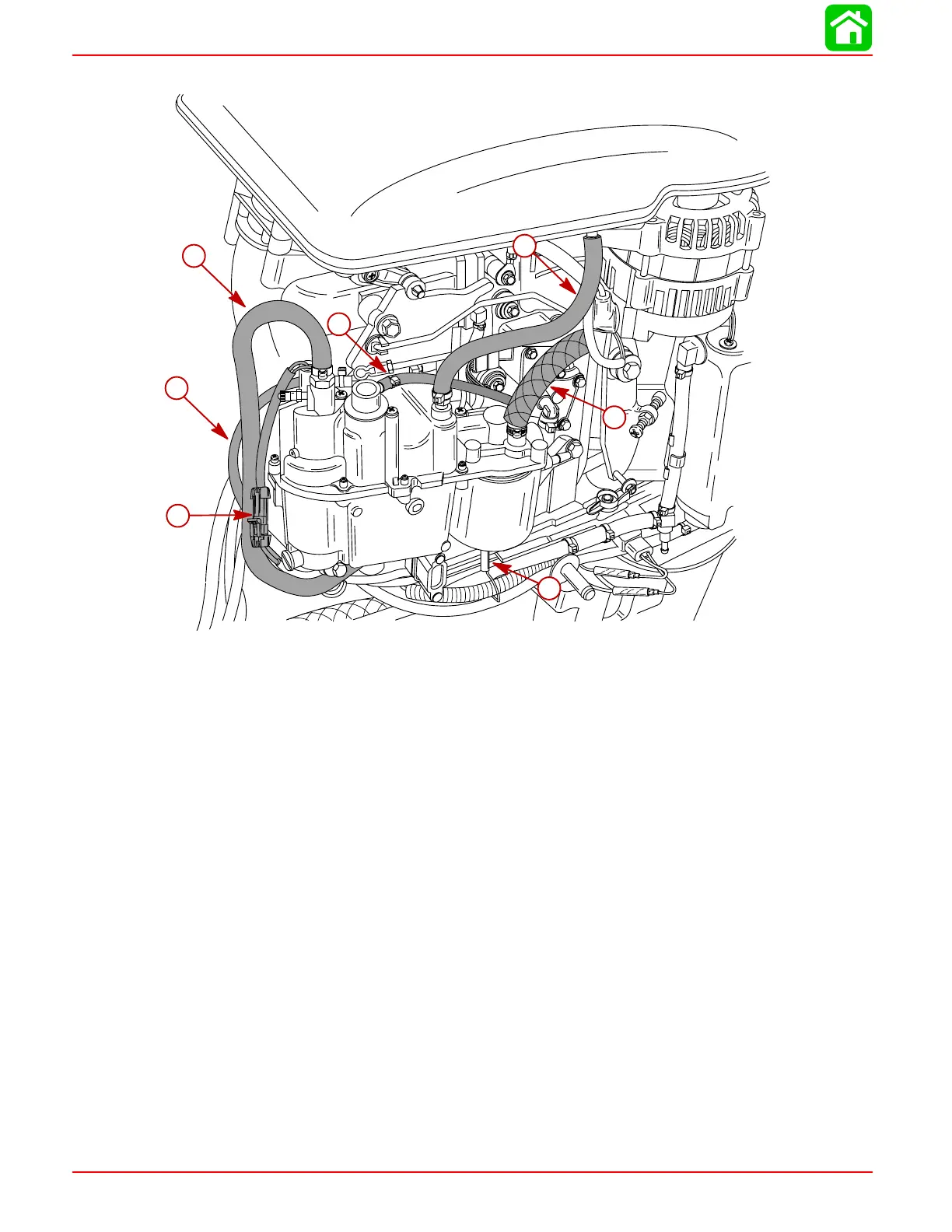

Disconnect the following hoses and connectors:
58878
a
b
c
d
e
f
g
a-
VST V
ent Hose
b-
Fuel Pressure Regulator V
ent Hose
c-
VST Output Fuel Hose
d-
VST Oil Input Hose
e-
VST Electric Fuel Pump Harness Connector
f-
W
ater Sensor Bullet Connector
g-
Fuel/W
ater Separator Input Fuel Hose
271
273
