FUEL INJECTION
90-883728 JULY 2001 Page 3B-51

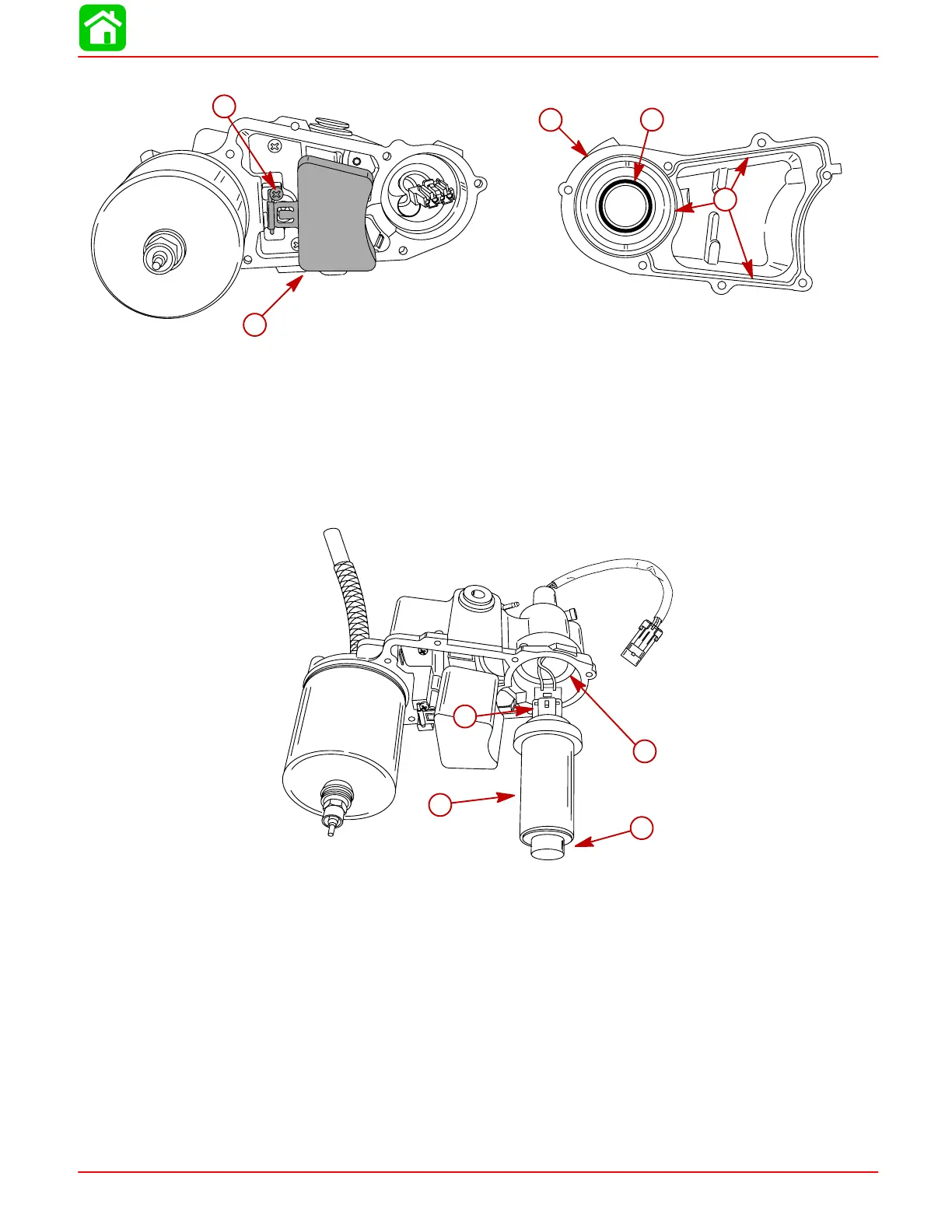

3. Apply 2-4-C with Teflon to lips of seal in separator cover.
58787
b
a
c
d
58783
e
a-Screw [Torque to 10 lb. in. (1.0 Nm)]
b-Float
c-Gasket
d-Sealing Bead
e-Seal (Seal shoulder faces OUT)
4. Connect electrical harness to fuel pump. Inspect fuel pump filter screen for debris. Re-
move screen and clean as required.
5. Seat fuel pump and harness into separator cover being careful not to pinch harness.
58786
a
b
c
d
a-Harness
b-Filter
c-Seal
d-Fuel Pump
To Next Page
