Mercury 200 EFI

POWER TRIM
Page 5B-24 90-883728 JULY 2001

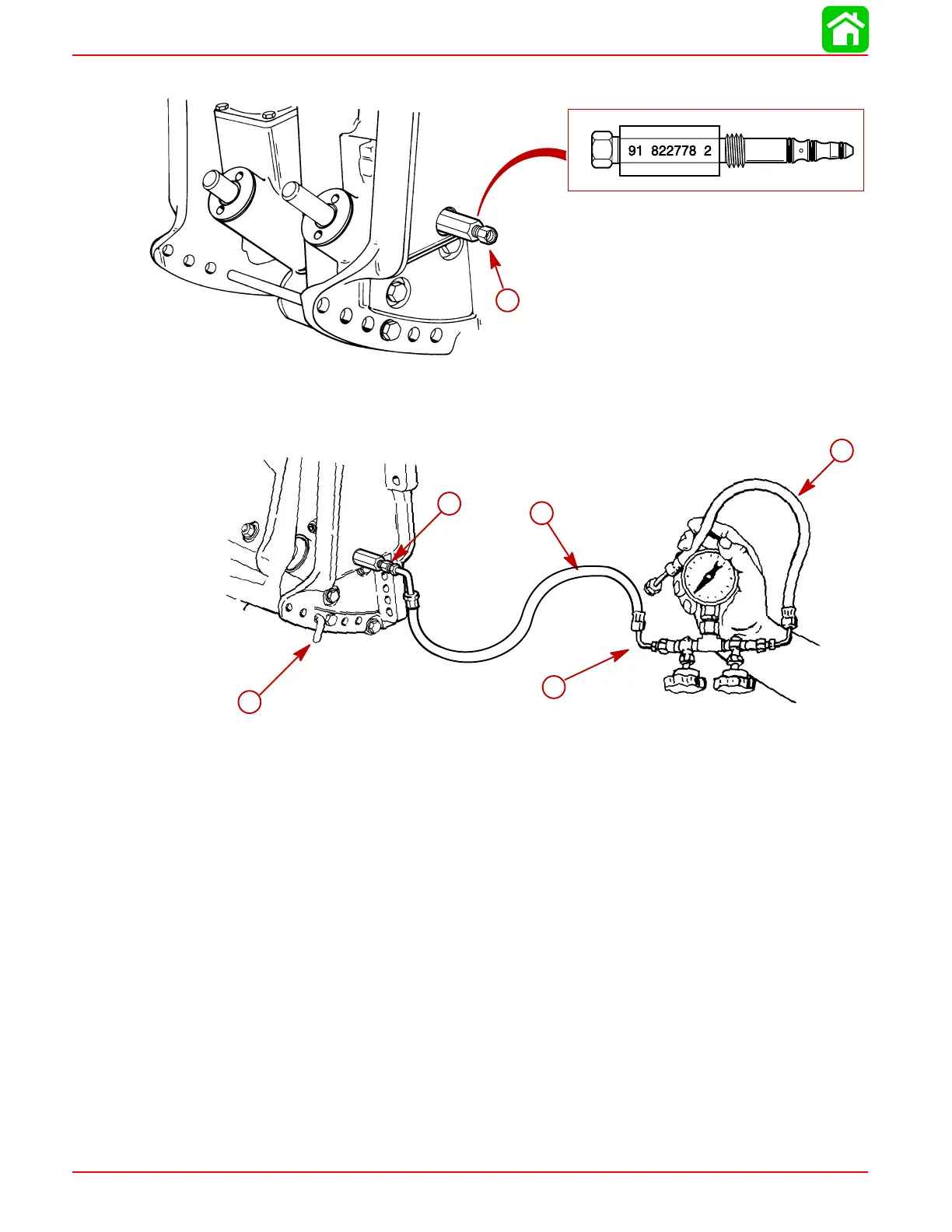

4. Install test adaptor 91-822778A2 into manual release valve hole.
54458
a
a
a-Test Adaptor (91-822778A2)
5. Thread hose from Test Gauge Kit (91-52915A6) into brass fitting on adaptor.
54459
e
b
d
c
a
a
b
c
d
e
a-Brass Fitting
b-Test Gauge Assembly
c-Tilt Pin (Position in Hole Shown)
d-Hose
e-Hose (Not Used)
6. Reinstall fill plug.
7. Disengage tilt lock lever.
