Mercury 200 EFI

RIGHT HAND NON-RATCHETING
Page 6A-4 90-883728 JULY 2001

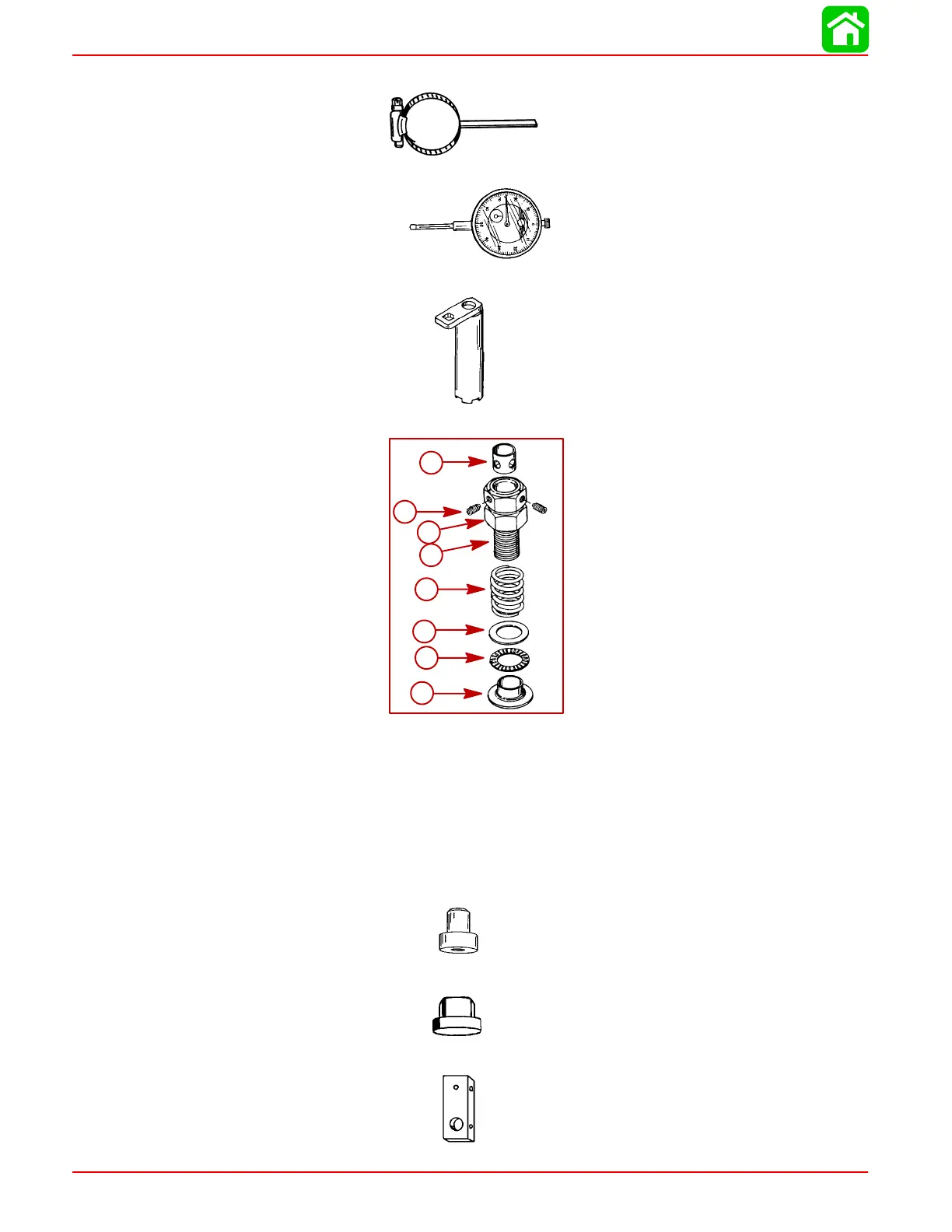

18. Backlash Indicator Rod 91-78473
19. Dial Indicator 91-58222A1
20. Bearing Retainer Tool 91-43506T
21. Bearing Preload Tool 91-14311A2
a
b
c
d
e
f
g
h
1
2
3
4
5
6
7
8
1-Adaptor (N.S.S.)
2-Bearing (N.S.S.)
3-Washer (N.S.S.)
4-Spring (24-14111)
5-Bolt (10-12580)
6-Nut (11-13953)
7-Set Screw (10-12575)
8-Sleeve (23-13946)
22. Mandrel 91-92788
23. Mandrel 91-15755
24. Dial Indicator Holder 91-89897
