RIGHT HAND NON-RATCHETING
90-883728 JULY 2001 Page 6A-29

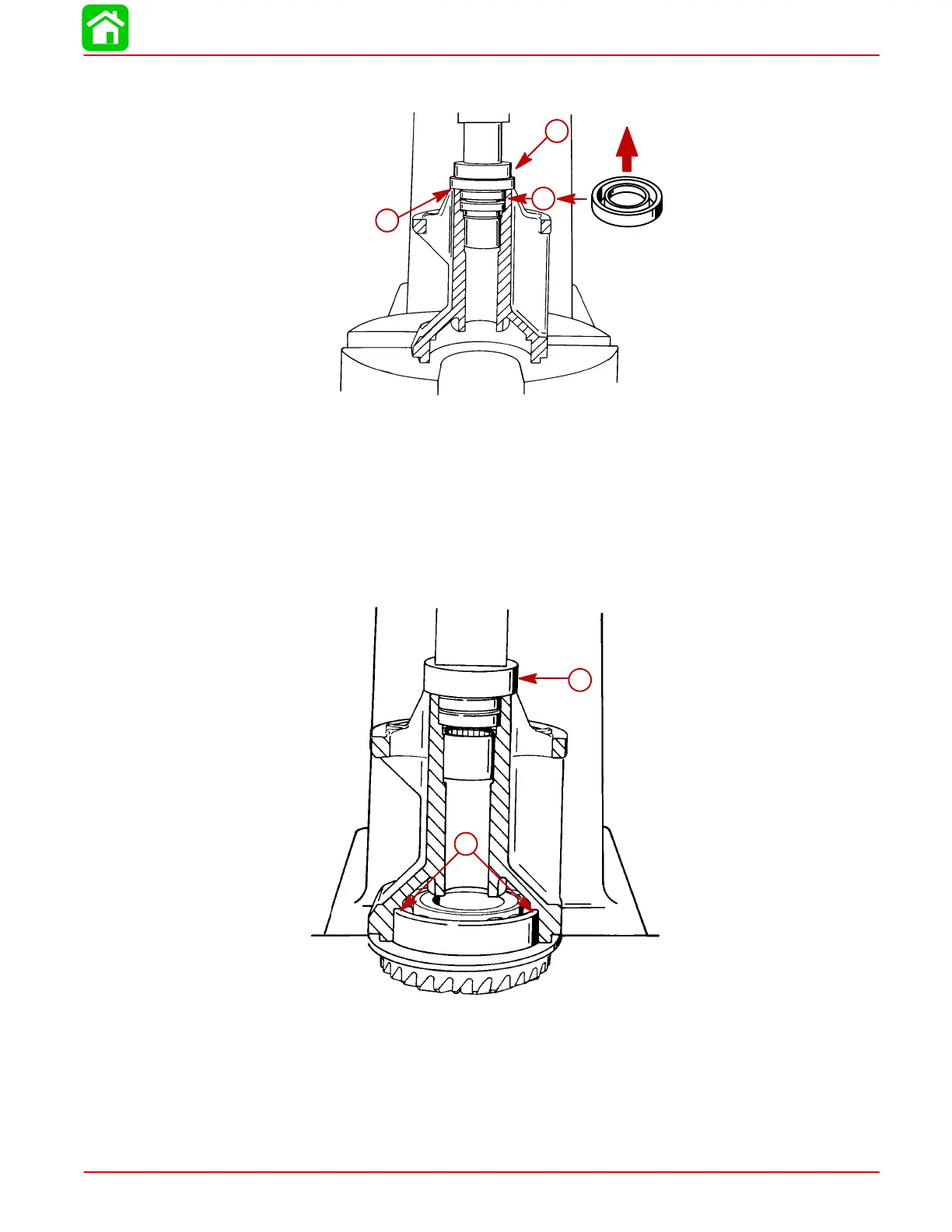

11. Place second seal on short shoulder side of seal driver with lip of seal toward shoulder.
Press seal into bearing carrier until seal driver bottoms against bearing carrier.
c
b
a
51872
a
b
c
a-Oil Seal (Lip of Seal Up)
b-Oil Seal Driver
c-Seated
12. Wipe off excess Loctite.
13. Apply a light coat of Quicksilver Super Duty Gear Lubricant onto the outside diameter
of reverse gear ball bearing.
14. Place bearing carrier over reverse gear and bearing assembly. Press bearing carrier
onto bearing.
a
51870
a
b
a-Mandrel
b-Seated
15. Place O-ring over bearing carrier and position it between bearing carrier and thrust
washer.
16. Lubricate oil seals and O-ring with Quicksilver 2-4-C with Teflon Marine Lubricant.
To Next Page
