LEFT HAND NON-RATCHETING
Page 6B-46 90-883728 JULY 2001

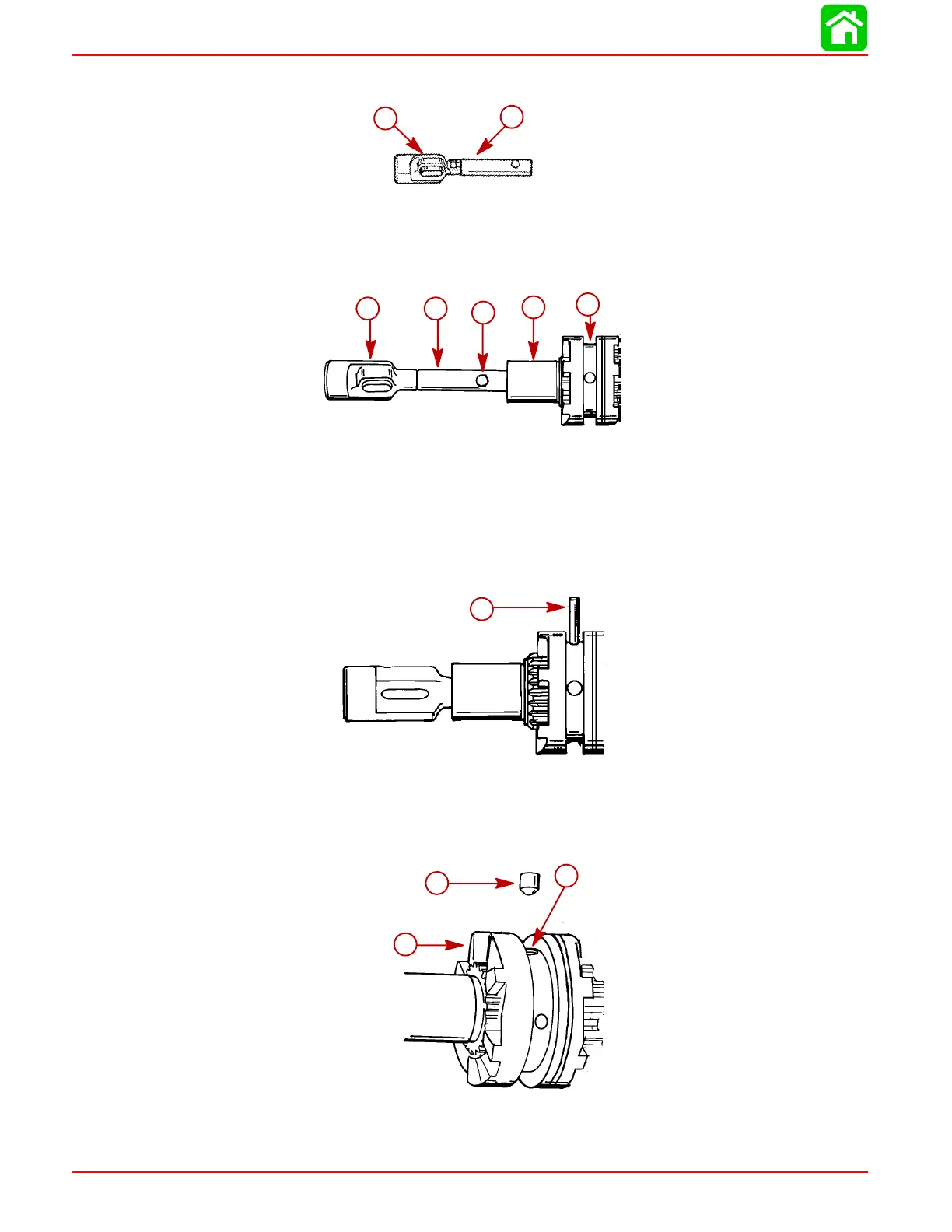

2. Place a small amount of Quicksilver 2-4-C with Teflon Lubricant on actuator rod and
install cam follower.
b
a
a
b
a-Actuator Rod
b-Cam Follower
3. Slide clutch actuator assembly into propeller shaft. Align cross pin slot in actuator rod
with cross pin slot in clutch/propeller shaft.
a
b
d
c
e
51875
a
b
c
d
e
a-Cam Follower
b-Clutch Actuator Rod
c-Propeller Shaft
d-Cross Pin Slot
e-Clutch/Propeller Shaft
4. Insert cross pin through sliding clutch, propeller shaft and actuator rod forcing cross
pin tool out.
51875
a
a
a-Cross Pin
5. Apply a small amount of 2-4-C with Teflon Marine Lubricant to the rounded end of det-
ent pin. Position detent pin in detent pin hole of sliding clutch with rounded end of pin
toward propeller shaft.
a
c
b
51879
a
b
c
a-Detent Pin
b-Detent Pin Hole
c-Sliding Clutch
