ATTACHMENTS / CONTROL LINKAGE
90-883728 JULY 2001 Page 7-21
Lubricate ball joints in steering link rods with SAE 30W Motor Oil. Secure link rods to out-
board steering arms, using special washer head bolts (10-8849838) provided and nylon
insert locknuts as shown. Torque special bolts to 20 lb. ft. (27 Nm) then torque locknuts
to 20 Ib. ft. (27 Nm).
50061
28165
a
b
f
e
a
c
e
d
a
a
b
c
d
e
f
b
f
d
c
e

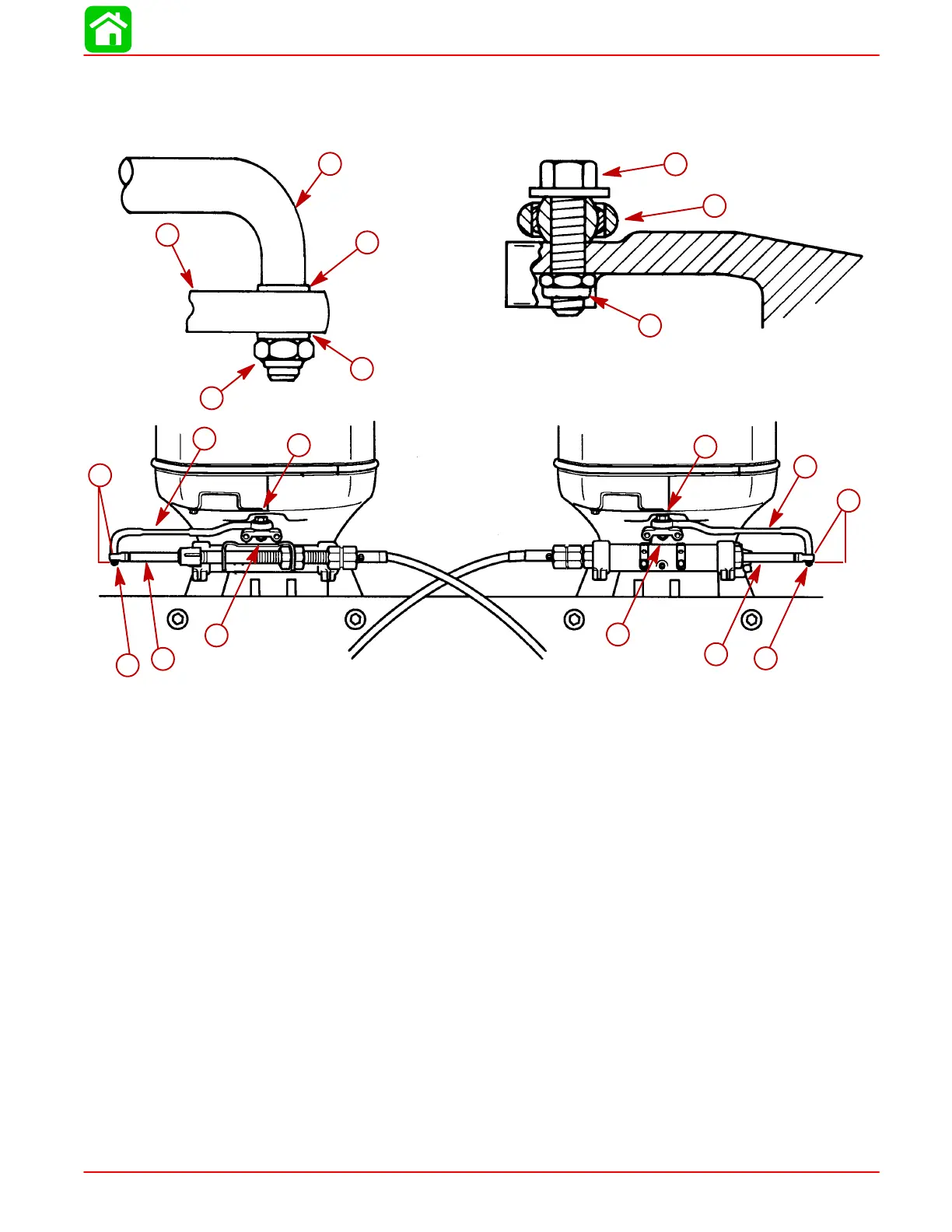

a-Flat Washer (2 Each Link Rod)
b-Nylon Insert Locknut - Torque Until it Seats [DO NOT Exceed 120 lb. in. (13.5
Nm) of Torque], Then Back Off 1/4 Turn
c-Special Washer Head Bolt (10-849838) - Torque to 20 lb.ft. (27 Nm)
d-Nylon Insert Locknut - Torque to 20 lb. ft. (27 Nm)
e-Steering Link Rod
f-Steering Cable End
