CYLINDER HEAD
90-857138R1 MAY 2000 Page 4A-11
Cylinder Head Removal
Refer to Section 4B for cylinder head removal procedures.
Cylinder Head Disassembly
IMPORTANT: Note the location of valve train components for reassembly in their orig-
inal location.

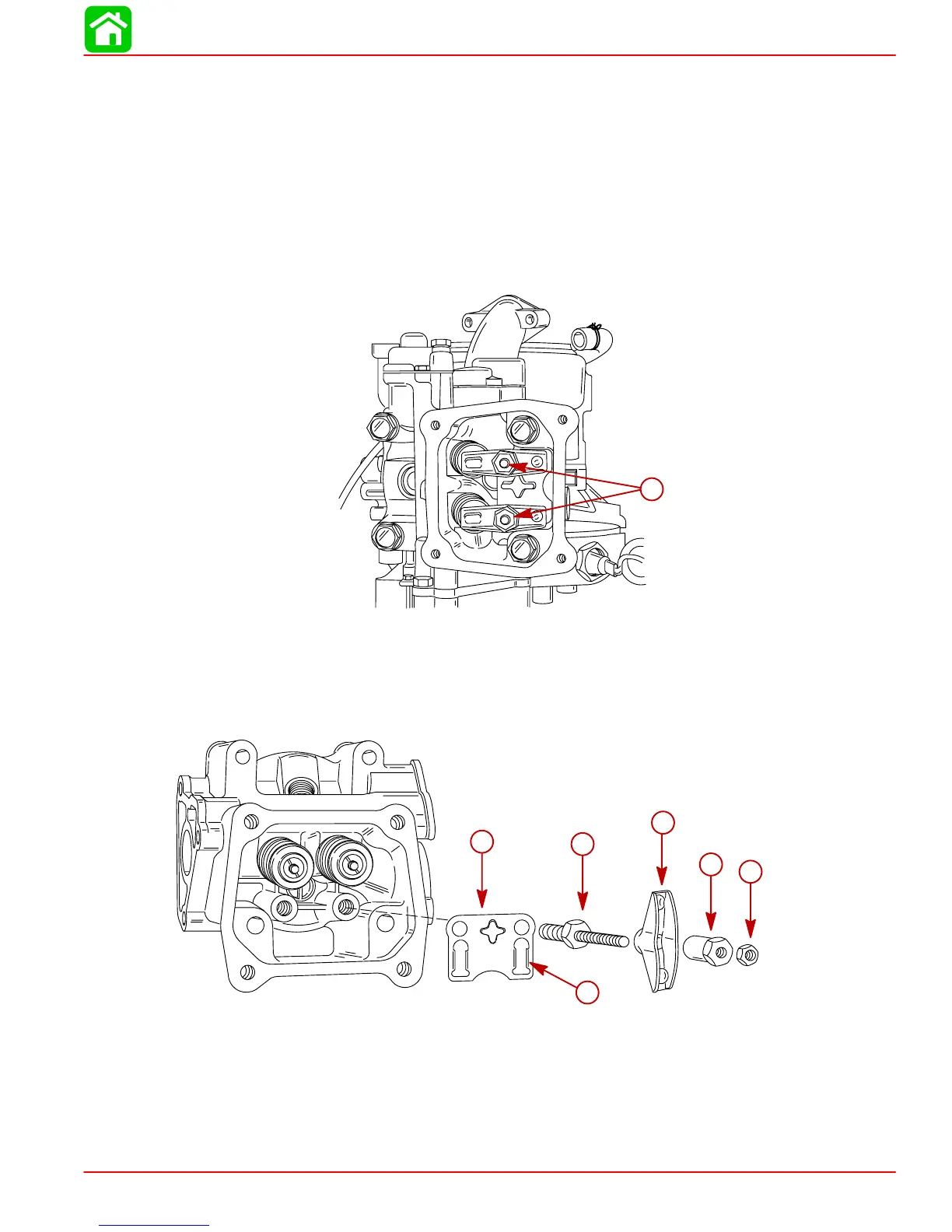

1. Loosen lock nuts.
57250
a
a-Lock nuts (2)
2. Remove pivots and rocker arms.
3. Remove 2 pivot bolts and guide plate.
57247
a
b
c
d
e
f
a-Lock Nut
b-Pivot
c-Rocker Arm
d-Pivot Bolt
e-Guide Plate
f-Guide Tabs Face UP
