Mercury 4 SERIES

CYLINDER BLOCK AND CRANKCASE
Page 4B–16 90-857138R1 MAY 2000

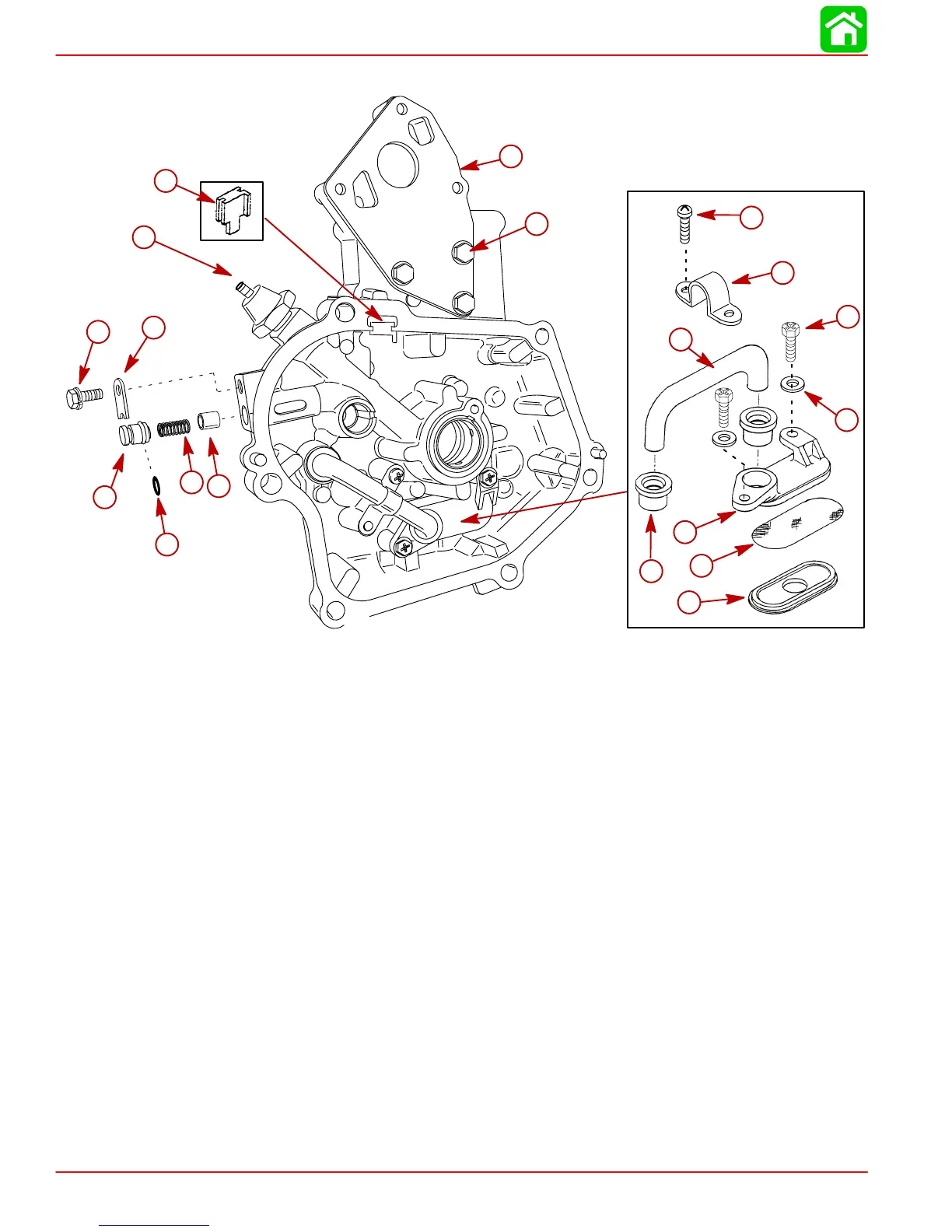

7. Disassemble the oil pan.
a
i
b
c
d
e
f
g
h
k
l
m
n
o
p
q
r
s
j
a-Screw M5 x 16 mm
b-Clamp
c-Pipe
d-Screw (2) M5 x 16 mm
e-Washer
f-Seal (2)
g-Body
h-Strainer
i-Cup
j-Bolt M6 x 16 mm
k-Cover
l-Seat
m-O-Ring Seal
n-Spring
o-Plunger
p-Grommet
q-Oil Pressure Sensor
r-Exhaust Plate with Gasket
s-Bolt (3) M6 x 20 mm
