CYLINDER BLOCK AND CRANKCASE

90-857138R1 MAY 2000 Page 4B–37

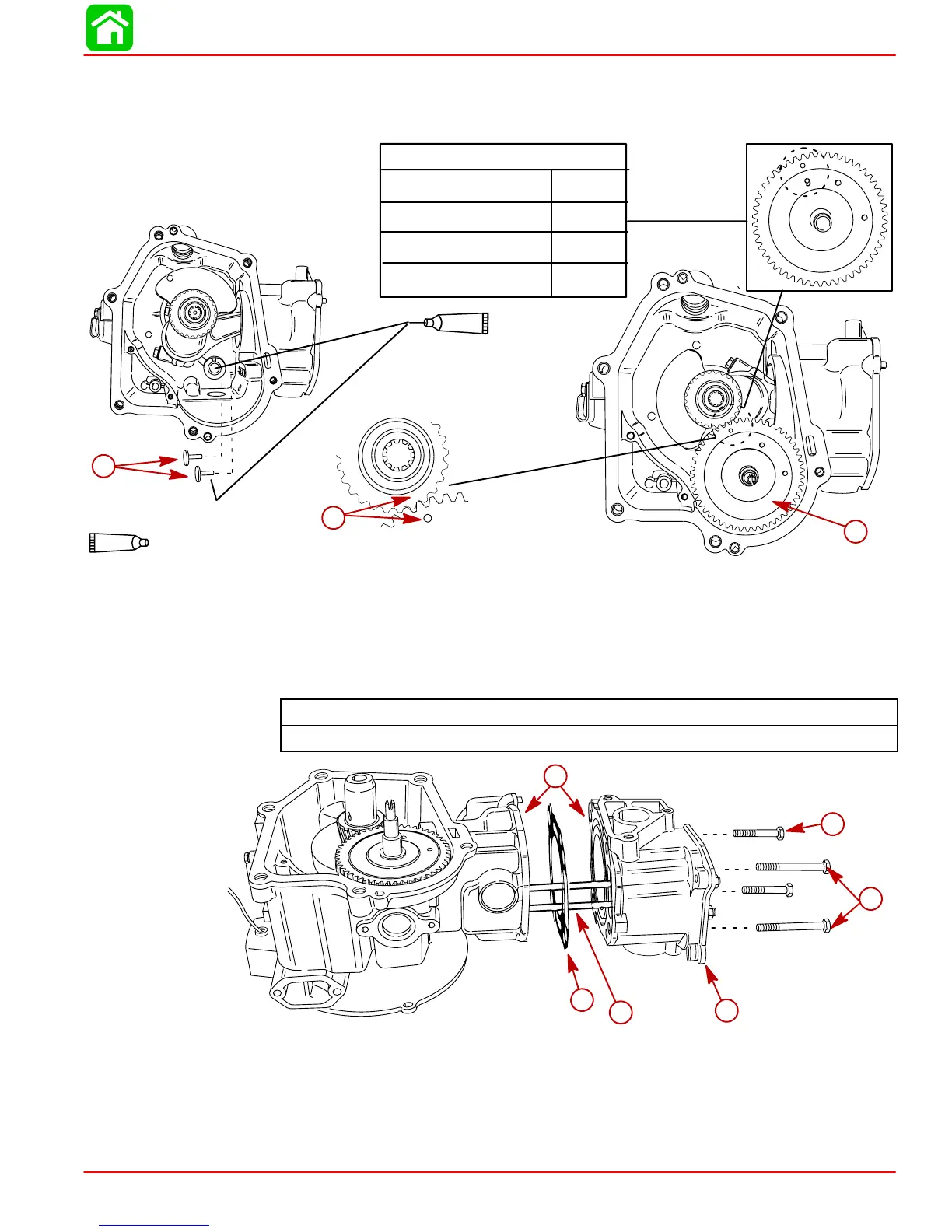

17. Install the lifters at this time.

18. Reassemble the camshaft. Align the mark on the camshaft with the mark on the timing

gear.

110

4-Stroke Outboard Oil (92-828000A12)

110

CAM ID

4 (1999 & 2000)

5 (1999 & 2000)

6 (2000)

4/5/6 (2001)

a-Lifters

b-Camshaft

c-Alignment Marks

19. Reinstall the cylinder head.

NOTE: Be sure cylinder head and cylinder block gasket surfaces are clean and free of oil.

Cylinder Head Bolt Torque

18 lb-ft (24.5 Nm)

a-Make Sure Gaskets Surfaces are Clean and Free of Oil

b-Cylinder Head

c-Push Rods (2)

d-Gasket

e-Bolt (2) M8 x 90 mm

f-Bolts (2) M8 x 60 mm
