CYLINDER BLOCK AND CRANKCASE
Page 4B–38 90-857138R1 MAY 2000
20. Reinstall covers and intake manifold to the cylinder head.
Covers and Intake Manifold Bolt Torque
(a) Thermostat Cover Bolts: 70 lb-in. (8 Nm)
(g) Intake Manifold Bolts: 70 lb-in. (8 Nm)
(k) Cylinder Head Cover Bolts: 70 lb-in. (8 Nm)
a
b
c
d
e
f
g
h
i
j
k
l
m

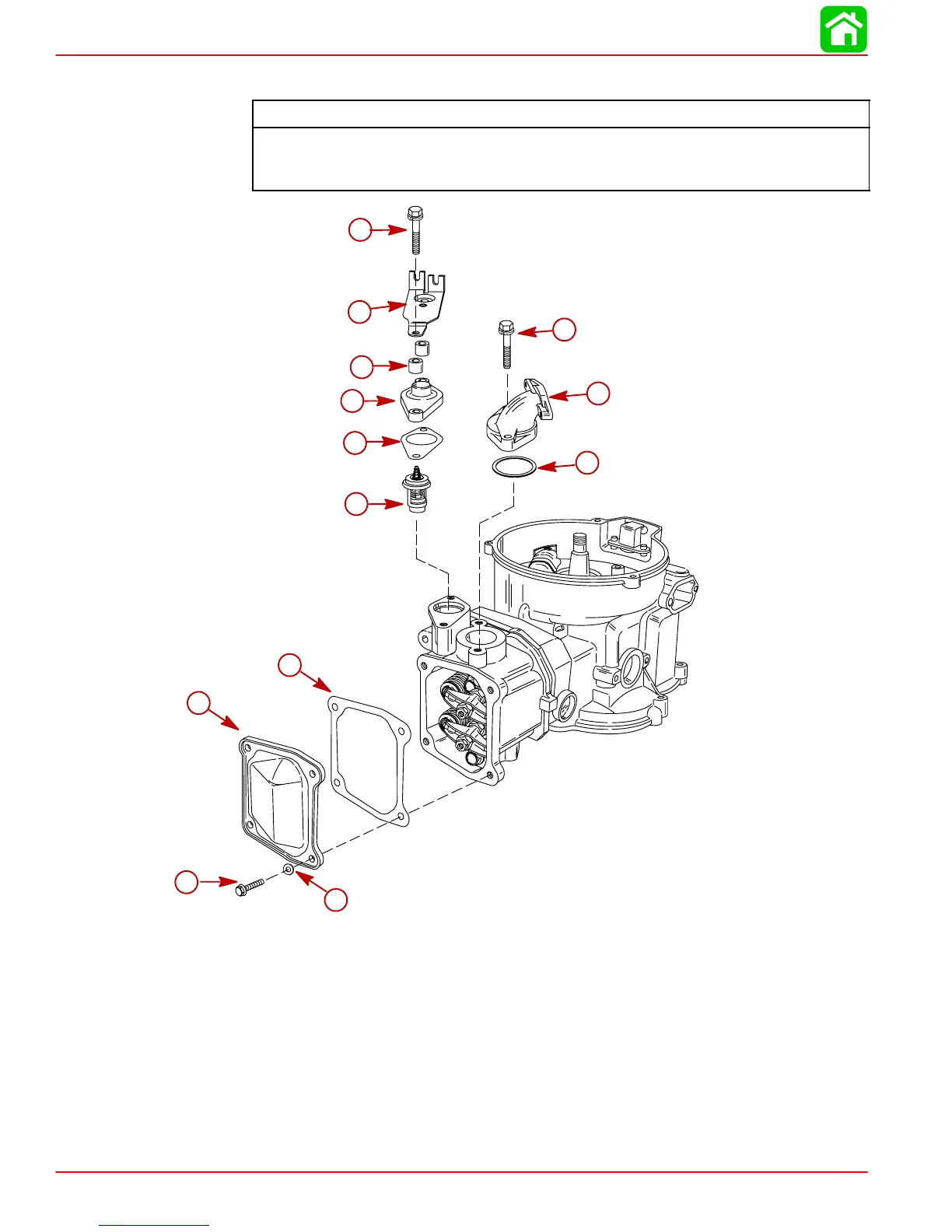

a-Bolt (2) M6 x 40 mm
b-Throttle Cable Bracket
c-Spacer (2)
d-Thermostat Cover
e-Gasket
f-Thermostat
g-Bolt (2) M6 x 25 mm
h-Intake Manifold
i-O-Ring Seal
j-Bolt (4) M6 x 20 mm
k-Flat Washer (4)
l-Cylinder Head Cover
m-Gasket
