MANUAL STARTER
90-857138R1 MAY 2000 Page 8-7

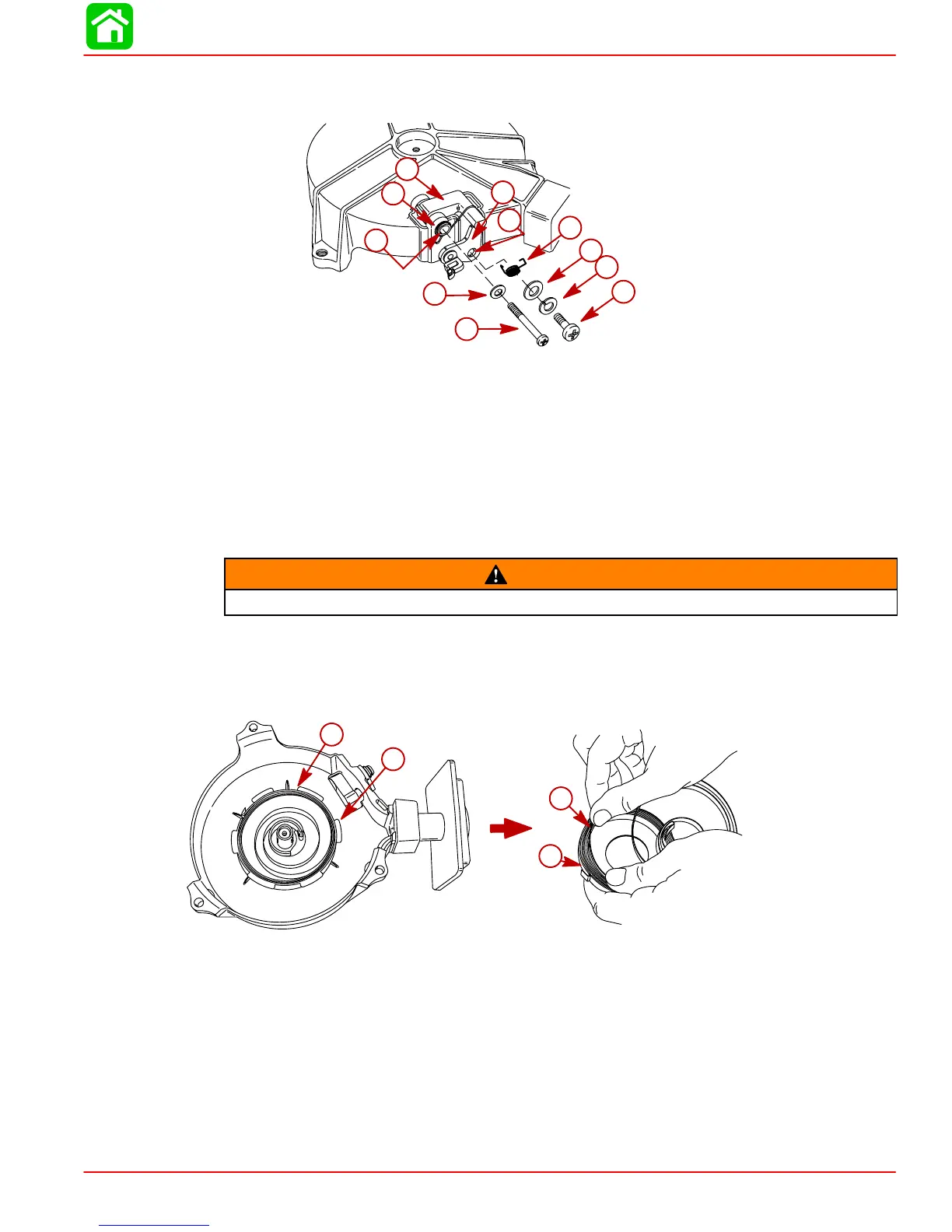

10. Remove starter interlock screw, lockwasher, flat washer, spring, collar (hidden) and cam.
11. Remove screw, washer, spring, collar, and starter lock.
a
b
c
d
e
f
g
h
i
j
k
a- Starter Interlock Screw
b- Lockwasher
c- Flat Washer
d- Spring
e- Collar (hidden)
f -Cam
g- Screw
h- Washer
i - Spring
j - Collar
k- Starter Lock
Cleaning and Inspection
1. Clean components in solvent and dry with compressed air.
WARNING
Spring tension is strong enough to cause serious injury if spring is released.
IMPORTANT: It is not necessary to remove rewind spring from housing for inspec-
tion.
2. If necessary, remove rewind spring from spring housing, by carefully unwinding coiled
spring.
a
57226
b
a
56474
b
a- Rewind Spring
b- Spring Housing
3. Inspect rewind spring for kinks, burrs, corrosion or breakage.
4. Inspect starter sheave, rope guide and starter housing for nicks, grooves, cracks, wear
or distortion, especially area of rope travel.
5. Inspect interlock components, springs, ratchet pawls, and friction plate for wear or dam-
age.
6. Inspect starter rope for wear.
7. Replace components as necessary.
