MANUAL STARTER
Page 8-8 90-857138R1 MAY 2000
Reassembly
CAUTION
When reassembling rewind starter, safety glasses must be worn in case spring
should uncoil out of housing.

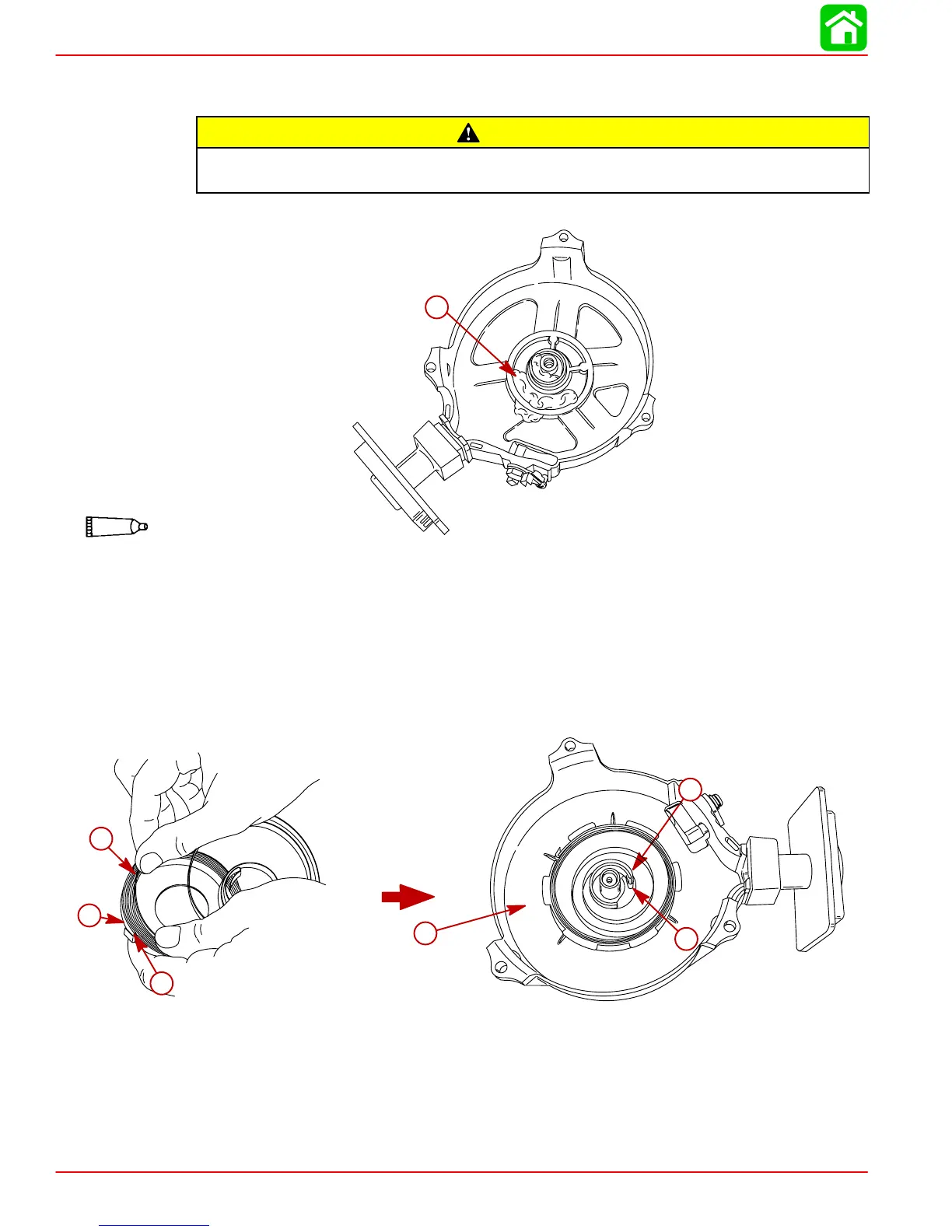

1. Apply a small amount of 2-4-C Marine Lubricant in starter housing as shown.
a
95
2-4-C With Teflon (92-825407A12)
56655
a- 2-4-C Marine Lubricant
2. Apply a thin coat of non-metallic low temperature grease to spring cavity of starter hous-
ing.
3. Place outer hook of starter spring in slot of housing and wind spring clockwise into spring
cavity.
4. Install spring/housing assembly into starter housing while positioning inner spring hook
onto starter housing tab.
57226
a
b
c
56474
d
e
f
a- Outer Hook
b- Starter Spring
c- Slot
d- Starter Housing
e- Inner Spring Hook
f - Starter Housing Tab
