IGNITION SYSTEM

90-857138R1 MAY 2000 Page 2A-19

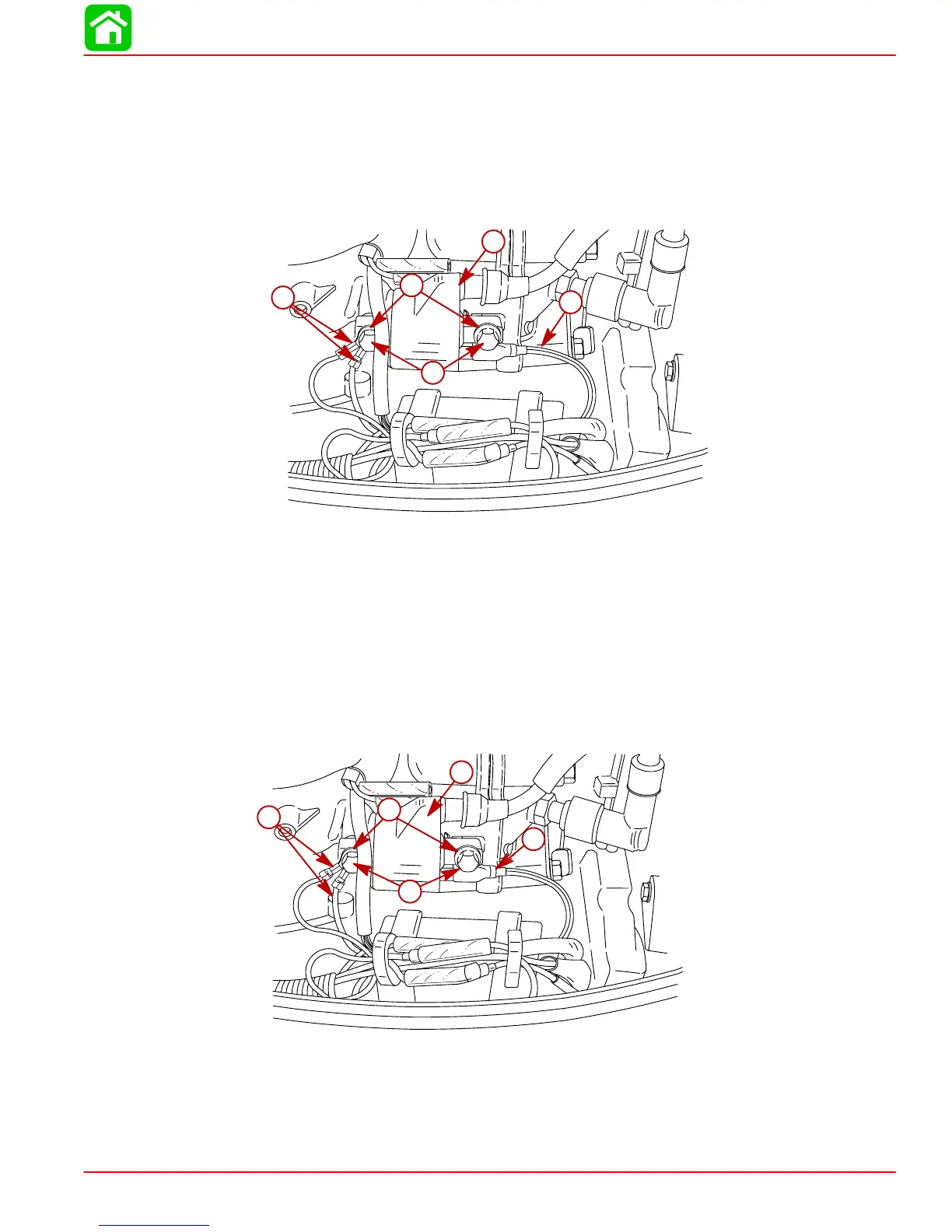

Ignition Coil

REMOVAL

1. Disconnect BLACK/YELLOW CDI unit lead from coil.

2. Disconnect high tension plug lead from spark plug.

3. Remove bolts, and washers and remove coil while disconnecting BLACK ground wires.

57522

a-BLACK/YELLOW CDI Lead

b-Coil

c-Bolts (2)

d-Washers (2)

e-BLACK Ground Wires

INSTALLATION

1. Secure ignition coil using bolts and washers. Torque bolts to 70 lb-in. (8 Nm). Make sure

to connect BLACK ground wires as shown.

2. Reconnect BLACK/YELLOW CDI unit lead to ignition coil.

57522

a-Coil

b-Bolts (2)

c-Washers (2)

d-BLACK Ground Wires

e-BLACK/YELLOW CDI Lead
