IGNITION SYSTEM
Page 2A-18
90-857138R1 MA
Y 2000
T

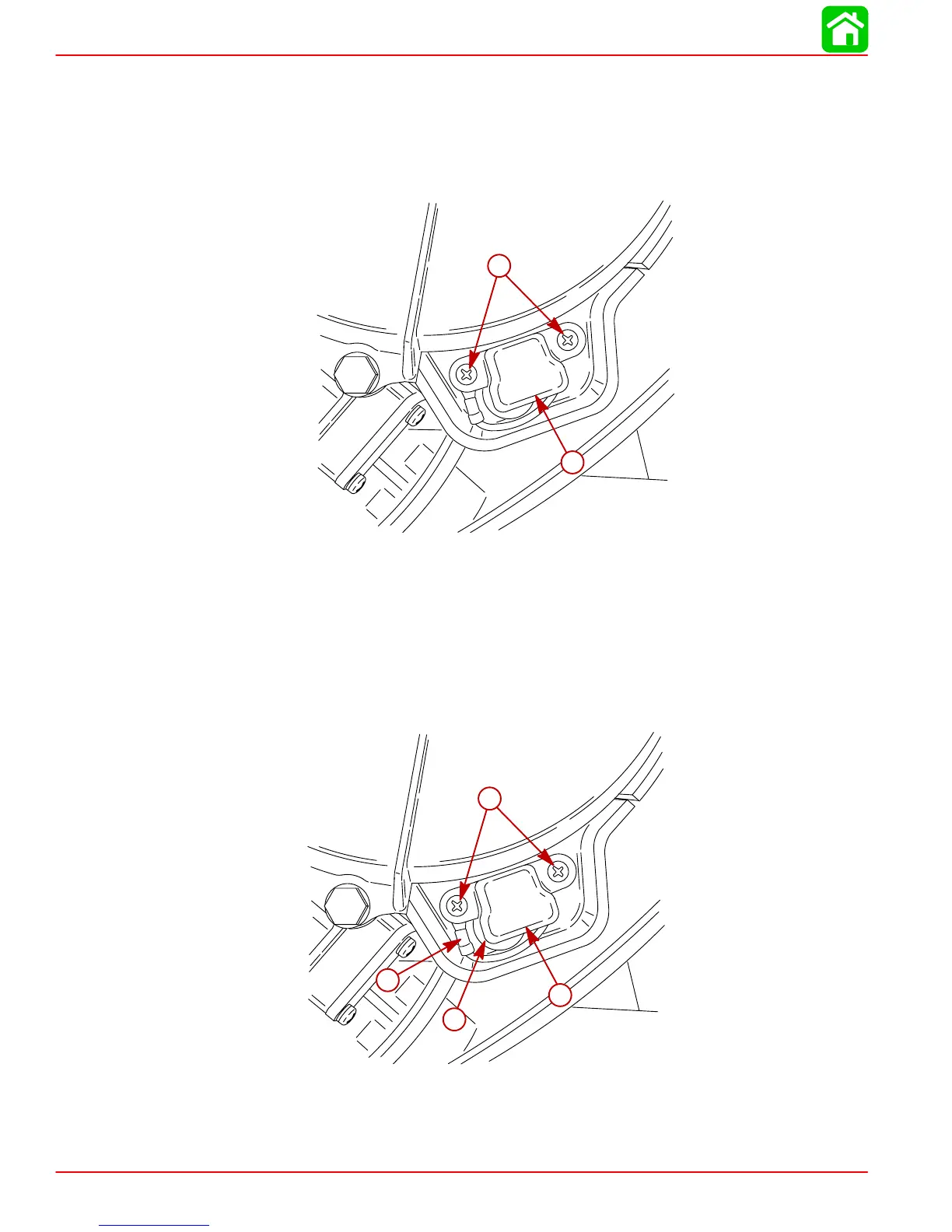

rigger Coil
REMOV
AL
1.
Disconnect RED/WHITE coil lead from CDI unit.
2.
Remove 2 screws and pull trigger coil from housing.
a
b
56286
a-
Screws (2)
b-
T
rigger Coil
INST
ALLA
TION
1.
Route
coil leads through rubber grommet and connect RED/WHITE coil lead to CDI unit
lead.
2.
Secure trigger coil using screws. Make sure to attach ground wire under screw as
shown.
a
b
c
d
56286
a-
Rubber Grommet
b-
T
rigger Coil
c-
Screws (2)
d-
Ground Wire
