Mercury 40/50 Series User Manual

INSTALLATION
44
Attaching the transom bracket: After positioning the transom
bracket, tighten the clamp screws. Drill four holes in the boat
transom, matching the holes in the transom bracket. Secure the
engine with the supplied bolts (M12 x 105 mm), washers, and nuts.
Use the larger diameter washers inside of the transom board and
the smaller diameter washers outside of the transom bracket.
The mounting holes may be drilled beforehand by referring to the
dimensional drawing.

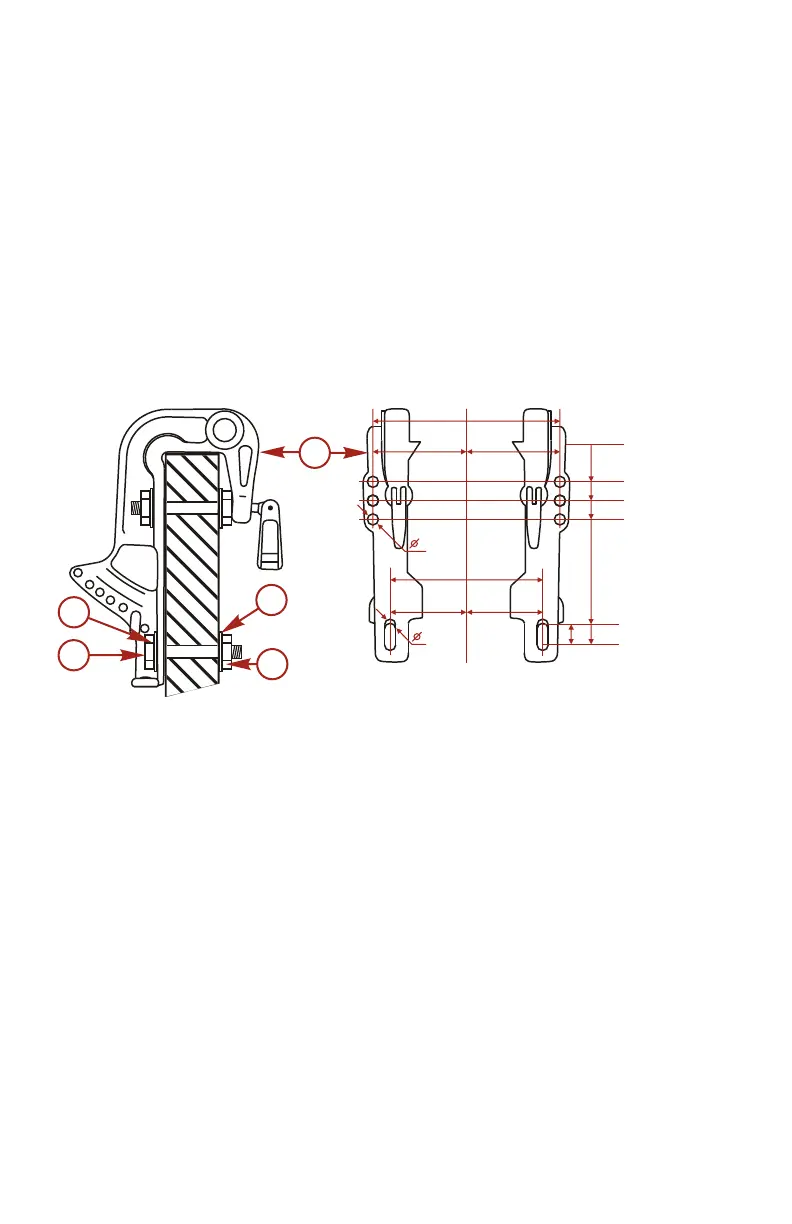

TRANSOM BRACKET DIMENSIONAL DRAWING
Manual tilting model: MH, EH, EHO, EO
a - Washer (smaller diameter)
b - Bolt (M12 x 105 mm)
c - Top of transom
d - Washer (larger diameter)
e - Nut
38305
117(4.61)
234(9.21)
222(8.74)
117(4.61)
204(8.03)
102(4.02)
102(4.02)
13
13
25(0.98)
25(0.98)
89(3.5)
64(2.52)
39(1.54)
26(1.02)
248(9.76)
a
b
d
e
c
