Mercury 40/50 Series User Manual

INSTALLATION
51

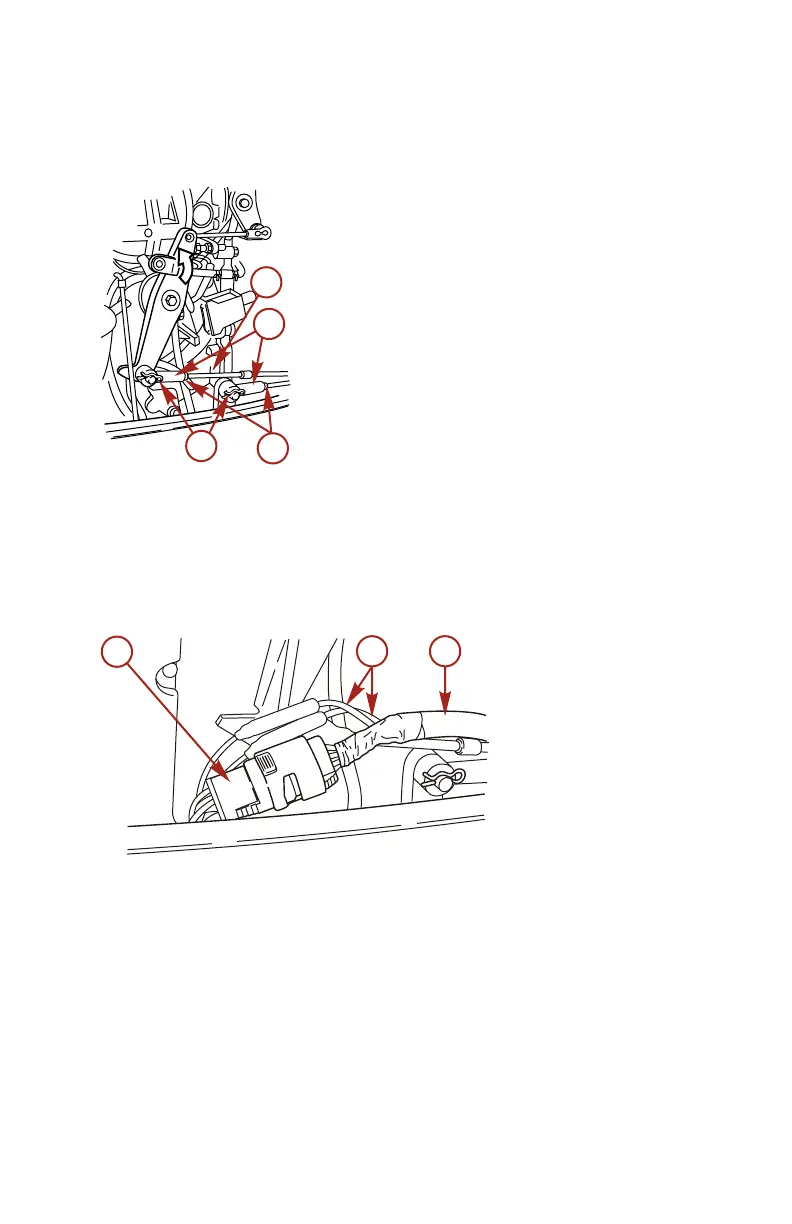

7. Adjust the cable joint until the hole meets with the throttle arm
pin. After adjustment, lock a cable joint with a nut and secure
with a cotter pin.
a - Cotter pin
b - Nut
c - Cable joint
d - Throttle cable
Connecting Electrical Harnesses
1. Connect key switch harness to the engine harness.
2. Connect the pink and light blue leads from the key switch
harness to the engine harness.
a - Key switch
harness
b - Lead wires
c - Engine harness
IMPORTANT: Do not disconnect the electric couplers while the
engine is running, as this will damage the CD unit and could result
in a serious electric shock.
38314
b
c
a
d
38315
a
b
c
