Mercury 40/50 Series User Manual

INSTALLATION
52

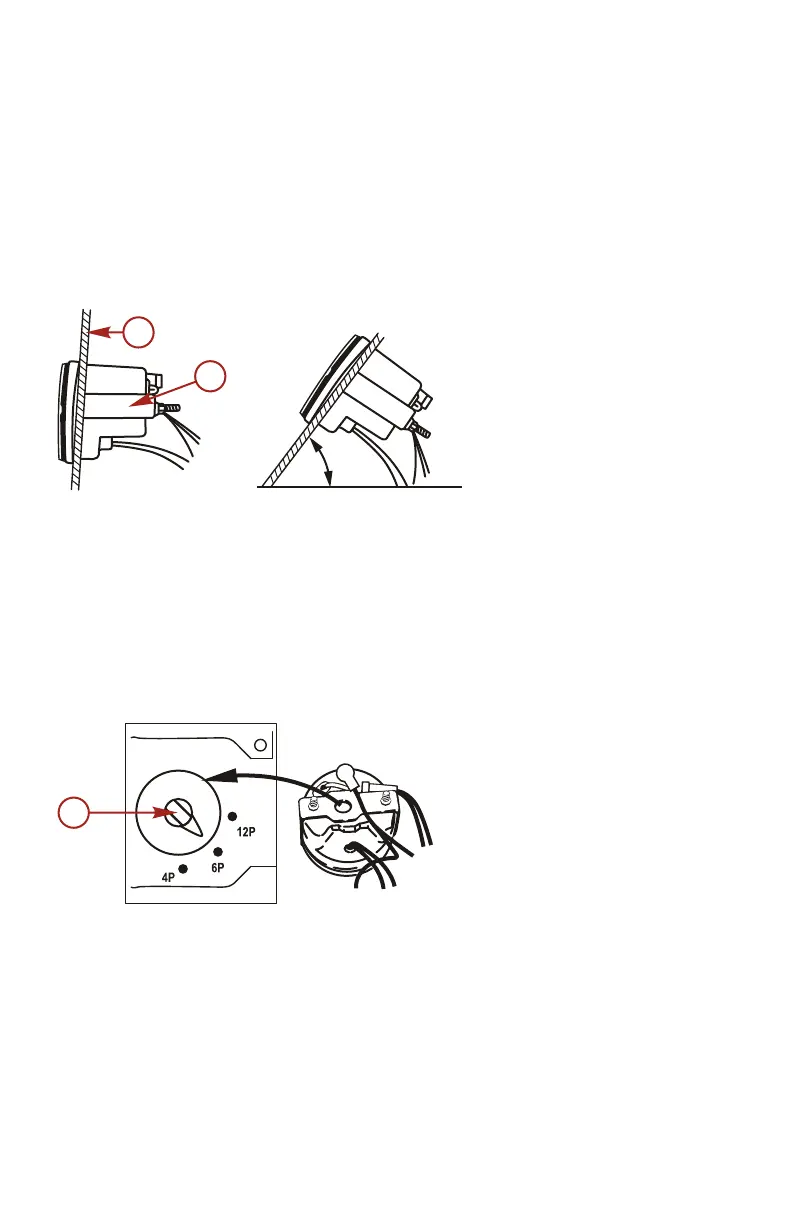

INSTALLING THE METERS
1. Install the meters securely in the dashboard where they can
be easily read and are not exposed to water splashes. The
recommended dashboard thickness is 2–11 mm
(0.08–0.4 in.). For dashboards thicker than 11 mm (0.4 in.),
the fitting plate should be cut accordingly. Be sure to tighten
the nuts on the bracket evenly.
a - Dashboard
b - Bracket
2. The dashboard inclination should be 50°–70°.
3. All models of the 40 and 50 series have six electric poles. Set
the tachometer selector knob to "6P."
a - Selector
38316
50°–70°
a
b
38317
a
