INSTALLATION
50
• Double‑check that the remote control cables, the throttle
cable, and the shift cable have been connected correctly.
Move the remote control lever Forward (F) until the first
engaging point (approximately 32°). The cable which is
moved first when the lever is turned, is a shift cable. Check
that the shift lever is in Neutral (N) and the neutral warm‑up
lever is fully closed when the remote control cables have
been connected.

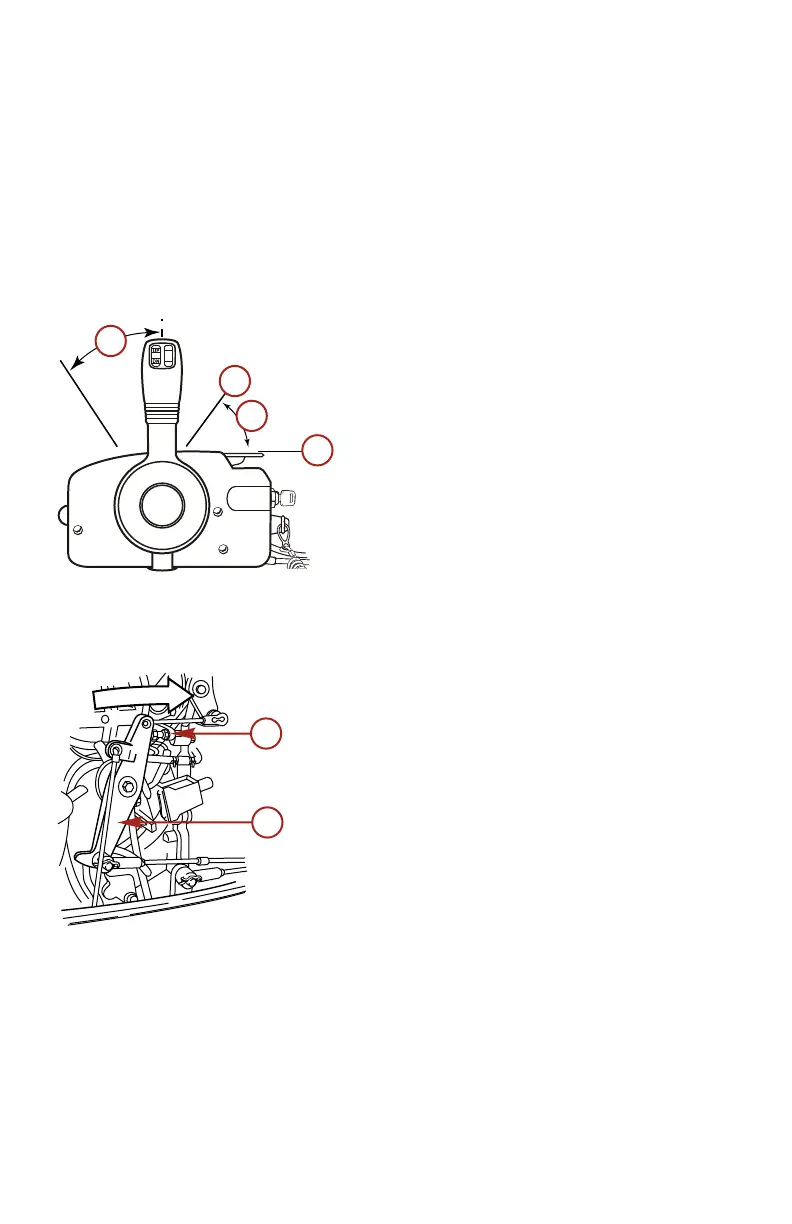

a - Approximately 32°
b - Fully opened
c - Neutral warm‑up lever
d - Fully closed
6. The advancer arm on the engine should have contact with the
stopper of the carburetor throttle valve to enable it to be fully
closed.
a - Stopper (throttle fully closed side)
b - Advancer arm
38312
a
b
c
d
38313
a
b
