Mercury 40/50 Series User Manual

FEATURES & CONTROLS
79

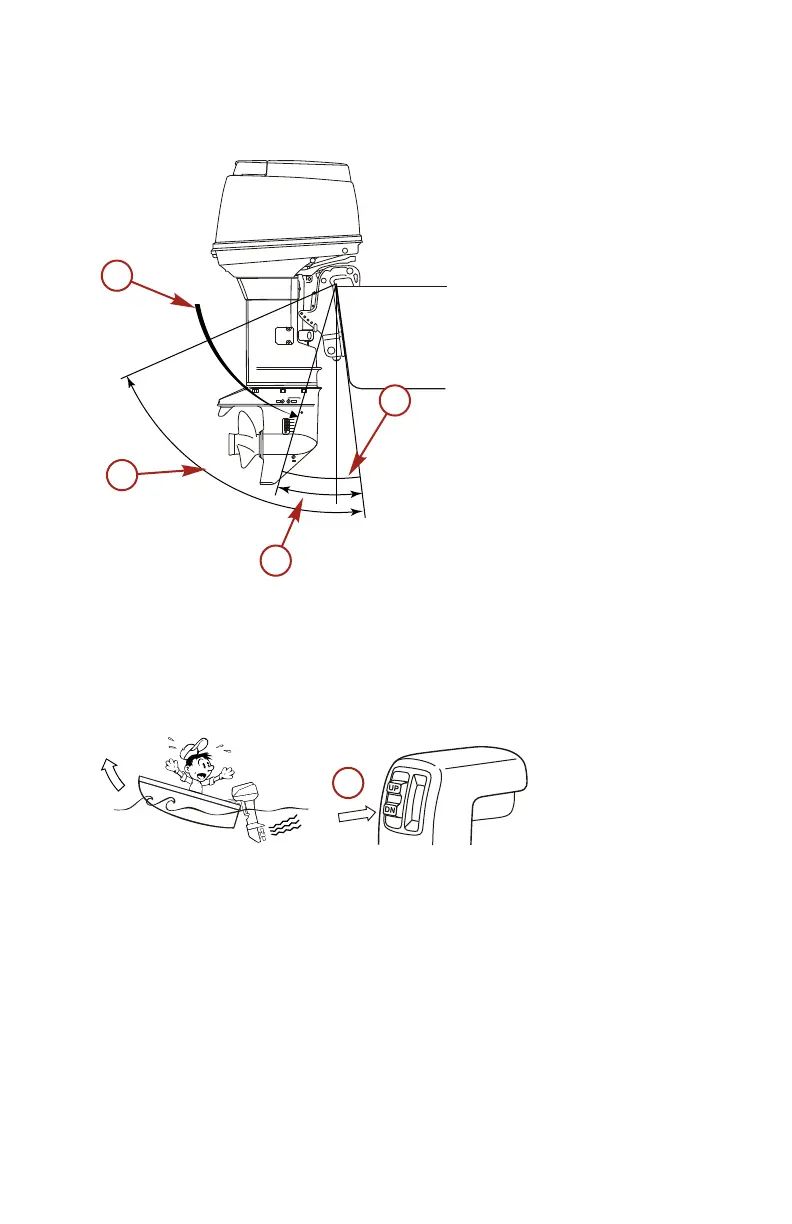

How to use the trim gauge: When the trim angle is set as desired,
take a reading off the trim gauge, and record it for future reference.
a - Trim angle
adjustable range
b - 74°
c - 8°
d - 28°
• Correct trim: The trim angle is optimum when the boat is
parallel to the water surface while running.
• Trim down: If the trim angle is excessive, the bow will rise out
of the water and the speed will decrease. If this occurrs, press
the switch on the remote control level to down (DN).
a - Remote control lever: Down (DN)
38375
a
b
d
c
38376
a
