Section 5 - Storage
Page 92 90-8M0113924 eng DECEMBER 2015

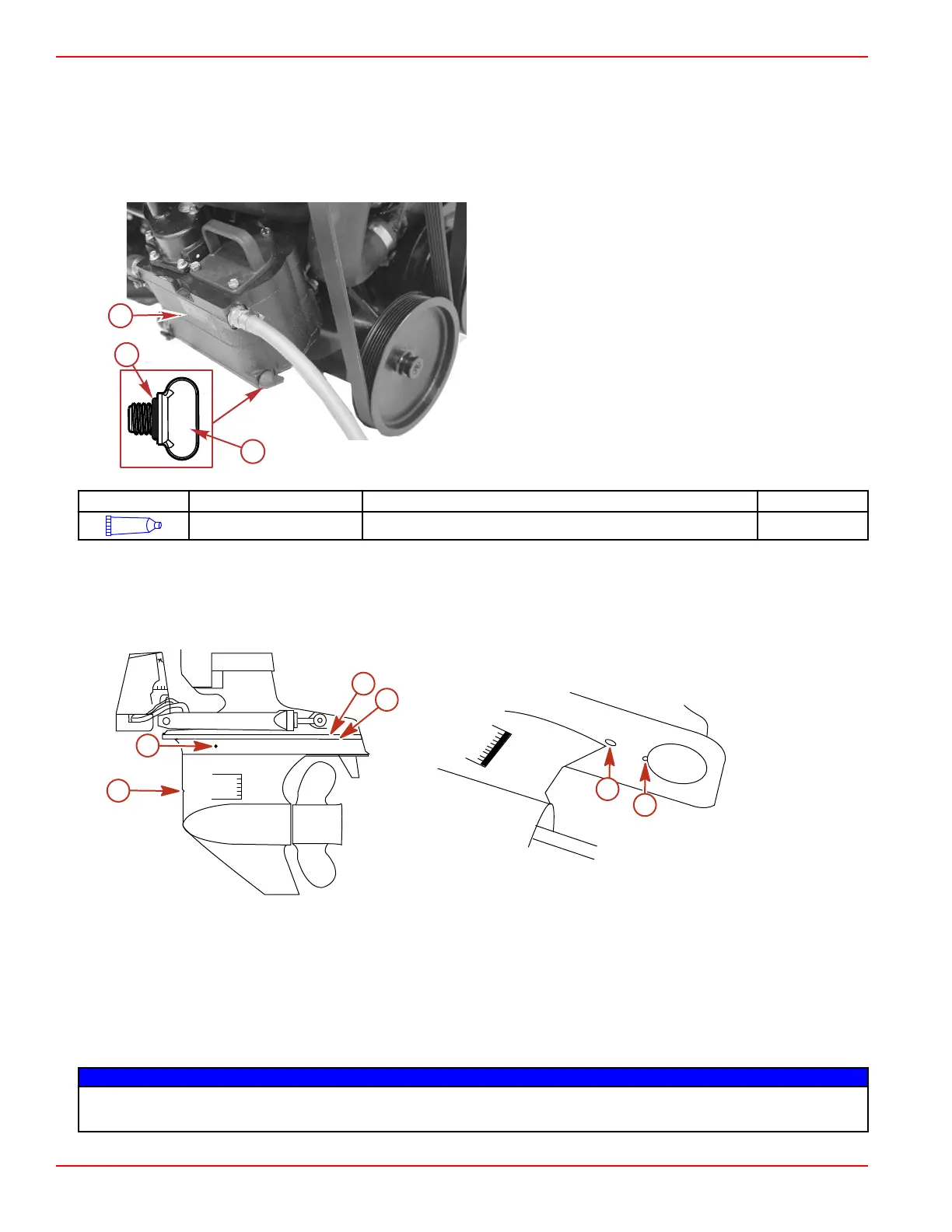

Draining Water from the Cool Fuel Module
Mercury MerCruiser recommends draining the Gen 3 Cool Fuel Module if it is equipped with a drain plug.
1. Remove the drain plug from the Gen 3 Cool Fuel Module and allow the water to completely drain from the module.
2. Inspect the drain plug and the O‑ring for damage. Replace if needed.
3. Place the O‑ring on the drain plug and apply Perfect Seal to the threads. Install the drain plug in the module drain hole.
Tighten the drain plug to finger‑tight.
a - Gen 3 Cool Fuel Module
b - Drain plug
c - O‑ring
Tube Ref No. Description Where Used Part No.
19
Perfect Seal Drain plug threads 92-34227Q02
Draining the Sterndrive
NOTE: This procedure is needed only for salty, brackish, mineral‑laden, or polluted water applications; and for freezing
temperatures or extended storage.
1. Insert a small wire repeatedly to ensure that vent holes, water drain holes, and passages are unobstructed and open.
Sterndrive water drain holes
a - Speedometer pitot tube
b - Trim tab cavity vent hole
c - Trim tab cavity drain passage
d - Gear housing water drain hole (1 each ‑ port and starboard)
e - Gear housing cavity vent hole
f - Gear housing cavity drain hole
NOTICE
The universal joint bellows may develop a set when stored in a raised or up position, causing the bellows to fail when
returned to service and allowing water to enter the boat. Store the sterndrive in the full down position.
b
a
d
e
f
c
6146
