Section 4 - Maintenance
90-8M0113924 eng DECEMBER 2015 Page 73

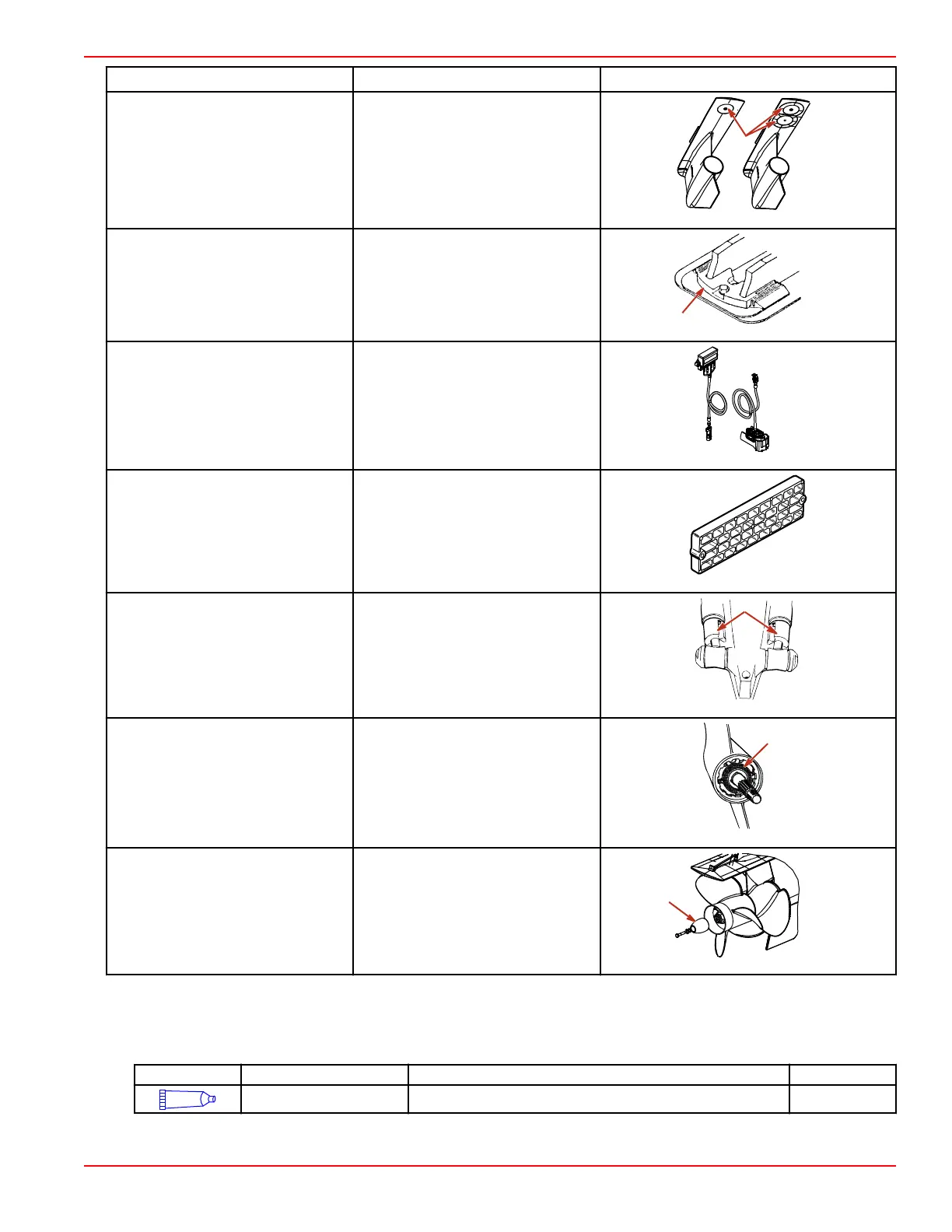

Description Location Figure
Gearcase anode plate
Mounted on the underside of the
lower gearcase.
20336
Ventilation plate anode Mounted on the front of the gearcase.
20338
MerCathode system
The MerCathode electrode is
mounted to the underside of the
gimbal housing. The MerCathode
controller is mounted on the engine
or on the boat transom. The controller
harness connects to the electrode
harness.
20340
Anode kit (if equipped) Mounted to the boat transom.
20341
Trim cylinder anodes
Mounted on each of the trim
cylinders.
20342
Bearing carrier anode (Bravo One)
Located in front of the propeller,
between the front side of the
propeller and the gear housing.
20343
Propshaft anode (Bravo Three) Located behind the aft propeller.
20344
Power Package Exterior Surfaces
1. Spray the entire power package at recommended intervals with Corrosion Guard. Follow the instructions on the can for
proper application.
Tube Ref No.
Description Where Used Part No.
120
Corrosion Guard Painted surfaces 92-802878 55
