Mercury 8.2 MAG Operation & Maintenance Manual

Section 1 - Getting to Know Your Power Package
90-8M0113924 eng DECEMBER 2015 Page 7
SmartCraft digital gauges also feature troll control. This allows a vessel to maintain a constant speed with an engine speed
between the specified RPM range.

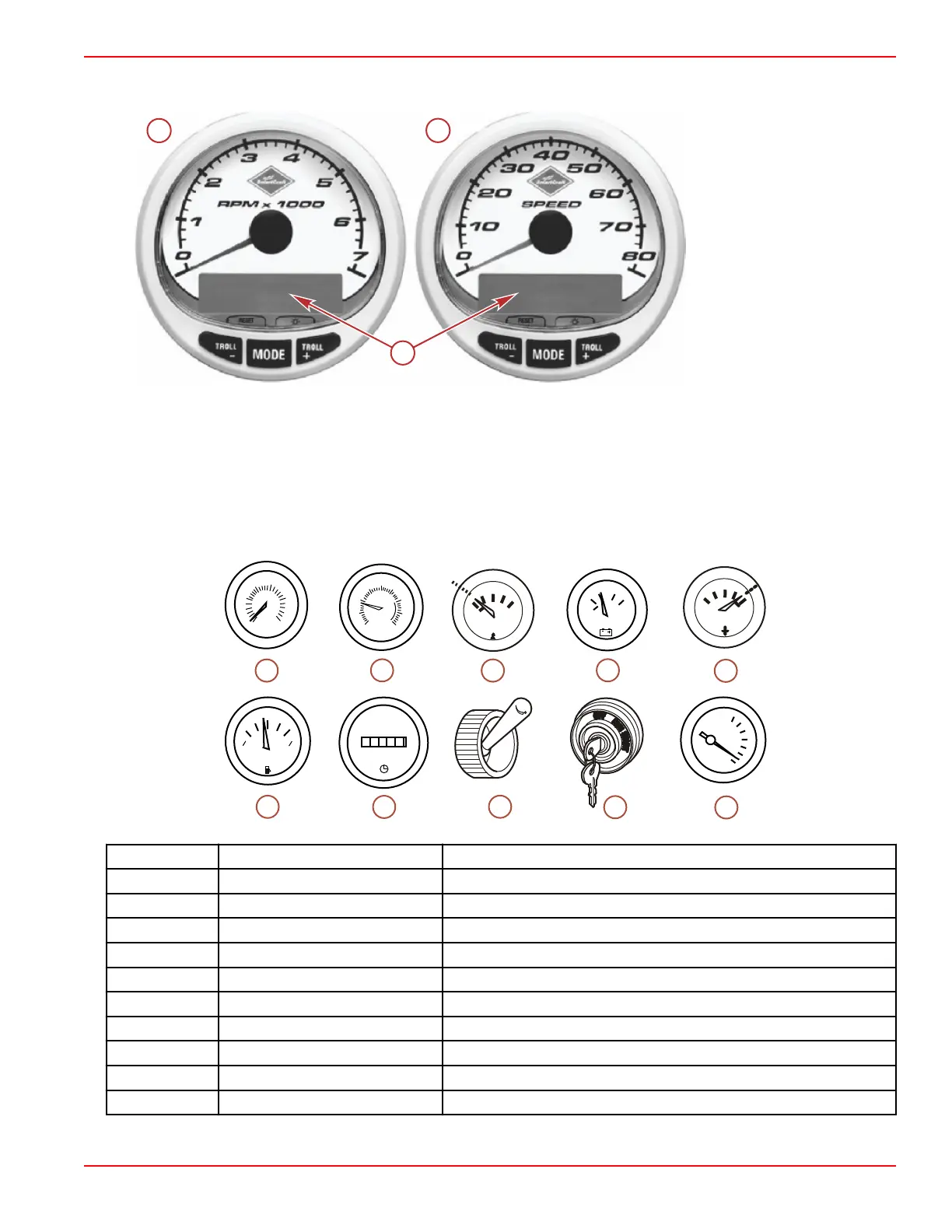

SmartCraft gauges
a - Tachometer
b - Speedometer
c - LCD system view display
The SmartCraft instrument package also aids in Engine Guardian diagnostics. The SmartCraft instrument package displays
critical engine alarm data and potential problems.
Refer to the manual with your gauge package for the warning functions monitored by and basic operation of the SmartCraft
instrument package.
Analog Gauges
The following is a brief explanation of the instrumentation typically found on some boats. The owner and operator should be
familiar with all instruments and their functions. Because of the large variety of instrumentation and manufacturers, you should
have your boat dealer explain the particular gauges and normal readings for your boat.
L
H
OIL
C H
TEMP
0
1
2
3
4
5
6
7
8
R P M
X 1000
MPH
KPH
10
20
30
40
50
60
70
80
30
40
50
60
70
80
90
100
120
110
10 16
BATT
0
4
4
4
FUEL
CRUISELOG
0 0 0 0
0
TRIM
a
b
c
d
e
f
g
h
i
j
14671
Reference
Gauge Function
a Speedometer Indicates boat speed.
b Tachometer Indicates engine RPM.
c Oil pressure gauge Indicates engine oil pressure.
d Voltmeter Indicates battery voltage.
e Coolant temperature gauge Indicates engine operating temperature.
f Fuel gauge Indicates quantity of fuel in tank.
g Hour meter Records engine operating time.
h Bilge blower switch Operates the bilge blower.
i Ignition switch Allows the operator to start and stop engine.
j Power trim gauge Indicates sterndrive angle (trim up [out] and down [in]).
26238
c
a
b
