Mercury 8.2 MAG Operation & Maintenance Manual

Section 4 - Maintenance
90-8M0113924 eng DECEMBER 2015 Page 69

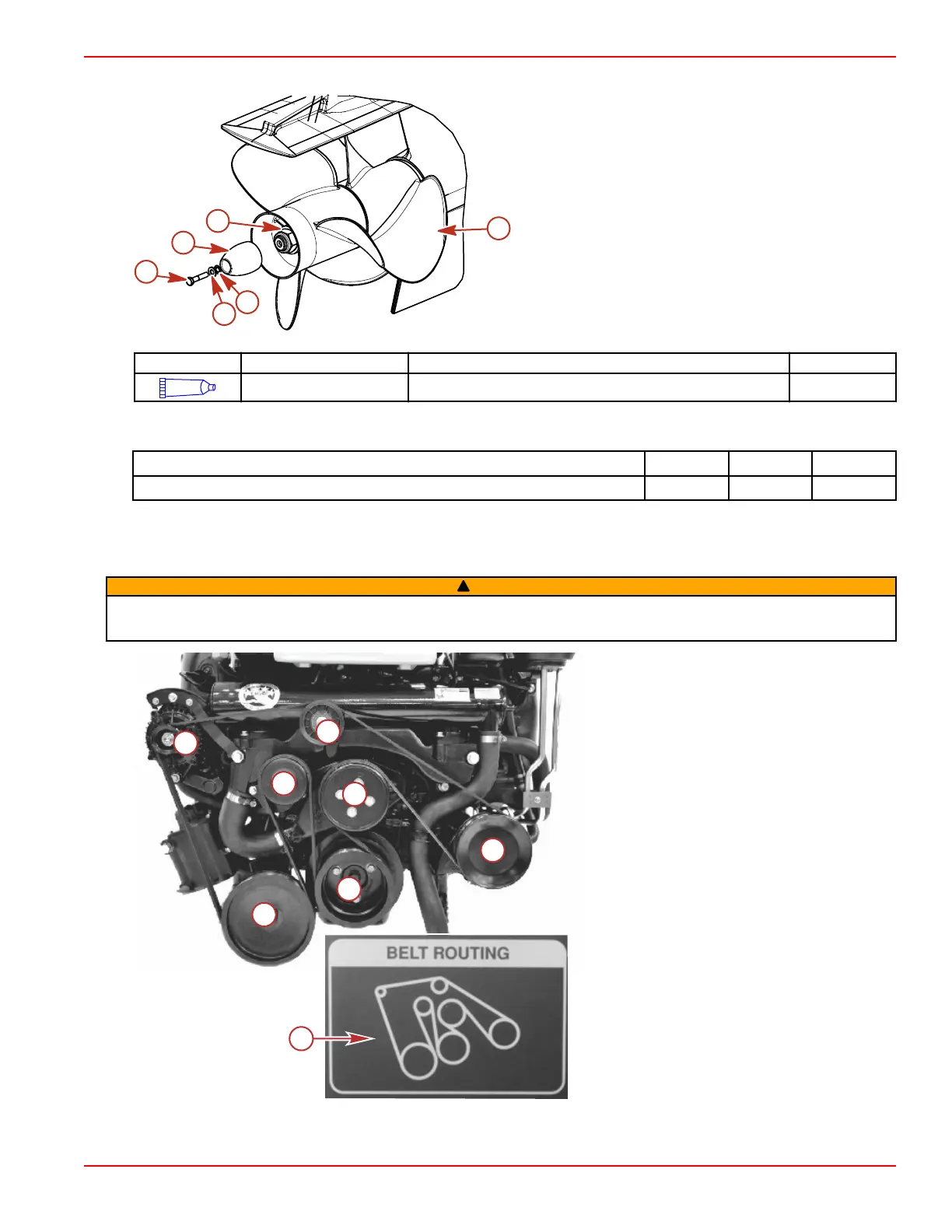

11. Apply Loctite 271 Threadlocker onto the propeller shaft anode screw threads.
a - Propeller
b - Rear propeller nut
c - Propeller shaft anode
d - Propeller shaft anode screw
e - Flat washer
f - Star washer
Tube Ref No. Description Where Used Part No.
7
Loctite 271 Threadlocker Propeller shaft anode screw threads 92-809819
12. Secure the propeller shaft anode to the propeller shaft with the propeller shaft anode screw and washers. Tighten the
anode screw to the specified torque.
Description
Nm lb‑in. lb‑ft
Propeller shaft anode screw 38 mm (0.3125‑18 x 1.5 in.) long 27 – 20
Serpentine Drive Belt
Inspection
!
WARNING
Inspecting the belts with the engine running may cause serious injury or death. Turn off the engine and remove the ignition
key before inspecting the belts.
a - Alternator pulley
b - Idler pulley
c - Power steering pump pulley
d - Water circulating pump pulley
e - Crankshaft pulley
f - Tensioner pulley
g - Seawater pump pulley
h - Belt routing diagram
a
b
d
c
f
e
5303
a
b
c
d
e
g
f
50406
h
