Section 4 - Maintenance
Page 56 90-8M0113924 eng DECEMBER 2015
NOTE: Oil capacities include the gear lube monitor.
Model Capacity Fluid Type
Bravo One 3209 ml (108‑1/2 oz)
High Performance Gear Lubricant
Bravo Two 3682 ml (124‑1/2 oz)
Bravo Three (single seawater pickup) 3445 ml (116‑1/2 oz)
Bravo Three (dual seawater pickup) 3209 ml (108‑1/2 oz)
13. Remove the pump from the oil fill and drain hole. Quickly install the sealing washer and screw. Tighten securely.
14.
Install the propeller. Refer to Propellers.
15. Check the oil level after the first use.
IMPORTANT: Oil level in the gear lube monitor rises and falls during operation. Always check the oil level when the sterndrive
is cool and the engine is off.

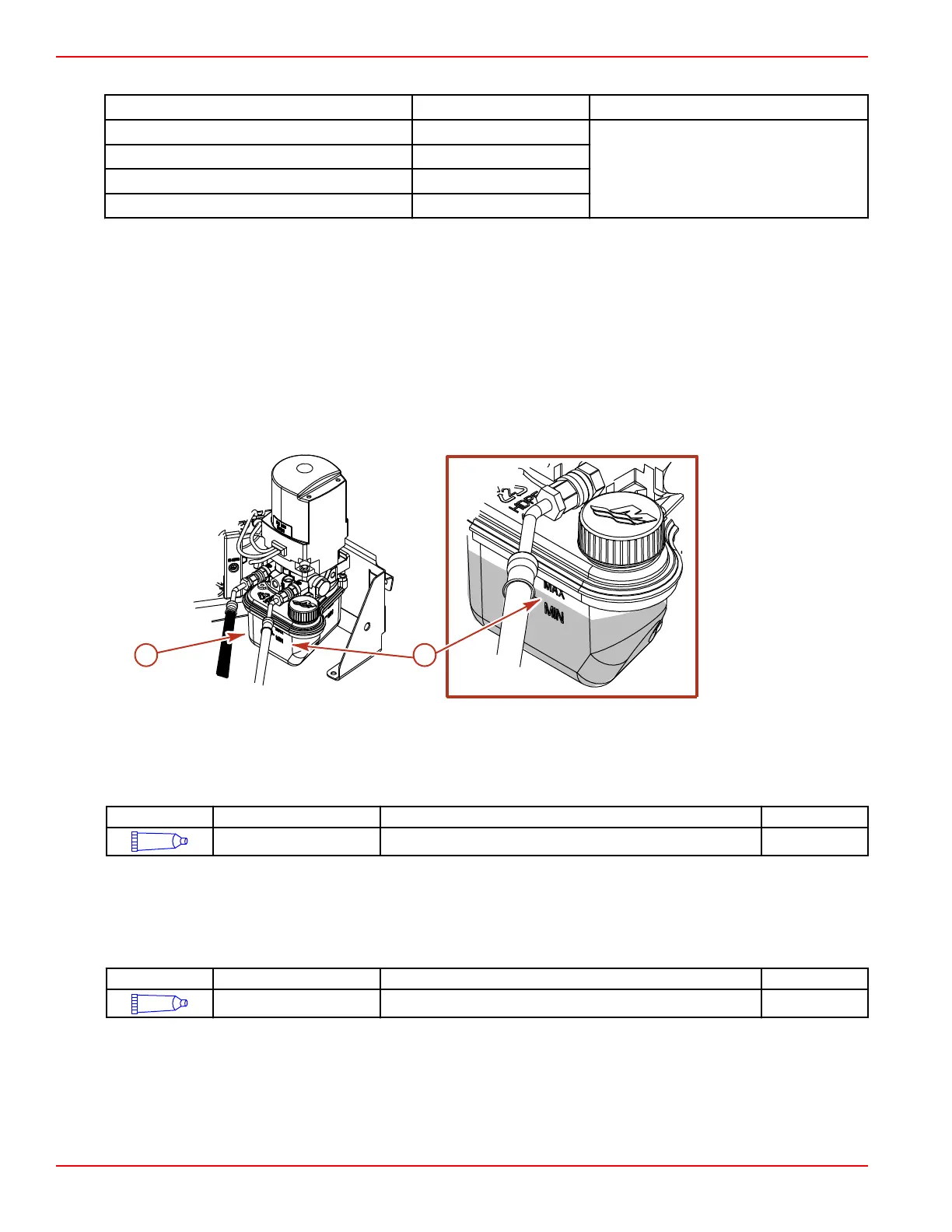

Power Trim Fluid
Checking
IMPORTANT: Check the oil level with the sterndrive unit in the full down/in position only.
1. Place the sterndrive unit in full down/in position.
2. Observe the oil level. Level must be between the "MIN" and "MAX" lines on the reservoir.
a - Reservoir
b - "MIN" and "MAX" lines
3. Fill as necessary with the specified fluid.
Tube Ref No.
Description Where Used Part No.
114
Power Trim and Steering Fluid Power trim pump 92-858074K01
Filling
1. Remove the fill cap from the reservoir.
NOTE: Fill cap is vented.
2. Add lubricant to bring level to the within the "MIN" and "MAX" lines on the reservoir.
Tube Ref No.
Description Where Used Part No.
114
Power Trim and Steering Fluid Power trim pump 92-858074K01
3. Install the cap.
Changing
Power trim fluid does not require changing unless it becomes contaminated with water or debris. Contact your authorized
Mercury MerCruiser dealer.
