POWER TRIM
90-855347R1 JANUARY 1999 Page 5B-35
REASSEMBLY
IMPORTANT: Components must be clean for reassembly. Any debris in the system
can cause the system to malfunction.
NOTE: Refer to “Tilt Ram Components” for proper O-ring sizes.
1. Apply Quicksilver Power Trim and Steering Fluid on O-rings prior to reassembly.

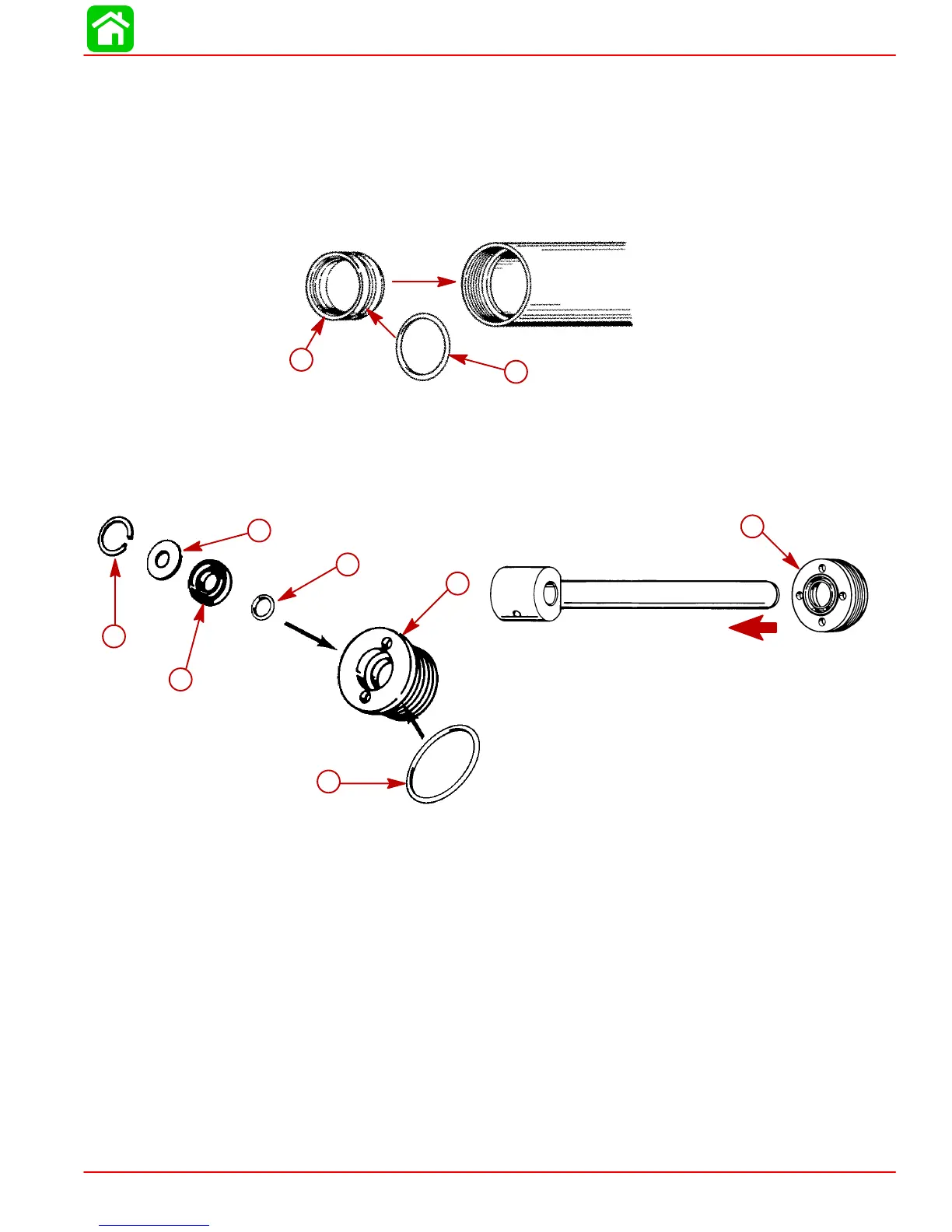

2. Install O-ring on Memory Piston Cup and install in cylinder.
51372
a
b
a-O-ring
b-Memory Piston Cup (Design 1 shown)
3. Assemble end cap.
4. Install end cap.
51376
f
a
b
b
c
d
e
a-End Cap
b-O-ring (2)
c-Scraper seal
d-Washer
e-Retaining Ring
f-End Cap
