POWER TRIM
Page 5B-36 90-855347R1 JANUARY 1999

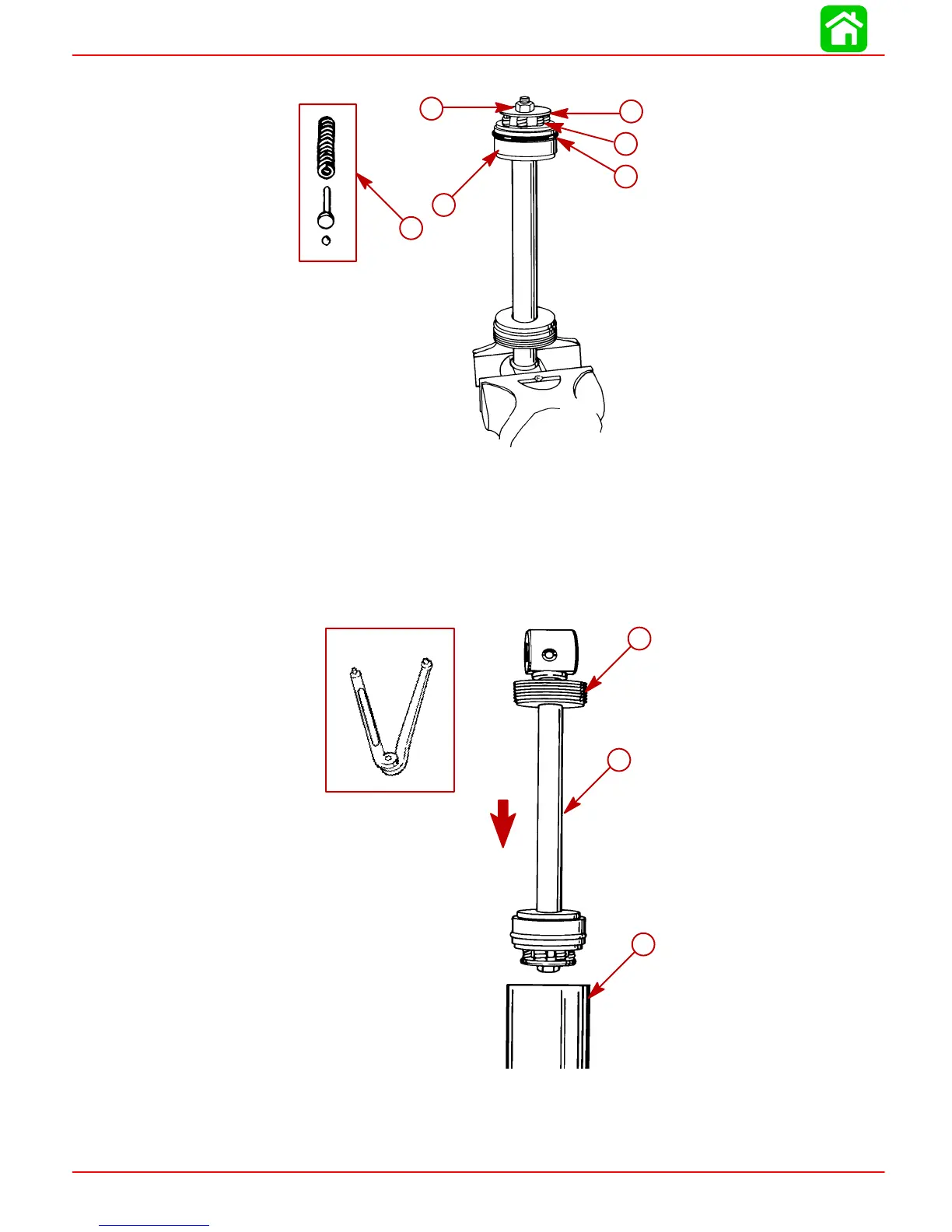

5. Install components on rod.
51340
51363
a
b
c
c
d
e
a-Piston
b-O-ring
c-Check Valve Assembly (7)
d-Washer
e-Bolt or Locknut. (Tighten securely)
6. Clamp cylinder in a soft jawed vise and install tilt rod assembly. Use spanner wrench
and tighten end cap securely.
51341
51337
91-74951
a
b
c
a-Cylinder
b-Tilt Rod Assembly
c-End Cap (Tighten Securely.) Use Spanner Wrench.

Mercury Optimax 150 Specifications

General

Horsepower	150 HP
Engine Type	V6
Alternator Output	60 amp / 756 watt
Starting	Electric
Steering	Remote
Displacement	2.5 L
Fuel Induction System	2-Stage Direct Fuel Injection (DFI)
Shaft Length	20", 25"
Dry Weight	431 lbs (20 in), 439 lbs (25 in)
