POWER TRIM
90-855347R1 JANUARY 1999 Page 5B-37

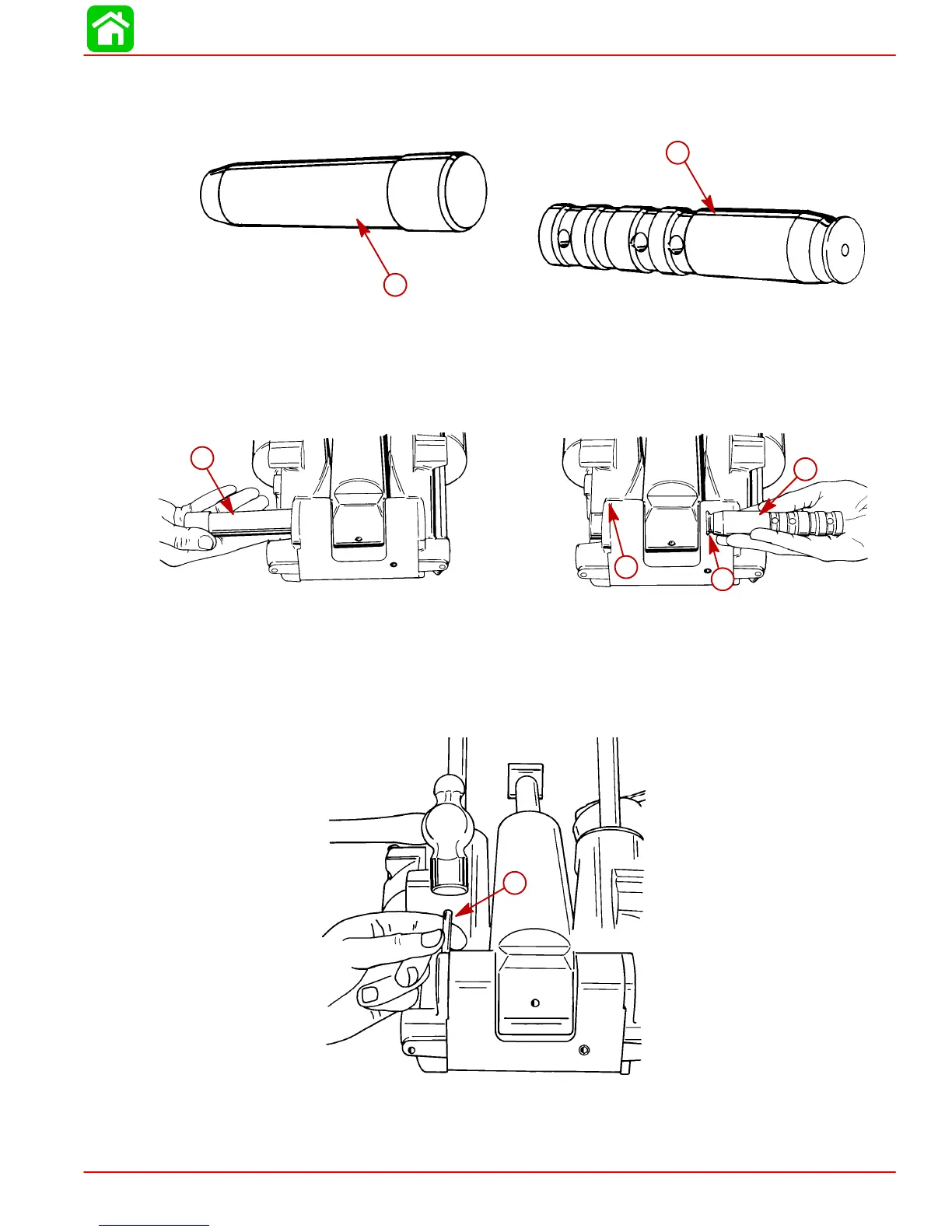

TILT RAM ASSEMBLY INSTALLATION
1. Lubricate alignment tool (91-11230) and shaft. Use Quicksilver Power Trim and Steer-
ing Fluid.
51369
a
b
a-Alignment Tool (91-11230)
b-Shaft
2. Align tilt ram and housing using alignment tool.
3. Install shaft.
51352
51348
b
c
d
a
a-Alignment Tool (91-11230)
b-Shaft
c-Groove
d-Hole [Groove (c) will Align with this Hole]
4. Drive pin in until flush.
51356
a
a-Pin (Drive Against Knurled End)

Mercury Optimax 150 Specifications

General

Horsepower	150 HP
Engine Type	V6
Alternator Output	60 amp / 756 watt
Starting	Electric
Steering	Remote
Displacement	2.5 L
Fuel Induction System	2-Stage Direct Fuel Injection (DFI)
Shaft Length	20", 25"
Dry Weight	431 lbs (20 in), 439 lbs (25 in)
