CONNECTING UP THE
DSP LOUDSPEAKERS
40
Connecting to other equipment
To connect two DSP loudspeakers to a Meridian CD
Player, Control Unit, or other digital source
/
"1/*1/
"-
-xÊi>`
-*ÊÕ`ëi>iÀÊqÊ->Ûi -*ÊÕ`ëi>iÀÊqÊ>ÃÌiÀ
iÀ`>ÊÊ*>ÞiÀÊÀÊÌÀÊ1Ì
xÊi>`
"-
"1/*1/Ê *1/
/Ê *1/
Ó£
/
"1/*1/
"-
"1/*1/Ê *1/
/Ê *1/
Ó£
/
"1/*1/

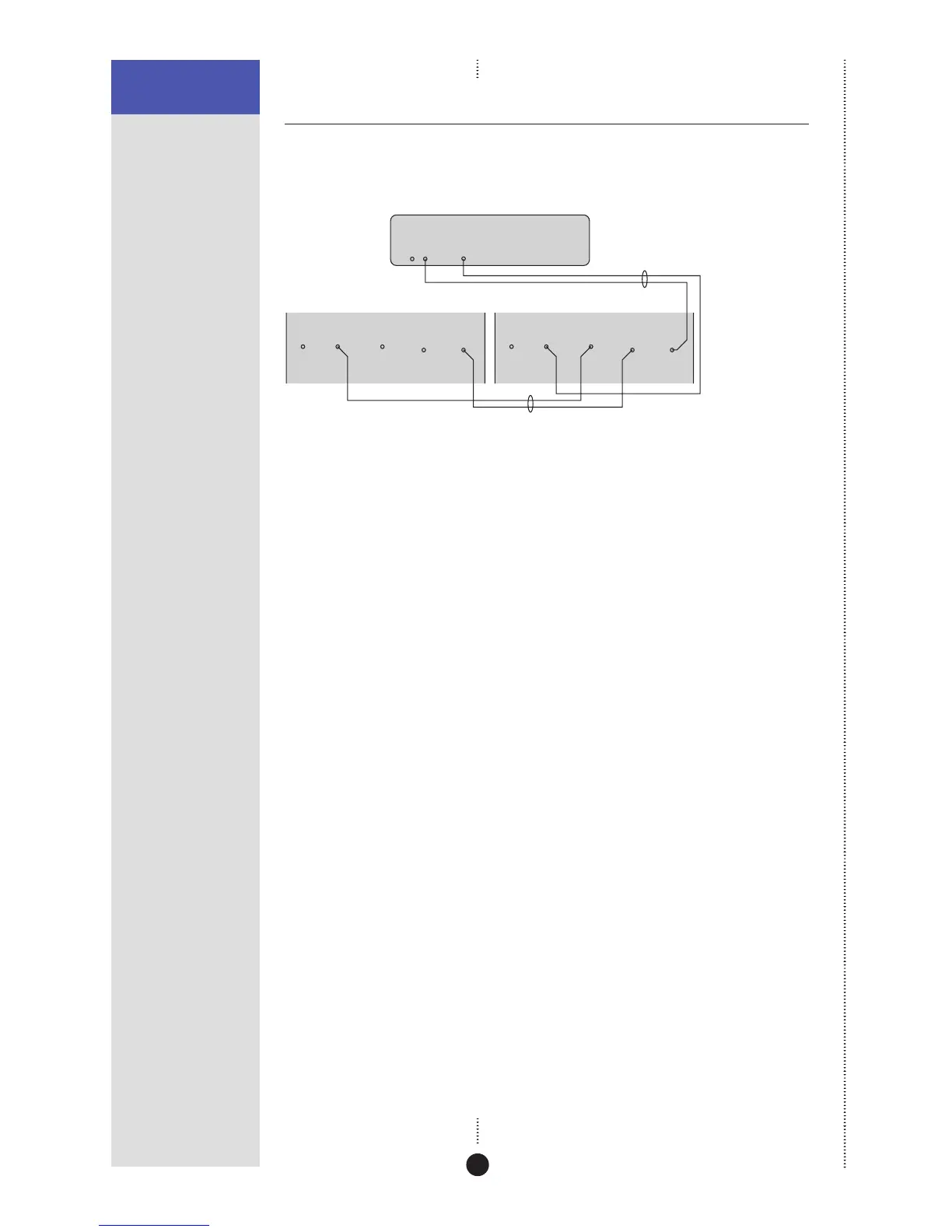

You can create a complete system by connecting a pair of DSP loudspeakers
directly to a digital source. The DSP loudspeakers include volume, balance,
and tone controls allowing you to control the system using the MSR+.
• Connect the DIGITAL OUTPUT and a COMMS socket from the Meridian
source or control unit to DIGITAL INPUT 1 and the COMMS input on the
DSP loudspeaker chosen as the master, using the M5 lead supplied.
• Connect the DIGITAL and COMMS outputs from the master DSP
loudspeaker to DIGITAL INPUT 1 and the COMMS input on the other
(slave) DSP loudspeaker, using the S5 lead supplied.
You can connect another digital source to DIGITAL INPUT 2, and then
confi gure the appropriate source selection key on the remote to select that
input: see Confi guring the sources, page 55.
See the chapter Using the DSP loudspeakers, page 45, for information
about controlling the DSP loudspeakers.
