Merik Security+ 411M - Attach T-Rail to Header Bracket

16
Clevis Pin
5/16" x 2-3/4"
Ring Fastener
HARDWARE SHOWN ACTUAL SIZE
Header Bracket
Idler Pulley Bracket
Header Wall
Garage
Door
Clevis Pin
5/16"x2-3/4"
Ring Fastener
Header Bracket
Chain
Pulley
Bracket
Rail

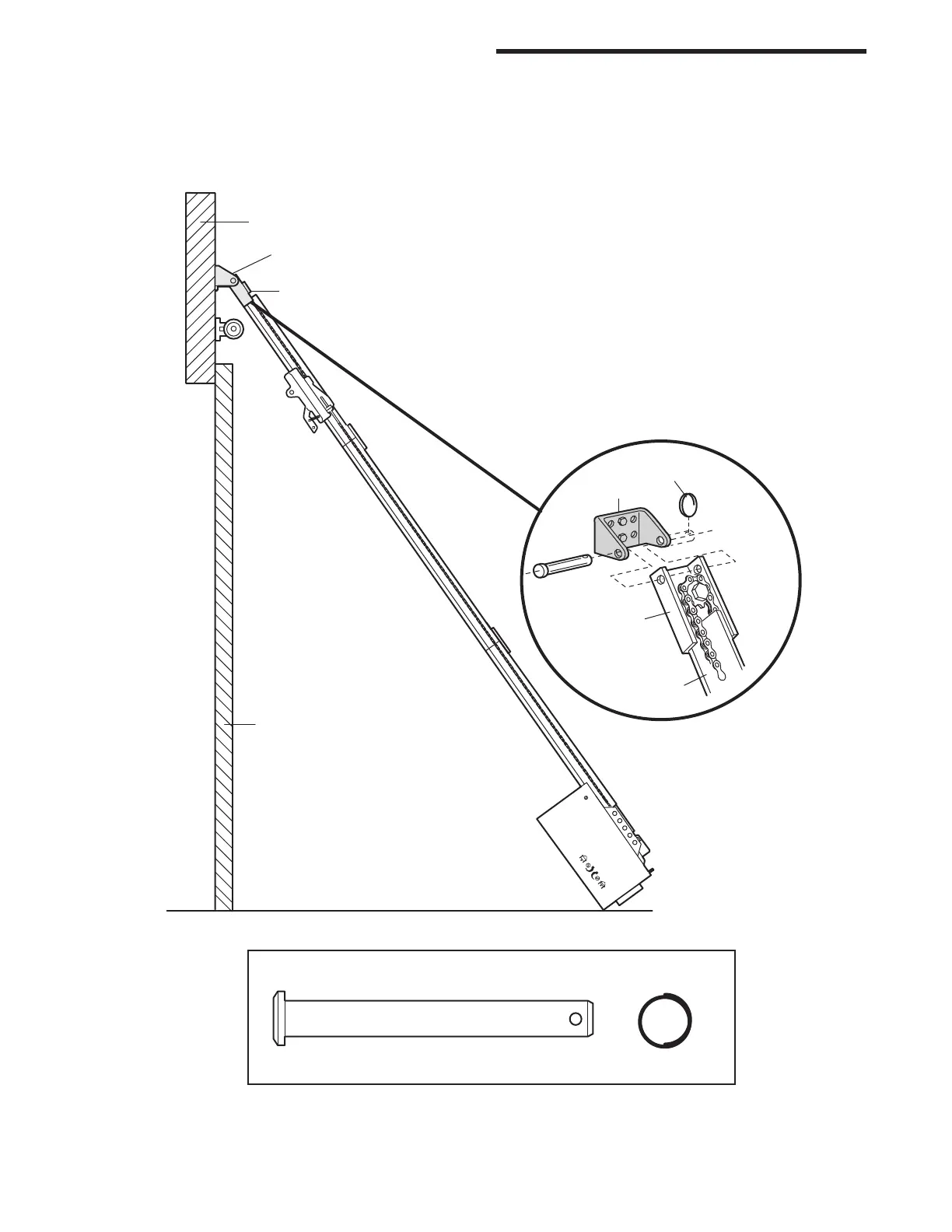

INSTALLATION STEP 3
Attach the T-Rail to the Header
Bracket
1. Position the opener on the garage floor below the
header bracket. Use packing material as a
protective base.
NOTE: If the door spring is in the way you’ll need
help. Have someone hold the opener securely on
a temporary support to allow the rail to clear the
spring.
2. Position the rail bracket against the header
bracket.
3. Align the bracket holes and join with a clevis pin
as shown.
4. Insert a ring fastener to secure.
