9
Trolley
Threaded
Shaft
Lock Washer
5/16"
Outer Nut
5/16"
Inner Nut
5/16"
Trolley
Temporary Stop
Screwdriver
TO GARAGE DOOR
Lock Washer
5/16"
Nut
5/16"-18
HARDWARE SHOWN ACTUAL SIZE

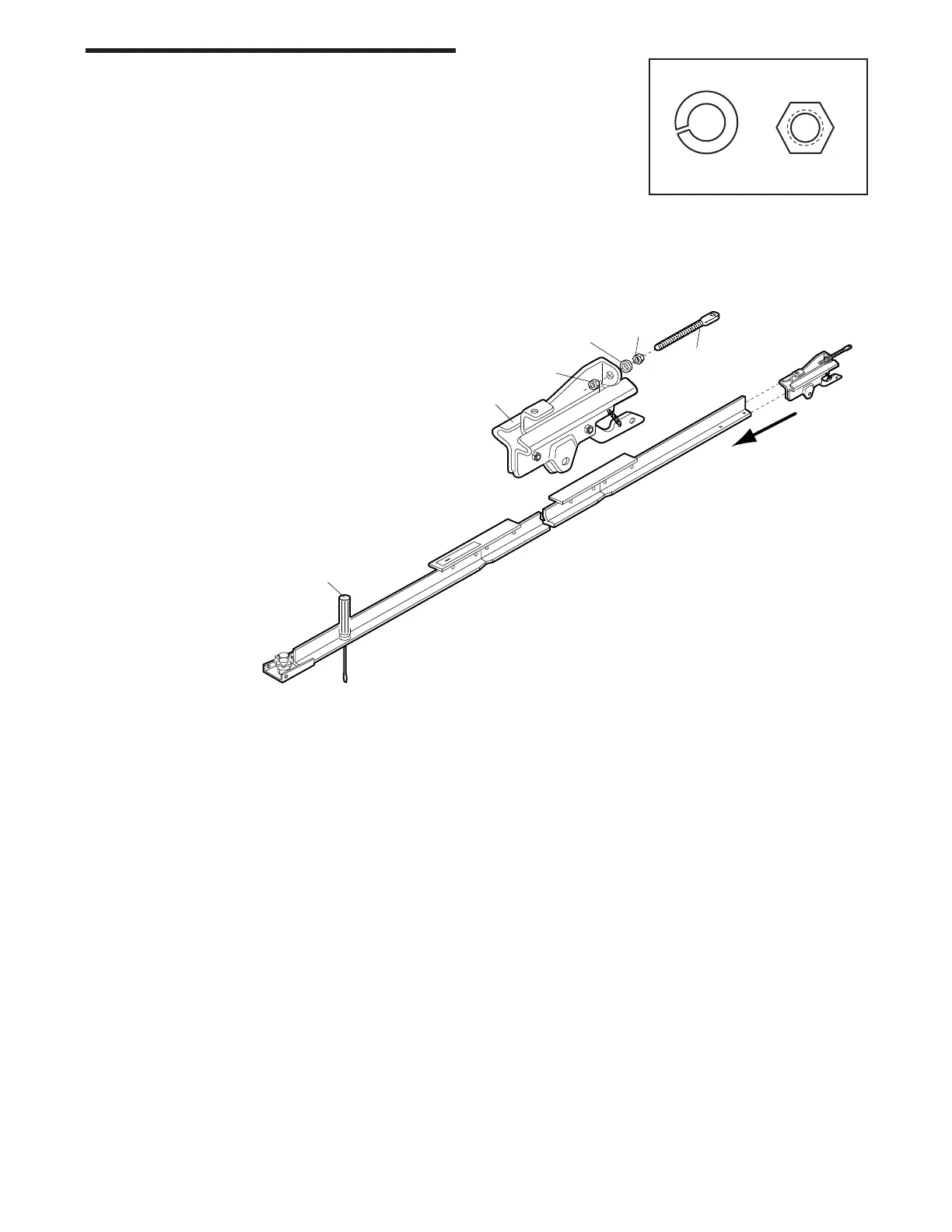

ASSEMBLY STEP 2
Install the Trolley
1. Attach the trolley threaded shaft to the trolley with
the lock washer and nuts as shown.
2. As a temporary stop, insert a screwdriver into the
hole in the front end of the T-rail.
3. Slide the trolley assembly along the rail to the
screwdriver stop.
NOTE: If trolley hits against any nuts on the T-rail,
the bolts and nuts were attached from the wrong
side and must be repositioned. Review Assembly
Step 1.
