Page 12 of 47
Chapter 3
Assembly of the Instrument
3.1 Installation of the FTC320
The FTC320 is designed for wall fastening. The four mounting holes are shown in Figure 3.1. M4
cylinder head bolts are suitable. Please remember to keep additional space for adequate assembly of
gas hoses and cables (see Chapter 10 "Appendix: Dimensional Drawing" for more information).
6mm
52 mm
20 mm
26 mm
80 mm
65 mm
144 mm
132 mm
4.5mm

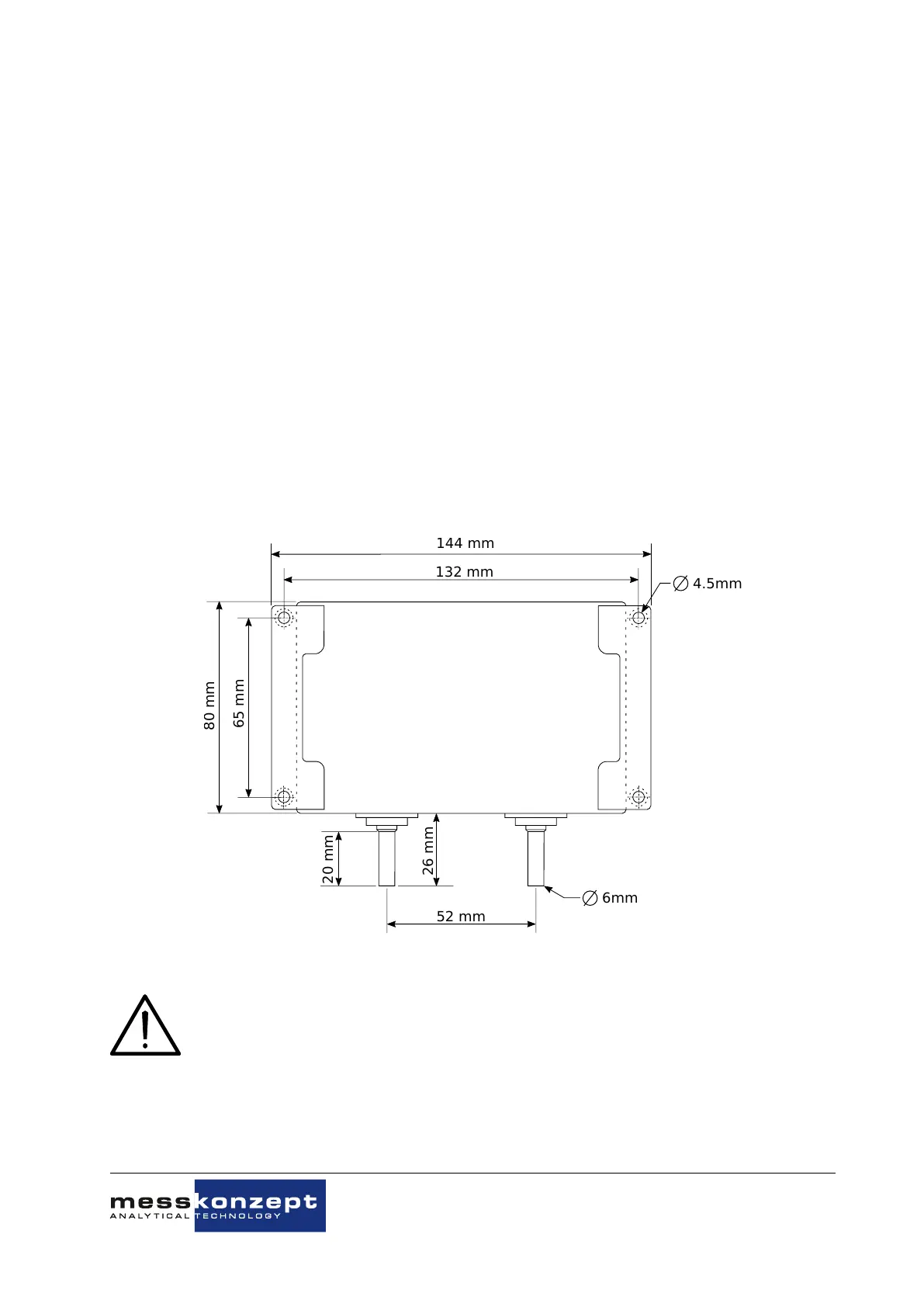

Figure 3.1: Mounting holes shown from the rear side of the housing.
If you are planning to lead flammable or toxic gases into the device, the device must be
installed in a well-ventilated area. All devices undergo a leakage test during production,
nevertheless a limited release of small gas quantities is possible.
