MessKonzept FTC320 - Expert Setup

Page 28 of 47
Diagnosis
Instr. Setup
Output Setup
Expert Setup
Current Out
Voltage Out 1
Voltage Out 2
Relay Setup
I/O Mode
Cal. frozen >
ESC/OK
0-10V >
Ch.5: H2 >
ESC/OK
ESC/OK
2-10V (Err) >
Ch.5: H2 >
I/O Mode
Cal. frozen >
ESC/OK
Const. Outp. >
Const. U-Out
ESC/OK
0-5V >
Ch.5: H2 >
ESC/OK
I/O Mode
Cal. active
>
ESC/OK
2/N2
0.30
[%] H

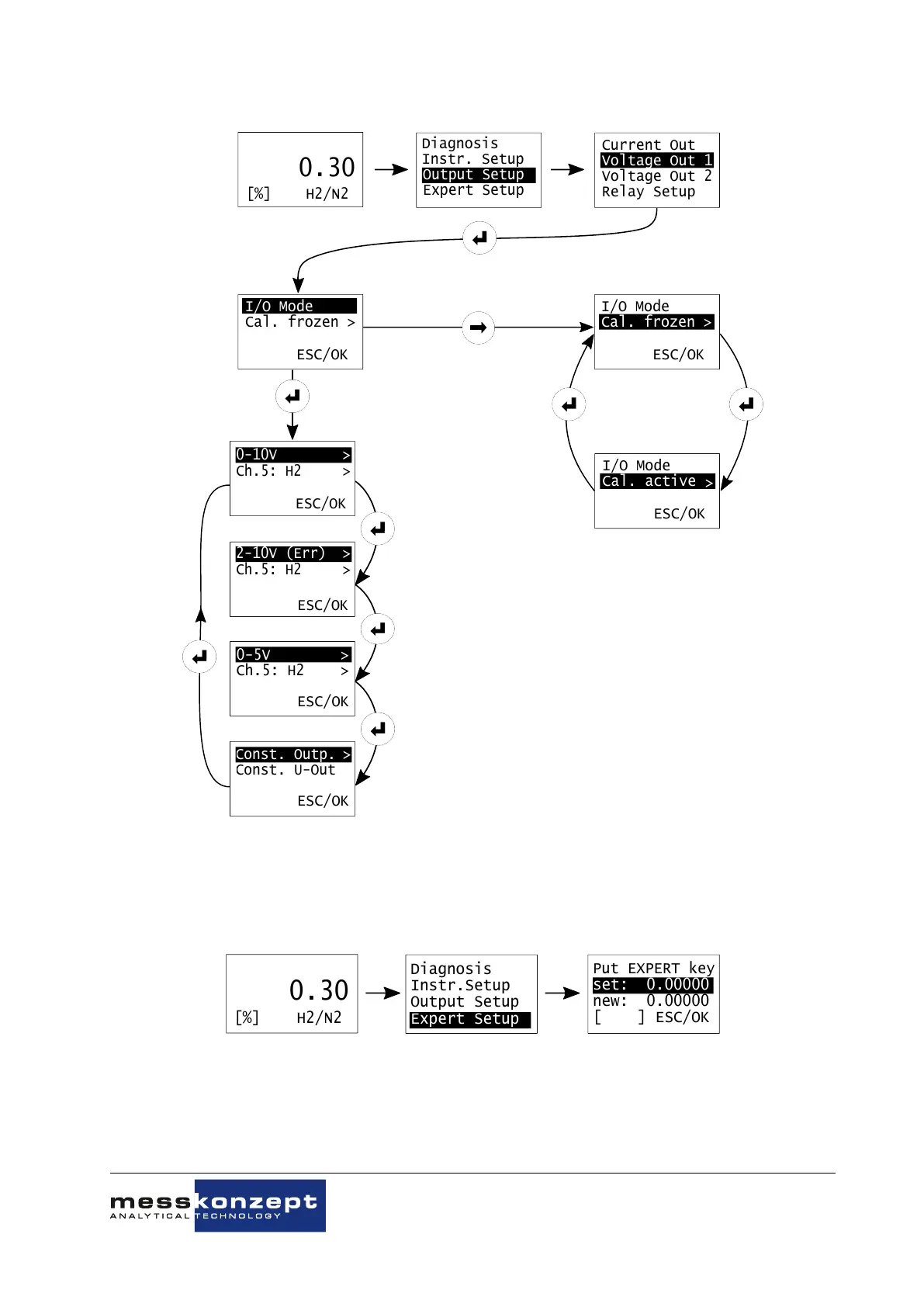

Figure 6.10: Voltage output setup.
6.5 Expert Setup
Put EXPERT key
set: 0.00000
new: 0.00000
[ ] ESC/OK
Diagnosis
Instr.Setup
Output Setup
Expert Setup
2/N2
0.30
[%] H
Figure 6.11: Expert Setup menu
The Expert Setup provides a couple of functionalities that should only be used by an advanced user or
expert:
File name:
FTC320 Operating Manual_1.09KD201009MPO5V04.pdf
