MessKonzept FTC320 User Manual

Page 31 of 47
If a reset to Factory Settings is performed without saving the calibration parameters
beforehand, a new calibration might be necessary.
If the device, against the given warnings, was reset to “Default Settings“ the parameters
relevant for the proper operation are overwritten by default values. With these values the
device will not work properly. The correct parameters (contact Messkonzept) have to be
written to the device again, see Section 6.5.1 or the manual of SetApp which you can find
on www.messkonzept.de.
6.5.4 Test of Relays, Analog Outputs and Connections
Current Out
Voltage Out 1
Voltage Out 2
Relays
Parameter
Access Modes
I/O Test
Rel 1 open
Rel 2 open
Rel 3 open
Test Curr.
set: 10.0000
new: 10.0000
[mAmp] ESC/OK
Test AOut1
set: 0.00000
new: 0.00000
[Volt] ESC/OK
Test AOut2
set: 0.00000
new: 0.00000
[Volt] ESC/OK
Diagnosis
Instr.Setup
Output Setup
Expert Setup
Current Out
Voltage Out 1
Voltage Out 2
Relays
Current Out
Voltage Out 1
Voltage Out 2
Relays
Current Out
Voltage Out 1
Voltage Out 2
Relays

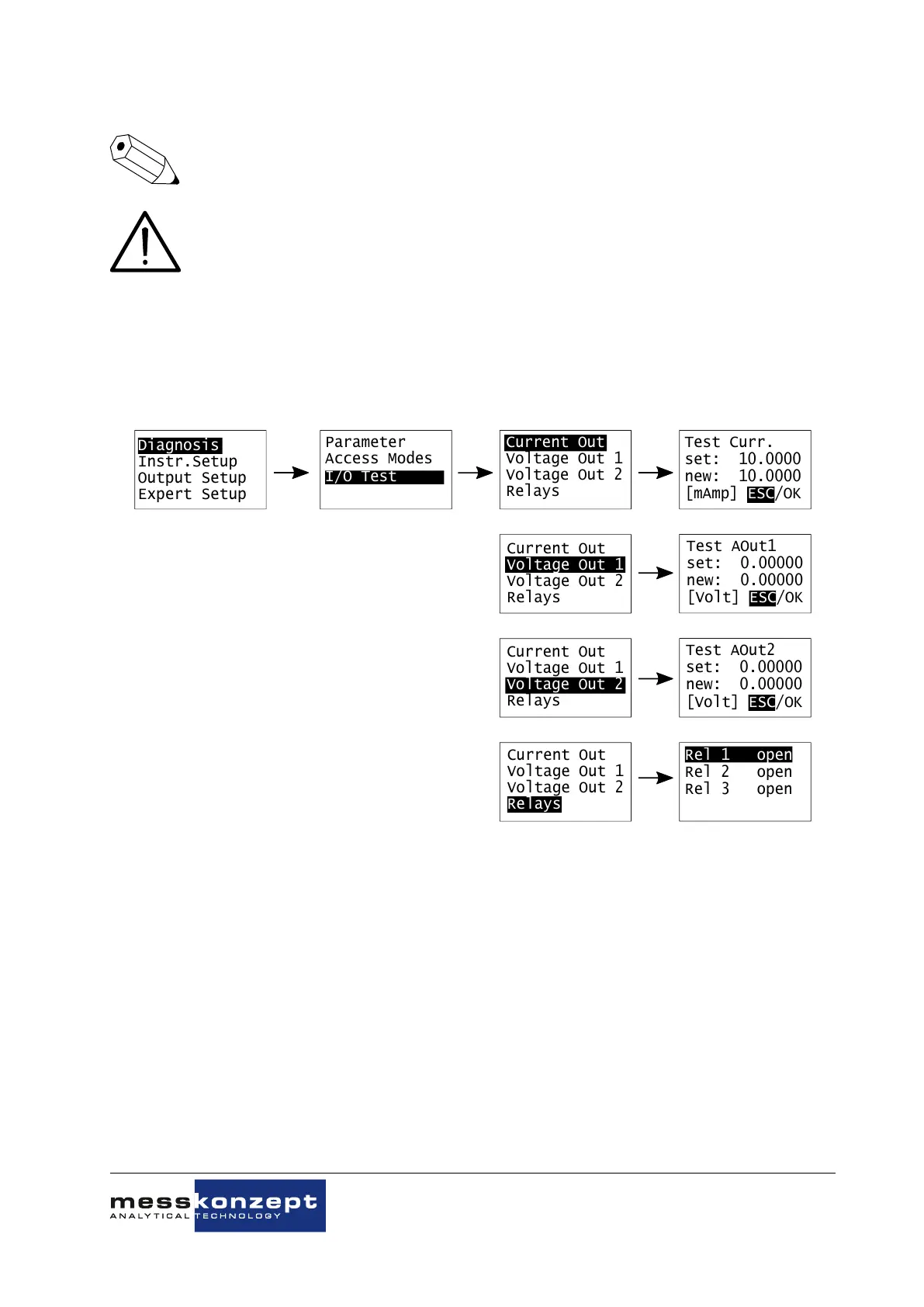

Figure 6.15: I/O Test menu
The “I/O Test“ menu provides the opportunity to set the following properties to a defined status in order
to test subsequently connected equipment:
• Relay 1 (Rel 1) (open/closed)
• Relay 2 (Rel 2) (open/closed)
• Common Relay (Rel 3) (open/closed)
• Current of current loop
• Voltage for Analog Out 1
• Voltage for Analog Out 2
