Chapter 6
General instrument settings
6.1 Top Level Main Menu
Diagnosis
Instr. Setup
Output Setup
Expert Setup

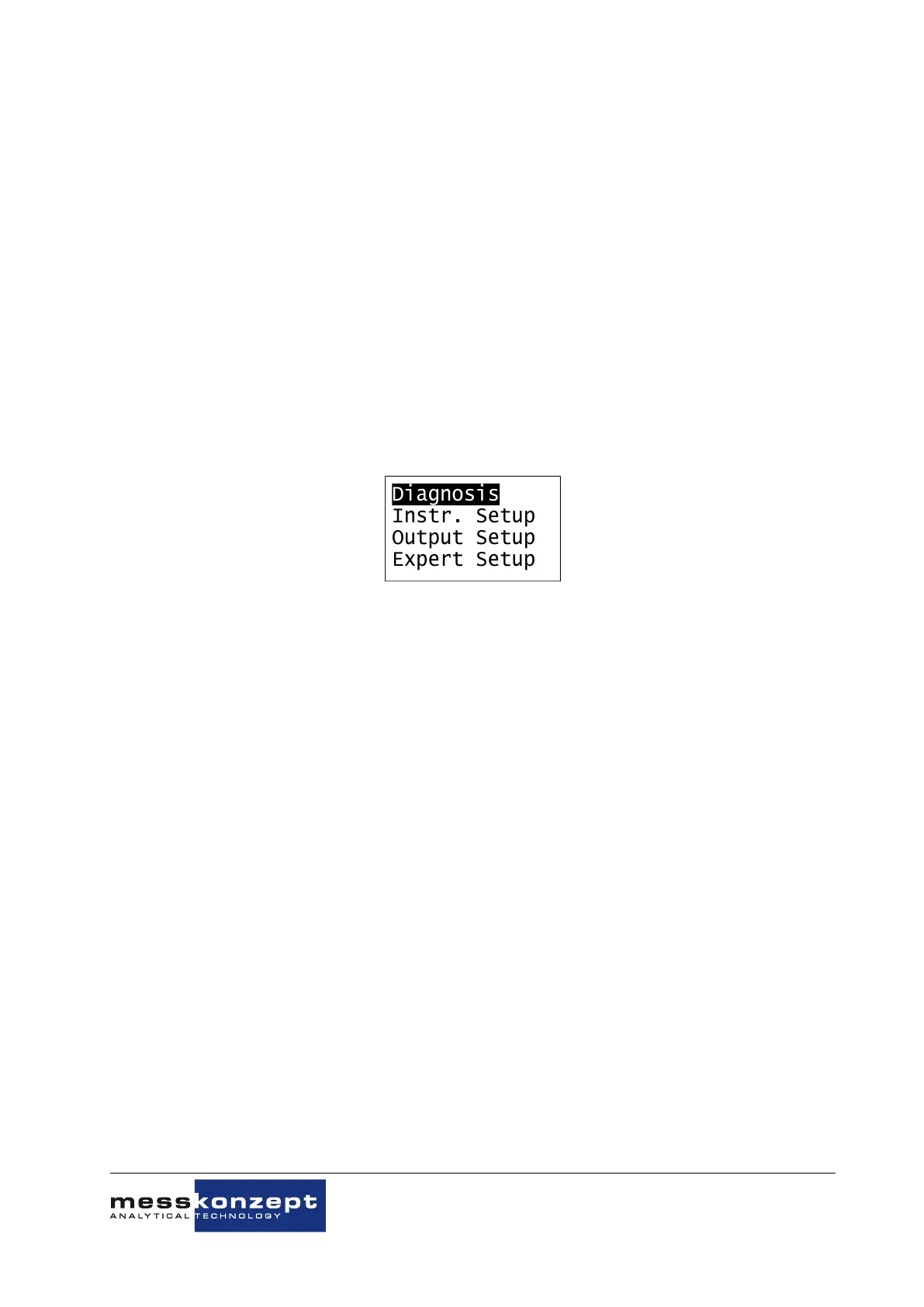

Figure 6.1: main menu of the FTC320
The main menu of the general instrument settings can be accessed from the operation screen (display
of measured values) by pressing the <UP> key. Pressing the <UP> key again will take you back to the
working screen.
Other submenus are accessible from the main menu. To select the following menu item in the main
menu, press the <RIGHT> key. Pressing the <ENTER> button selects the highlighted menu item with
a black background and opens the submenu.
The menu paths shown in the following chapters all start from the main menu.
Note: To enter the general device configuration, an Expert Code must be entered, which unlocks the
device for one hour. By default, this is 222.0000. The code can be changed in the Expert Setup menu.
6.2 Diagnosis
The FTC320 has several integrated diagnosis and test functions that can be accessed through the
diagnosis menu. The menu provides the following functions:
• A parameter menu in which device-internal parameters/variables can be read out
• An error menu in which pending errors are listed
