4.1 Display
4.2 Keys

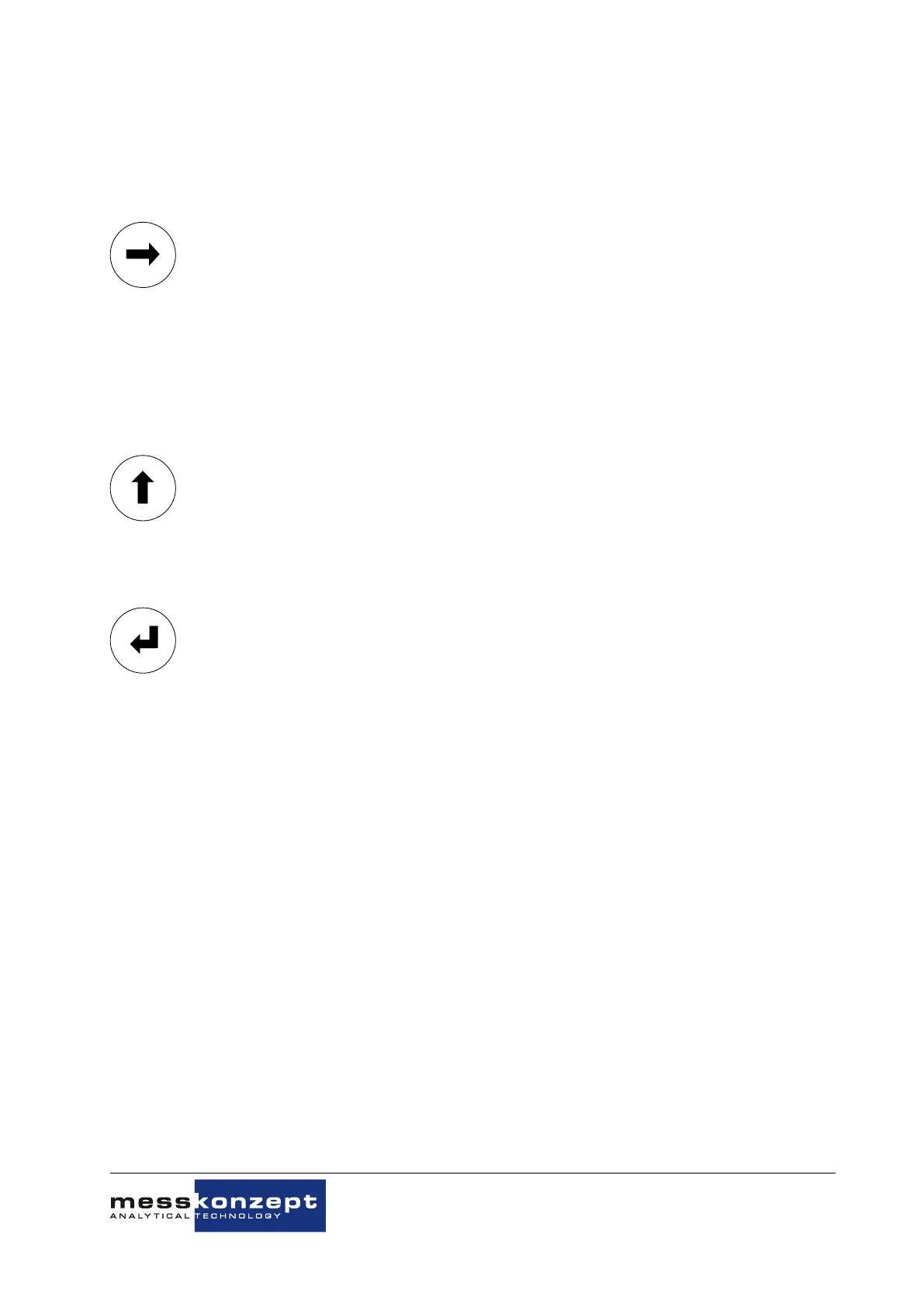

RIGHT / Selection Key
On the operation screen, the <RIGHT> key can be used to select one of the measured
variables displayed on the work screen. With the <ENTER> key the menu related to the
measured parameter can be called up, in which, for example, the calibration routine of the
parameter can be accessed.
The <RIGHT> key enables the operator to scroll through the various menu items of menus
and submenus. The currently selected menu item is marked by black background and is
called with the <ENTER> key.
In submenus requiring numerical inputs, the <RIGHT> key scrolls to the next digit and to
“ESC/OK“ at the end.
UP / Selection Key
In menus or submenus, the <UP> key quits the recent menu and brings you back to the
menu above and ultimately to the main menu.
To quit menus with an “ESC/OK“ option, select one of these fields with the <RIGHT> key
and confirm with <ENTER>.
In submenus requiring numerical inputs, the <UP> key changes the selected digit.
ENTER / Termination Key
The <ENTER> key calls the item that is marked as selected (selection is indicated through
black background highlighted text). Menu items are selected by the <RIGHT> key. In sub-
menus with an “ESC/OK“ option the <ENTER> key confirms the selection of “ESC“ or “OK“.
