6.2.1 Parameter Menu
Parameters
Errors
I/O Test
Article No
set: 0.000000
-------------
P000 OK
Diagnosis
Instr.Setup
Output Setup
Expert Setup
2/N2
0.30
[%] H

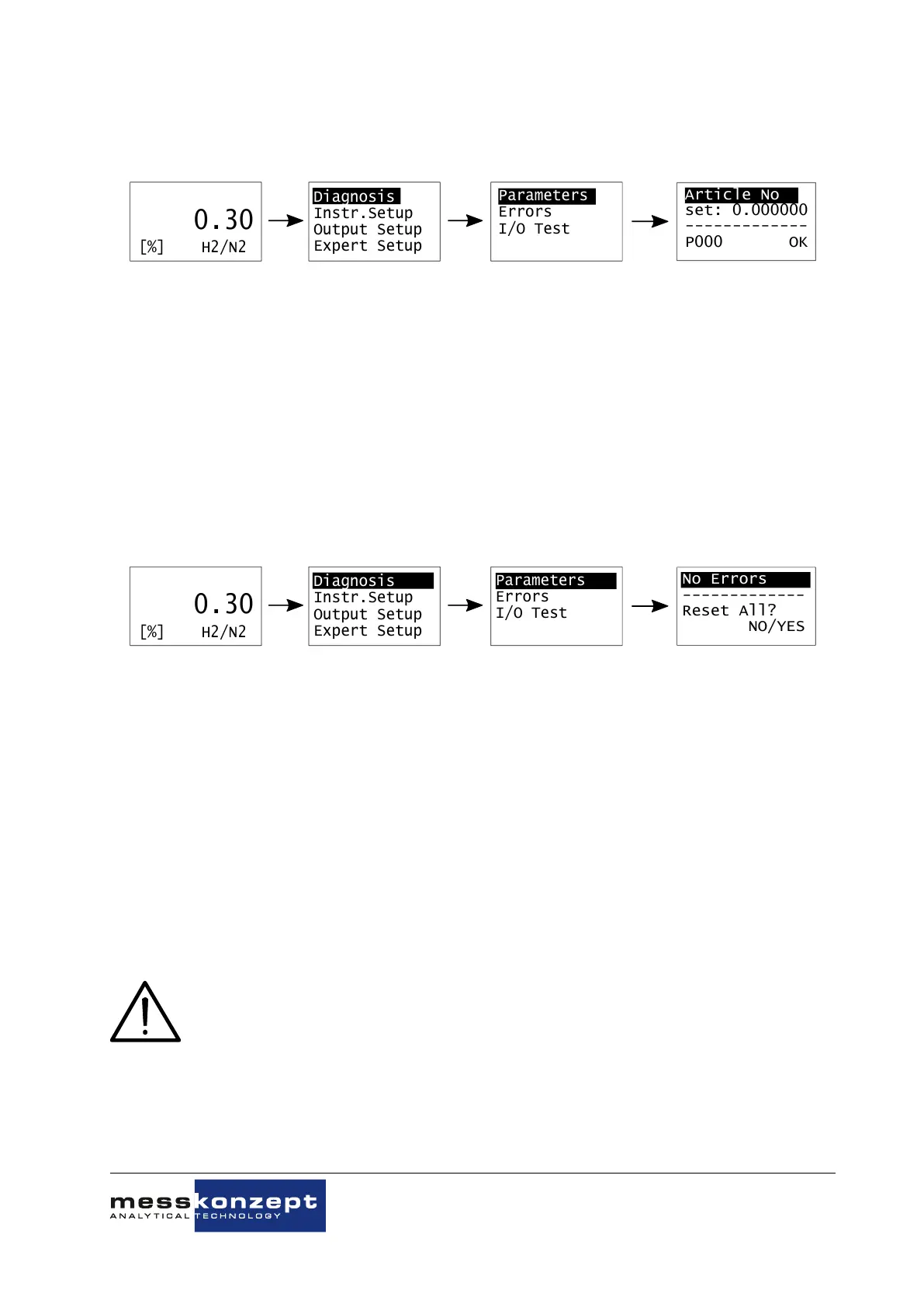

Figure 6.2: parameter menu for advanced diagnosis
The configuration of the FTC320 is defined by a list of internal parameters. The “Parameter“ menu gives
read-only access to these parameters. This may help an experienced user to diagnose malfunctions
caused by wrong settings. The parameter menu allows you to scroll through the entire parameter list.
Contact Messkonzept for detailed information on the listed parameters. The first display line contains
the name of the parameter, in the second line the parameter value is shown. The last line shows
the parameter index. To move forward in the list, press <ENTER>, to move backwards, press <Up>.
To leave the parameter menu mark <OK> by pressing <RIGHT> and confirm with <ENTER>. Some
parameters can be changed in the expert setup, see Section 6.5 for more information.
6.2.2 Errors
Parameters
Errors
I/O Test
No Errors
-------------
Reset All?
NO/YES
Diagnosis
Instr.Setup
Output Setup
Expert Setup
2/N2
0.30
[%] H
Figure 6.3: error menu
When the device is in the measuring mode or calibrating, several parameters are continuously checked
for plausibility. The parameters checked, the list of possible errors and the ranges defining a plausible
value can be found in Chapter 8 "Appendix: System Errors".
Errors are indicated by a flashing red light on the front panel. The menu “Errors“ gives access to the
list of current errors . “No Errors“ indicates that no error is pending, for pending errors the name of
the error is given. Pressing <ENTER> proceeds to the next pending error and <UP> to the previous
error. To leave the error menu press <RIGHT> once or twice to select NO or YES and the <ENTER>
key to confirm your selection. An error reset will affect maintenance-warnings only - all other errors and
warnings are continuously monitored and automatically reset when the error no longer persists.
Defective devices must be disconnected from the process! This applies for apparent dam-
age of the device such as physical damage but also in the case of unclarified malfunctions
in the operation. Separate the device from the process pneumatically (both gas inlet and
gas outlet) and remove the power supply from the device.
