Instrument display
This chapter describes the device start-up routine. The warmup screen, see Figure 5.1, shows the
block temperature while the block warms up. After the warmup, the device switches to the operation
screen, see Figure 5.2. From the operation screen the main menu can be opened.
Note: To make device-specific settings on the device, it is necessary to enter an Expert code (preset to
222.0000).
5.1 warmup Screen
Warm Up
Set: 63.00 °C
Act: 58.30 °C

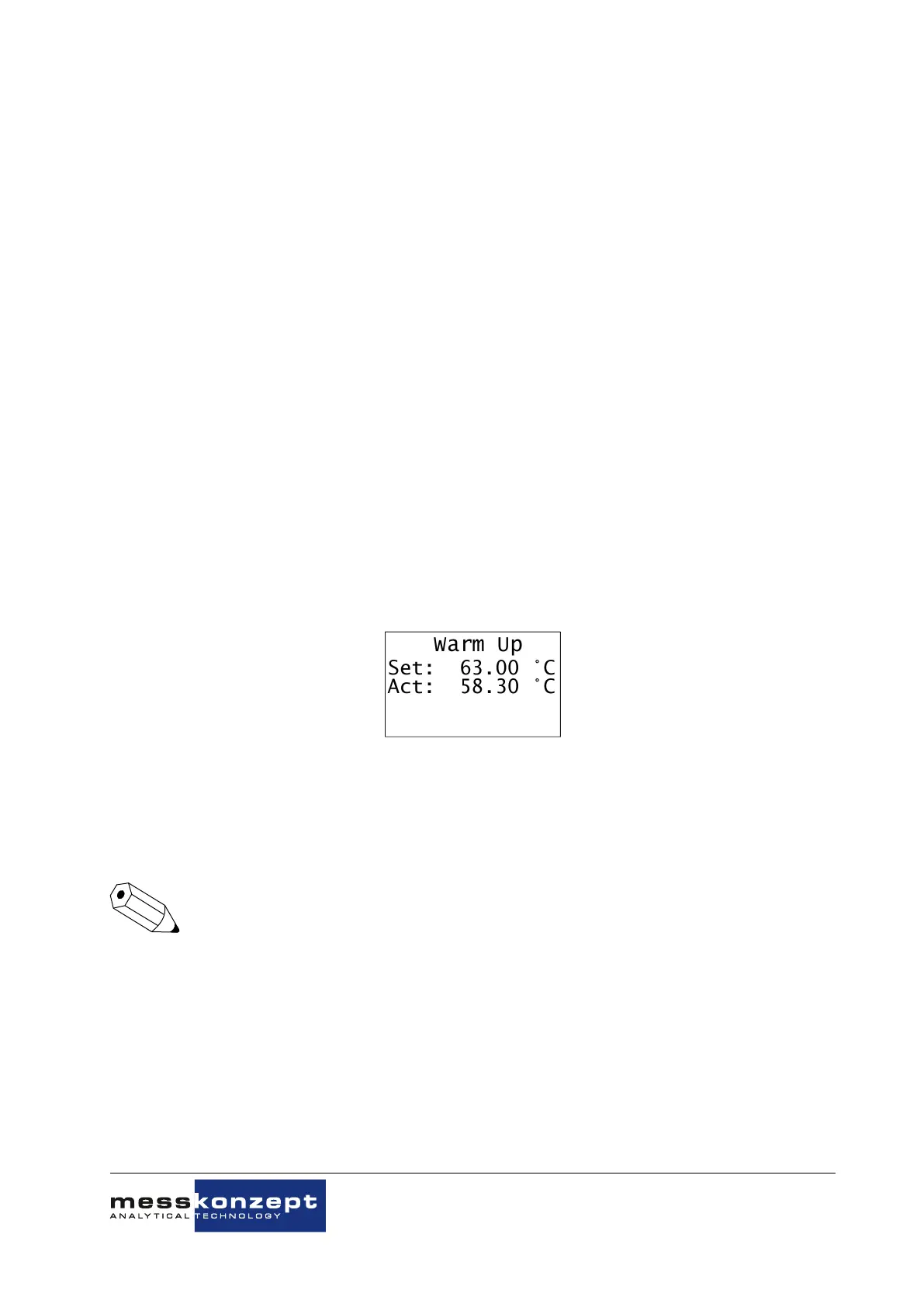

Figure 5.1: warmup screen of the FTC320
The warmup screen shows the current block temperature during warmup in the center of the screen
(see Figure above). The target value of the block temperature, 63
◦
C for the standard version or 70
◦
C
for the high temperature version, is shown in the bottom line of the screen.
Pressing the <UP> key during warmup switches directly to the operation screen and
activates the current loop. The displayed concentration value will not be precise until the
needed block temperature is reached.
5.2 Operation Screen
After warmup the operation screen is shown (see Figure above). Depending on the version of the
instrument, either one measured value or several measured values are displayed on the working screen.
From the operational screen the main menu can be opened using the <UP> key.
