The minimum and maximum values given in the table indicate the limit values of the transition region.
The analog output is held at these values when the measured variable falls below or rises above the
limit value.
e.g. 0-5 Vol.% H2 in N2
0mA
4mA
3.8mA
20mA
20.5mA
24mA
Measurement information
Transition region
Error/ Outage

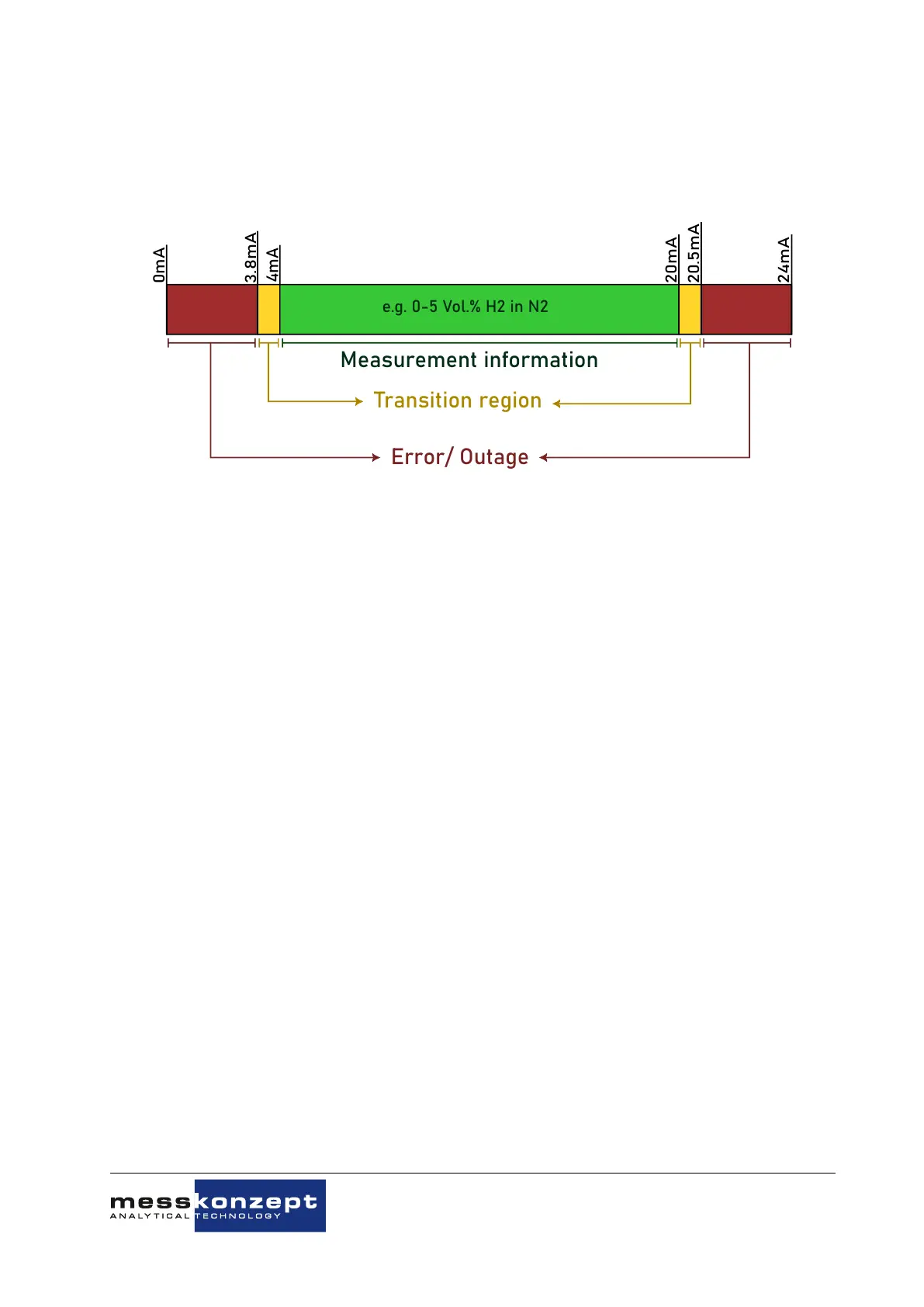

Figure 6.7: The current output ranges and their indication. The mode 4-20mA (Err) corresponds to the
NAMUR recommendation NF43.
