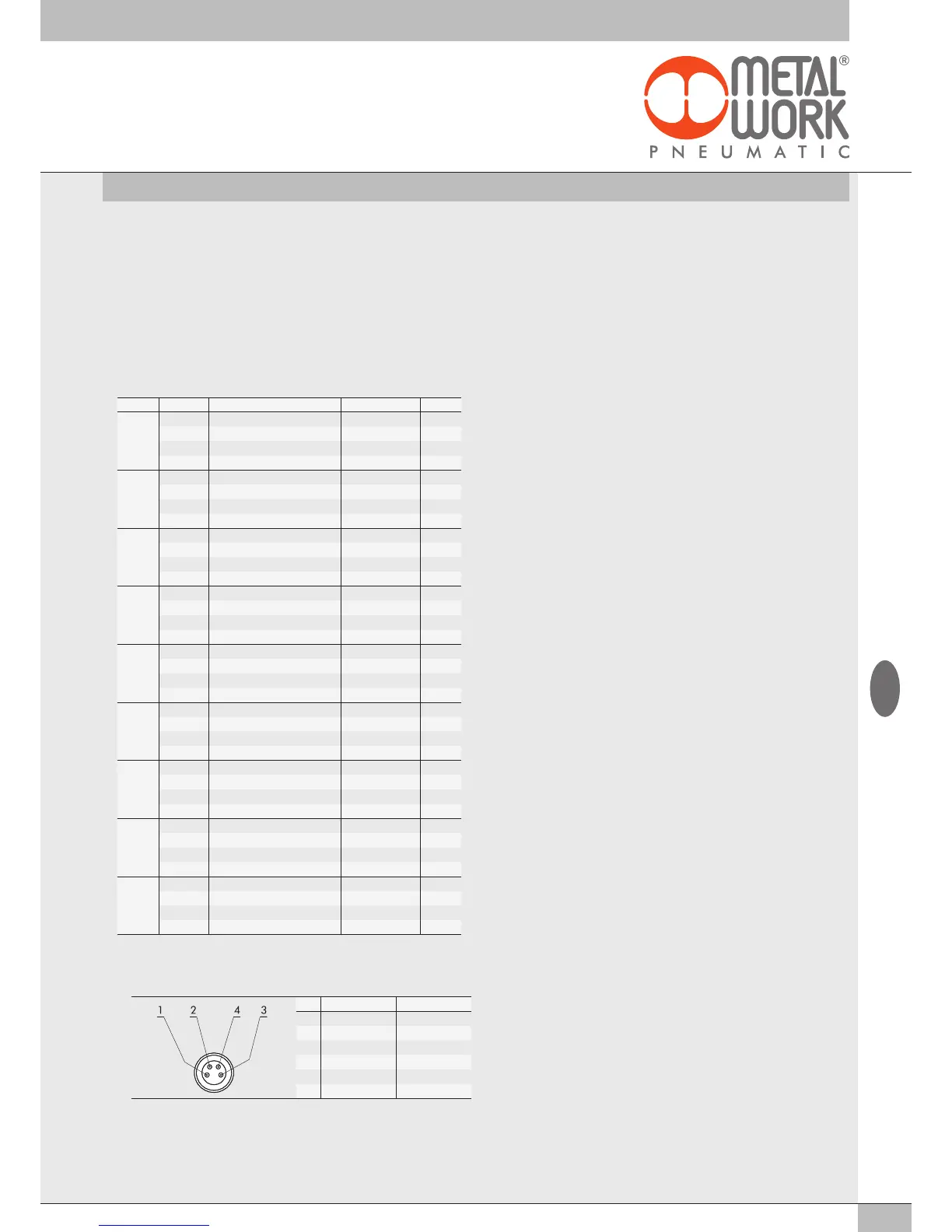

Metal Work EB 80 - 3.3.3 Digital 6-Output M8 Module + Electrical Power Supply; 3.3.3.1 Auxiliary Power Supply

49
3.3.3 Digital 6-Output M8 Module + electrical power supply
Each module can handle up to 6 digital outputs and can be configured just like the M8 8 digital output module, using the object
No.1 - No.9 06 Digital Outputs 02282S03.
It comes with a connector for auxiliary power supply, which makes it possible to increase the current supplied by the module and system.
It must be added to the system when multiple output modules are installed.
The auxiliary power supply for this module also powers all successive input/output modules.
M8 Digital Output Module 6 + electricity supply is protected against short-circuits.
All successive Signal Modules have the same protection.
The current supplied is the sum of all the currents supplied by the M8 Module 6 digital output module plus that supplied by all the following signal
modules connected upstream another M8 6 digital output module + power supply.
Object: No.1 - No.9 06 Digital Outputs 02282S03
Module Parameter Function Default value Default
1°
Par1 Polarity 1-6 0 PNP
Par2 Operating state 1-6 0 NO
Par3 Fail safe 1-4 85 Reset
Par4 Fail safe 5-6 85 Reset
2°
Par5 Polarity 1-6 0 PNP
Par6 Operating state 1-6 0 NO
Par7 Fail safe 1-4 85 Reset
Par8 Fail safe 5-6 85 Reset
3°
Par9 Polarity 1-6 0 PNP
Par10 Operating state 1-6 0 NO
Par11 Fail safe 1-4 85 Reset
Par12 Fail safe 5-6 85 Reset
4°
Par13 Polarity 1-6 0 PNP
Par14 Operating state 1-6 0 NO
Par15 Fail safe 1-4 85 Reset
Par16 Fail safe 5-6 85 Reset
5°
Par17 Polarity 1-6 0 PNP
Par18 Operating state 1-6 0 NO
Par19 Fail safe 1-4 85 Reset
Par20 Fail safe 5-6 85 Reset
6°
Par21 Polarity 1-6 0 PNP
Par22 Operating state 1-6 0 NO
Par23 Fail safe 1-4 85 Reset
Par24 Fail safe 5-6 85 Reset
7°
Par25 Polarity 1-6 0 PNP
Par26 Operating state 1-6 0 NO
Par27 Fail safe 1-4 85 Reset
Par28 Fail safe 5-6 85 Reset
8°
Par29 Polarity 1-6 0 PNP
Par30 Operating state 1-6 0 NO
Par31 Fail safe 1-4 85 Reset
Par32 Fail safe 5-6 85 Reset
9°
Par33 Polarity 1-6 0 PNP
Par34 Operating state 1-6 0 NO
Par35 Fail safe 1-4 85 Reset
Par36 Fail safe 5-6 85 Reset
3.3.3.1 Auxiliary power supply
The maximum current supplied by the modules connected downstream the Digital 6-Output M8 Module + power supply is 4A.
PIN Colour Function
1 Brown +VDC
2 White +VDC
3 Blue GND
4 Black GND
