Page 18 Micro Rain Radar MRR-2 METEK
2012-02-29 Valid for MRR Service Version 6.0.0.3 / Firmware 6.00
7. Connect power cable of the Junction Box to the mains voltage of
230 VAC.
8. Check the power supply of the Transceiver: If the cabling is Ok a green
LED in the Transceiver indicates the correct supply.

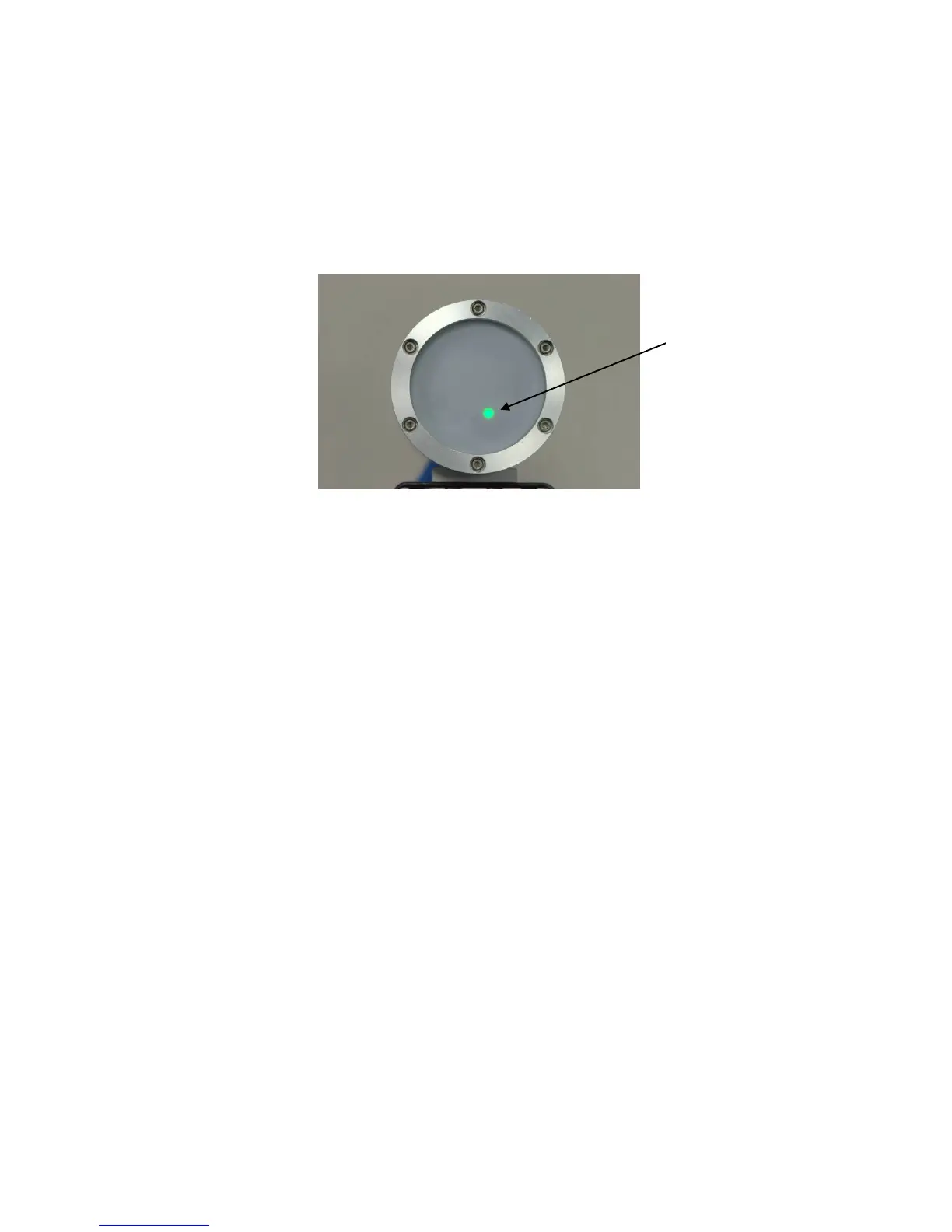

Figure 10: Transceiver with LED
9. Establish the communication between the control program MRR-2
and the RCPD-firmware.
10. Check the correct data transmission and recording.
