25.6.2009 Rev. 3.0
Functional description
4

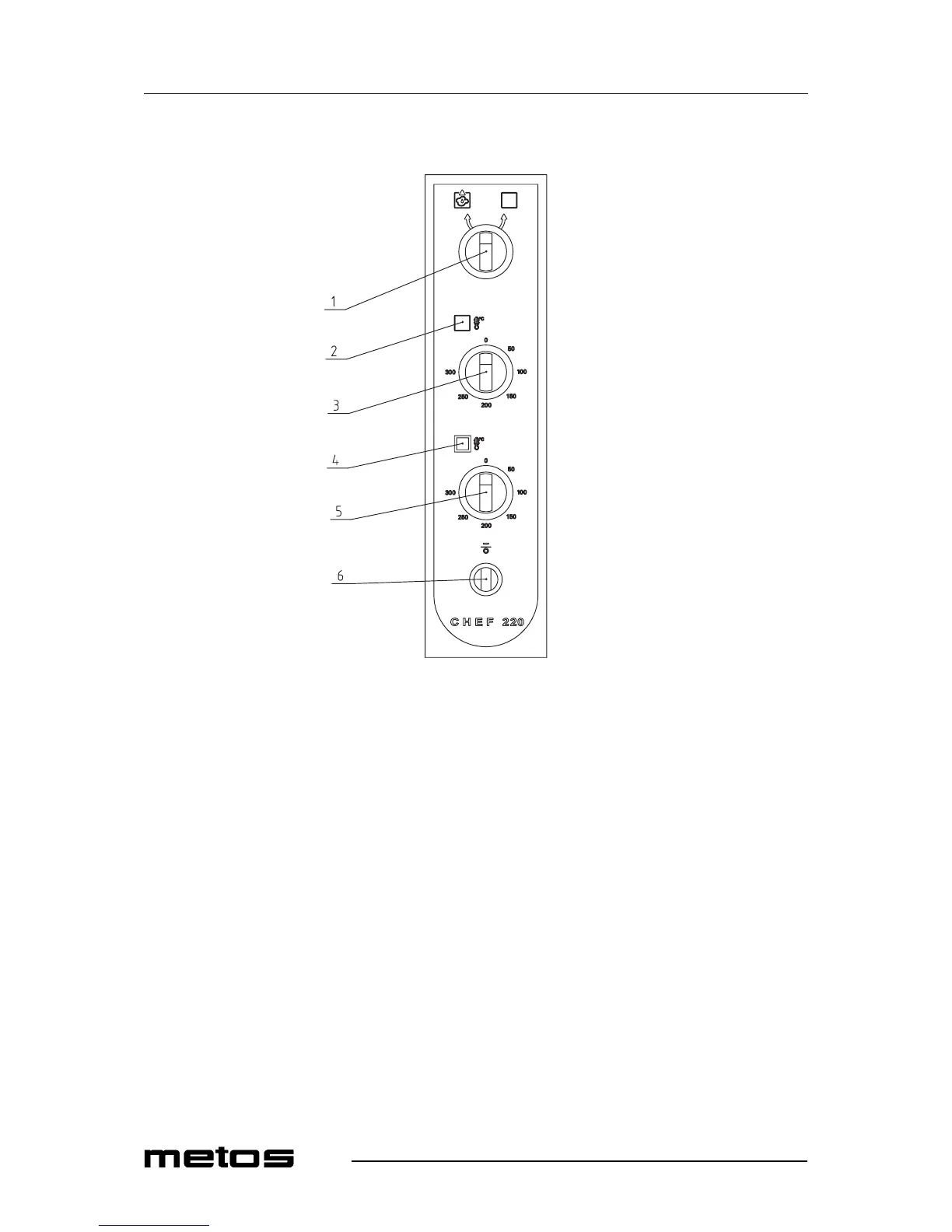

3.3.1 Control panel switches
Control panel switches Chef 220
1. Steam exhaust valve. The valve can be used to remove excess steam and
moisture from inside the oven.
2. Upper heating on - thermostat lamp. The yellow lamp is on when the heat-
ing elements are on.
3. Upper heating thermostat. To set the temperature between +50ºC and
+300ºC.
4. Lower heating on - thermostat lamp. The yellow lamp is on when the heat-
ing elements are on.
5. Lower heating thermostat. To set the temperature between +50ºC and
+300ºC.
6. Main switch. The green light is on when the oven is switched on.
