MI 2087 AL2 EasiTEST Instrument description
10
2.3 Bottom side

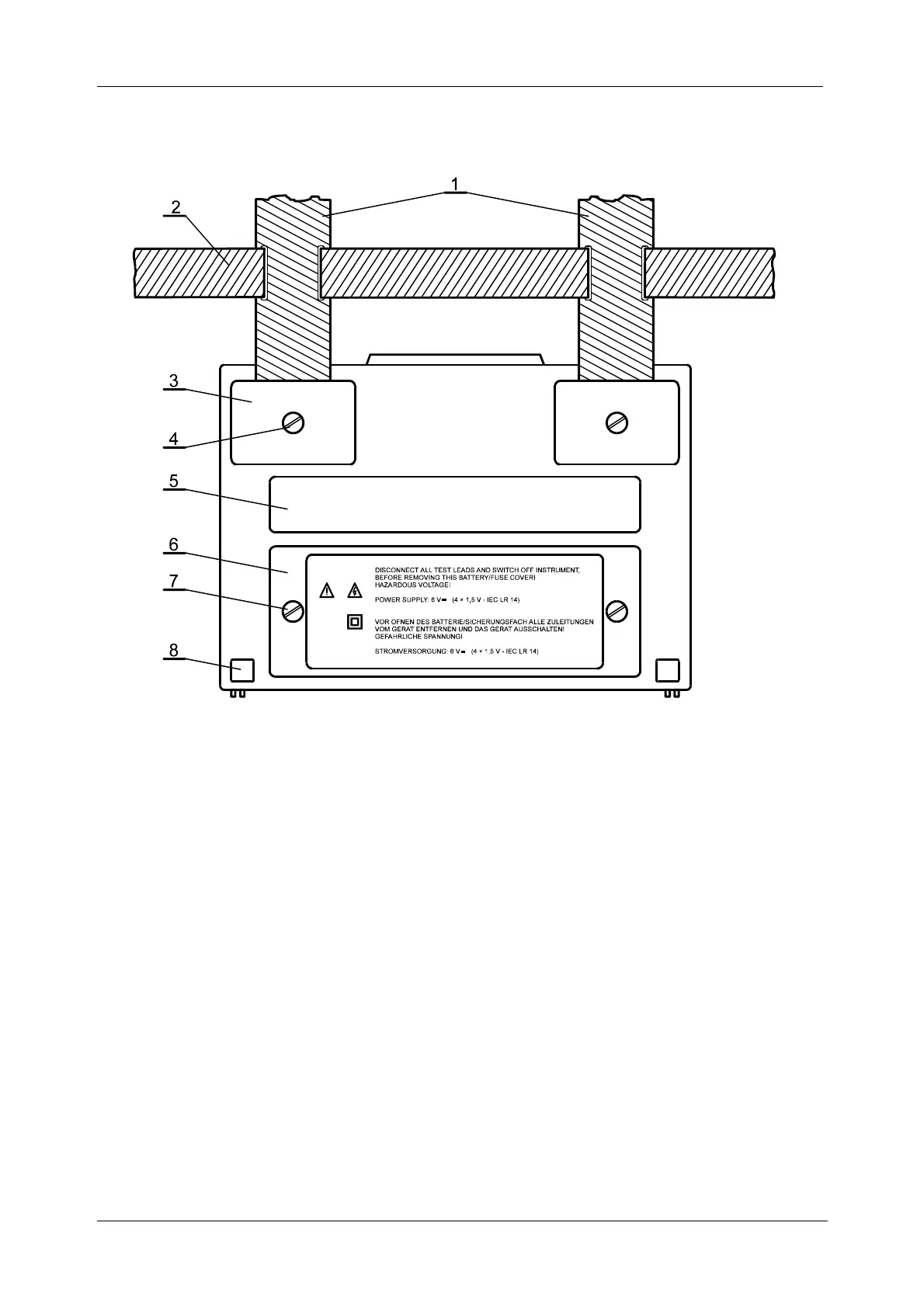

Fig. 3: Bottom side
Legend:
1........Nylon strip (it serves for carrying the instrument around the neck).
2........Auxiliary nylon strip (it serves for fixing the instrument around operator' body).
3........Plastic cover (it fixes nylon strip to the instrument). There is a screw under the
cover which has to be unscrewed when opening the instrument for service or
calibration purpose.
4........Screw (unscrew it to remove carrying strip or to open the instrument).
5........Label with measurement ranges.
6........Battery/fuse compartment cover.
7........Screw (unscrew it to replace batteries or blown fuse).
8........Rubber foot.
