MI 3109 EurotestPV Lite Instrument description
12
3 Instrument description
3.1 Front panel

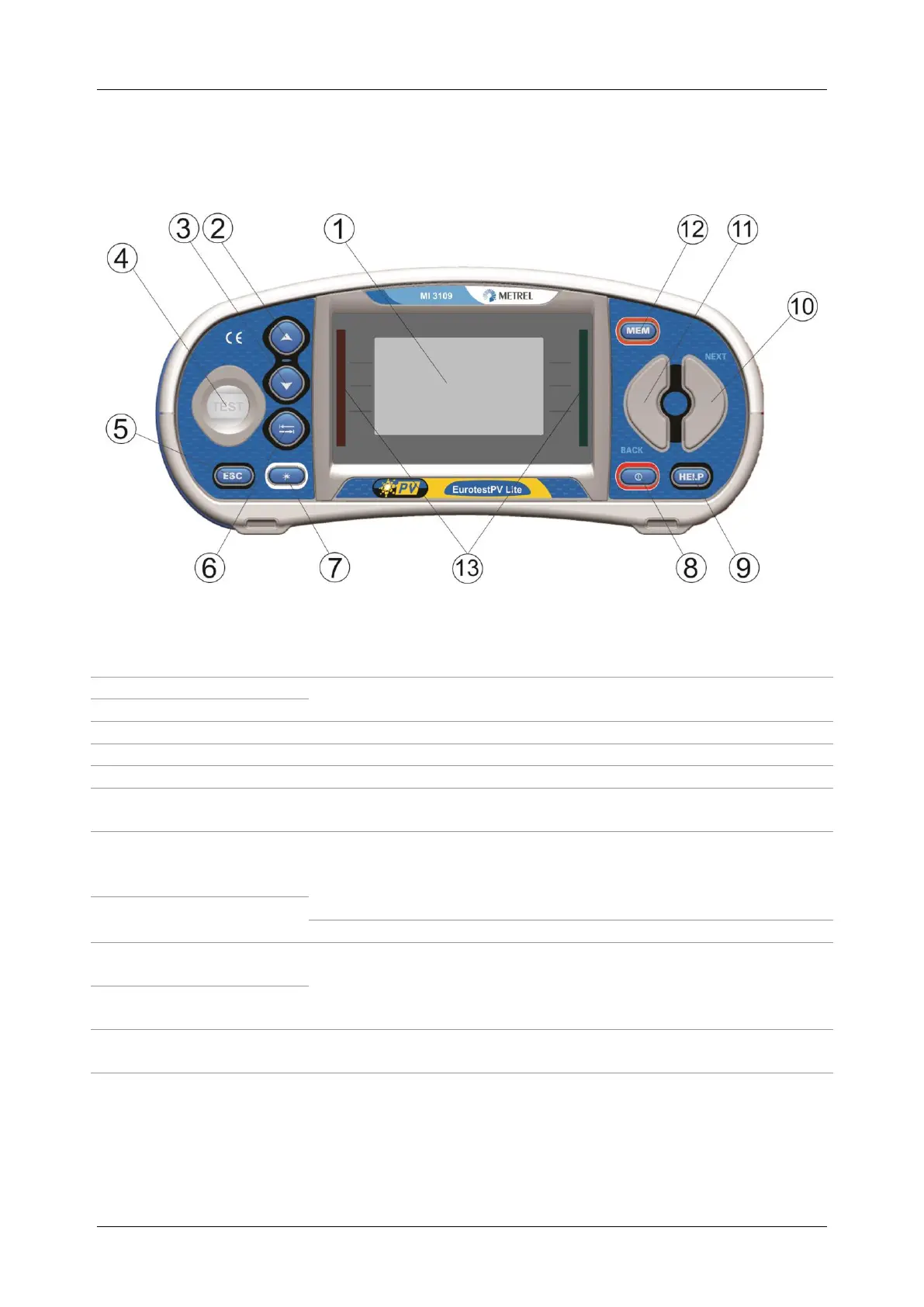

Figure 3.1: Front panel
Legend:
1
LCD
128 x 64 dots matrix display with backlight.
2

Modifies selected parameter.
3

4
TEST
Starts measurements.
5
ESC
Goes one level back.
6
TAB
Selects the parameters in selected function.
7
Backlight,
Contrast
Changes backlight level and contrast.
8
ON / OFF
Switches the instrument power on or off.
The instrument automatically turns off 15 minutes after the
last key was pressed
9
HELP / CAL
Accesses help menus.
Calibrates test leads in Continuity functions.
10
Function selector
- NEXT
Selects test function.
11
Function selector
- BACK
12
MEM
Stores / recalls memory of instrument.
Stores clamp and solar settings.
13
Green LED
Red LED
Indicates PASS / FAIL of result.
