MI 3109 EurotestPV Lite Instrument operation
25

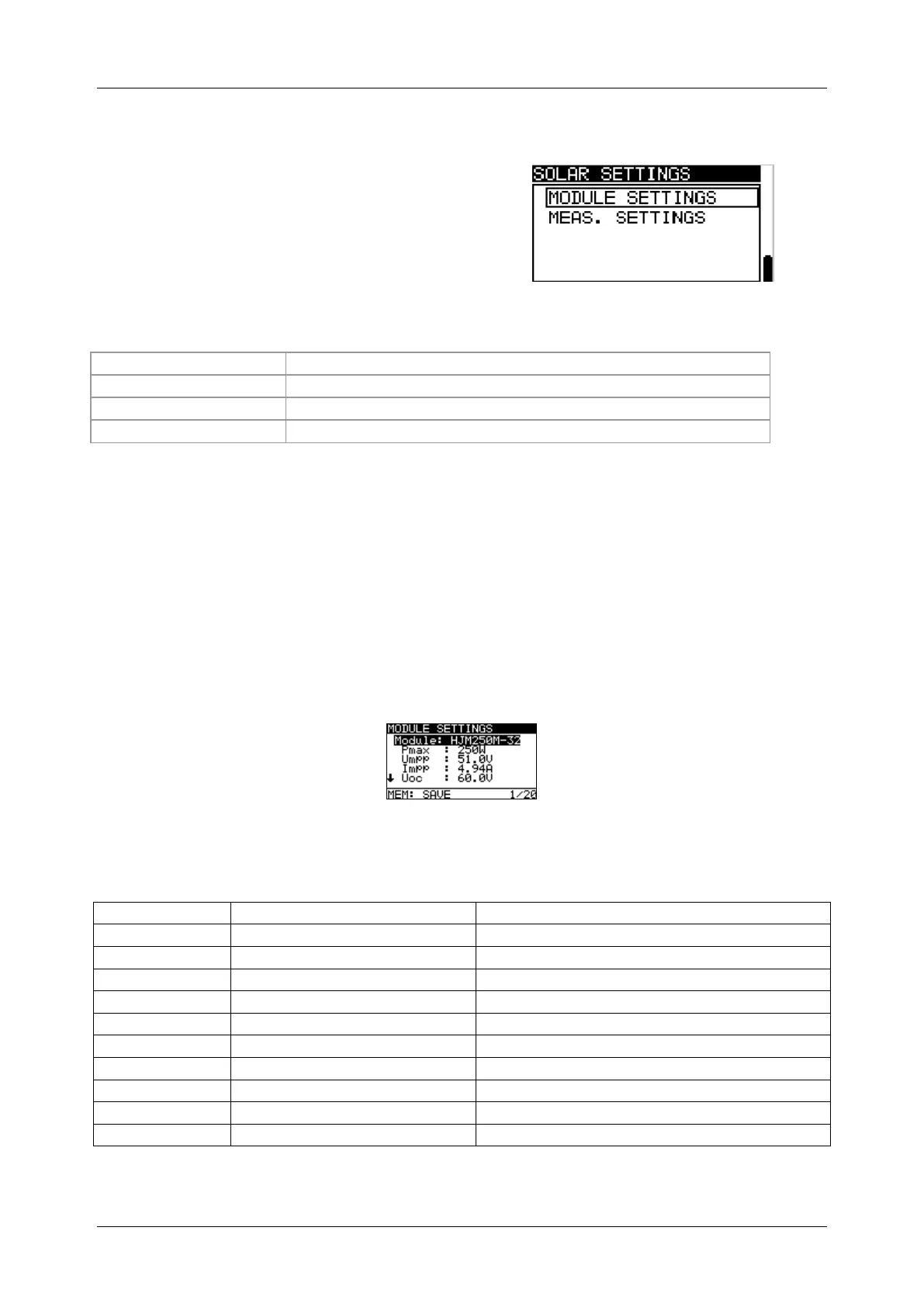

4.4.7 Solar settings
In Solar settings parameters of PV modules
and settings for PV measurements can be
set.
Figure 4.12: Solar settings
Keys:
 / 
Selects option.
TEST
Enters menu for changing parameters.
ESC
Exits back to settings menu.
Function selector
Exits back to main menu without changes.
PV module settings
Parameters of PV modules can be set in this menu. A database for up to 20 PV
modules can be created / edited. Parameters are used for calculation of STC values.
Note:
 The database can be also created on the PC or mobile device and then sent to
the instrument. PCSW EurolinkPRO and some Android applications support this
feature.
Figure 4.13: PV module settings menu
Parameters of PV module:
Module
PV module name
Pmax
1 W ..2000 W
Nominal power of PV module
Umpp
1.0 V .. 999 V
Voltage on maximum power point
Impp
0.01 A .. 15.0 A
Current on maximum power point
Uoc
1.0 V .. 999 V
Open circuit voltage of module
Isc
0.01 A .. 15.0 A
Short circuit current of module
NOCT
1.0 °C .. 99.0 °C
Nominal working temperature of PV cell
alfa
-5.00 mA/°C .. 300 mA/°C
Temperature coefficient of Isc
beta
-5.00 V/°C .. -0.001 V/°C
Temperature coefficient of Uoc
gamma
-5.00 %/°C .. 0.999 %/°C
Temperature coefficient of Pmax
Rs
0.01 Ω .. 9.99 Ω
Serial resistance of PV module
