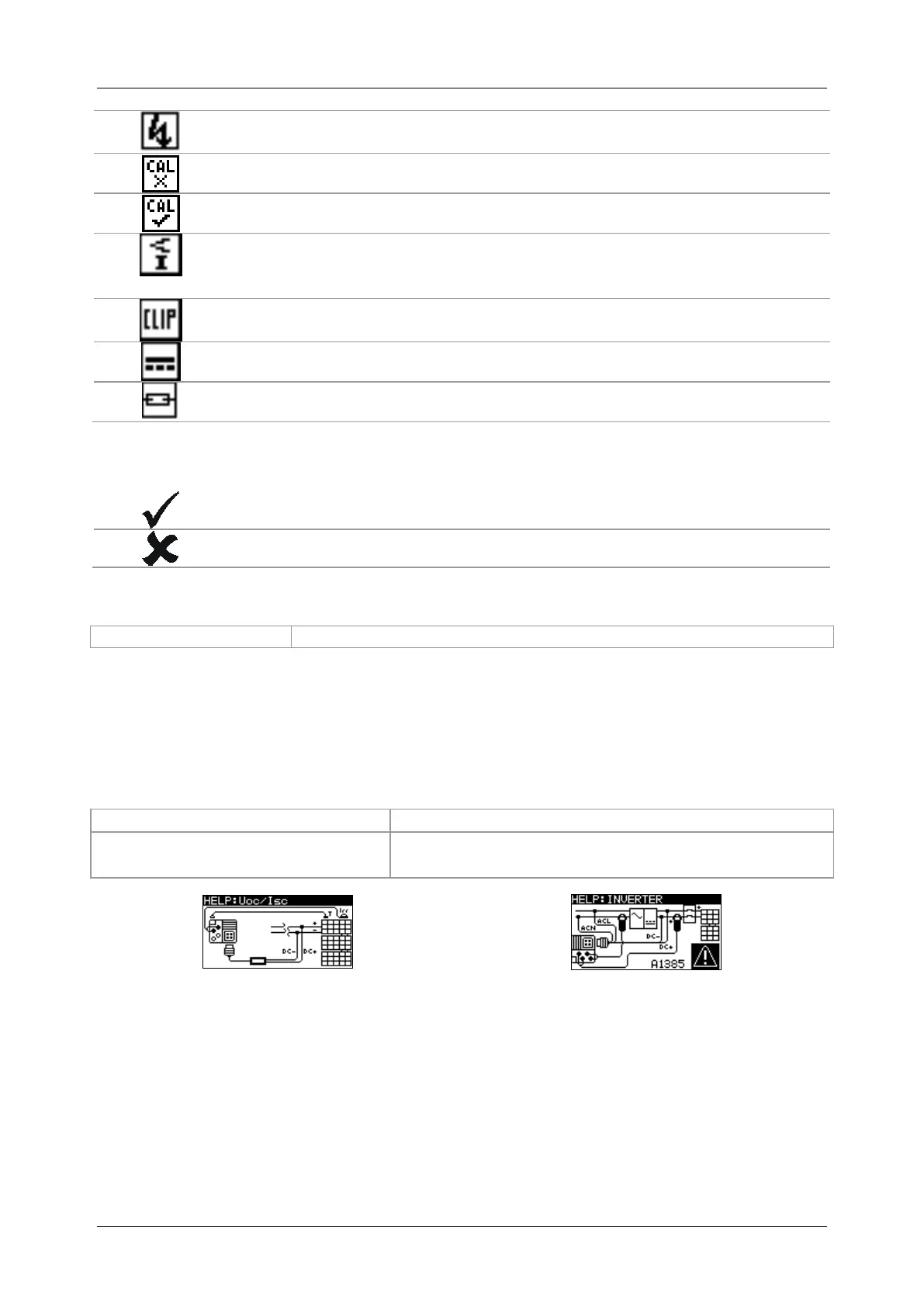

Warning! High voltage is applied to the test terminals.
Test leads resistance in Continuity measurement is not compensated.
Test leads resistance in Continuity measurement is compensated.
Too small current for declared accuracy. Results may be impaired.
Check in Current Clamp Settings if sensitivity of current clamp can be
increased.
Measured signal is out of range (clipped). Results are impaired.
External DC voltage is detected. Measurements are blocked.
4.1.4 Results
Measurement result is inside pre-set limits (PASS).
Measurement result is out of pre-set limits (FAIL).
4.1.5 Help screens
Help menus are available in all functions. The Help menu contains schematic diagrams
for illustrating how to properly connect the instrument to electric installation or PV
system. After selecting the measurement you want to perform, press the HELP key in
order to view the associated Help menu.
Keys in help menu:
Selects next / previous help screen.
ESC/ HELP /
Function selector
Figure 4.1: Examples of help screens
